| Place of Origin: | China |
| Brand Name: | Huawei |
| Model Number: | S5736-S48U4XC |
Description

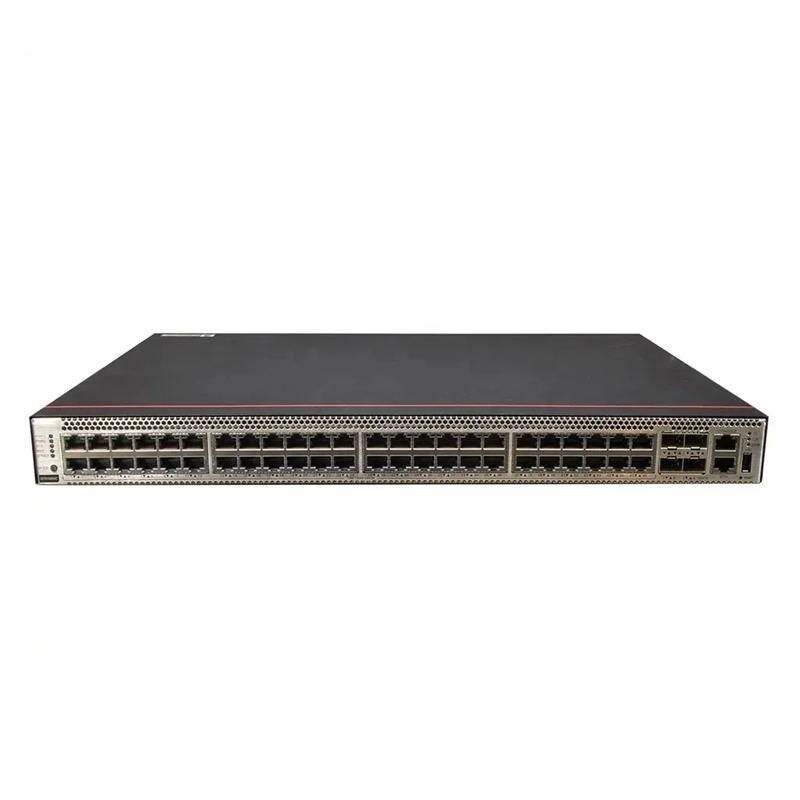

The Huawei CloudEngine S5736-S48U4XC is a 48 port Gigabit Ethernet three-layer PoE++switch, which is the flagship high-power PoE of the 25736-S series. It is designed specifically for powering high-density wireless APs (Wi Fi 6/7), surveillance cameras, and other high-power PD devices.
Pictures
Specification
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 444.0 mm (1.72 in. x 17.40 in. x 17.48 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 150.0 mm x 710.0 mm x 560.0 mm (5.91 in. x 27.95 in. x 22.05 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 5.3 kg (11.68 lb) |
| Weight with packaging [kg(lb)] | 8.3 kg (18.3 lb) |
| Typical power consumption [W] | 75 W |
| Typical heat dissipation [BTU/hour] | 255.91 BTU/hour |
| Maximum power consumption [W] |
|
| Maximum heat dissipation [BTU/hour] |
|
| Static power consumption [W] | 54 W |
| MTBF [years] | 65.32 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 70 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 58 dB(A) |
| Number of card slots | 1 |
| Number of power slots | 2 |
| Number of fans modules | 2 |
| Redundant power supply |
1+1 Pluggable AC and DC power modules can be used together in the same switch. |
| Long-term operating temperature [°C(°F)] | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] |
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:
If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km. |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] | The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules. |
| Memory | 2 GB |
| Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±6 kV |
| Power supply surge protection [kV] |
|
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Pluggable |
| Heat dissipation mode | Heat dissipation with fan, intelligent fan speed adjustment |
| Airflow direction | Air intake from left,front and right, air exhaustion from behind |
| PoE | Supported |
| Certification |
EMC certification Safety certification Manufacturing certification |
