| Place of Origin: | China |
| Brand Name: | Huawei |
| Model Number: | S5731-S48T4X |

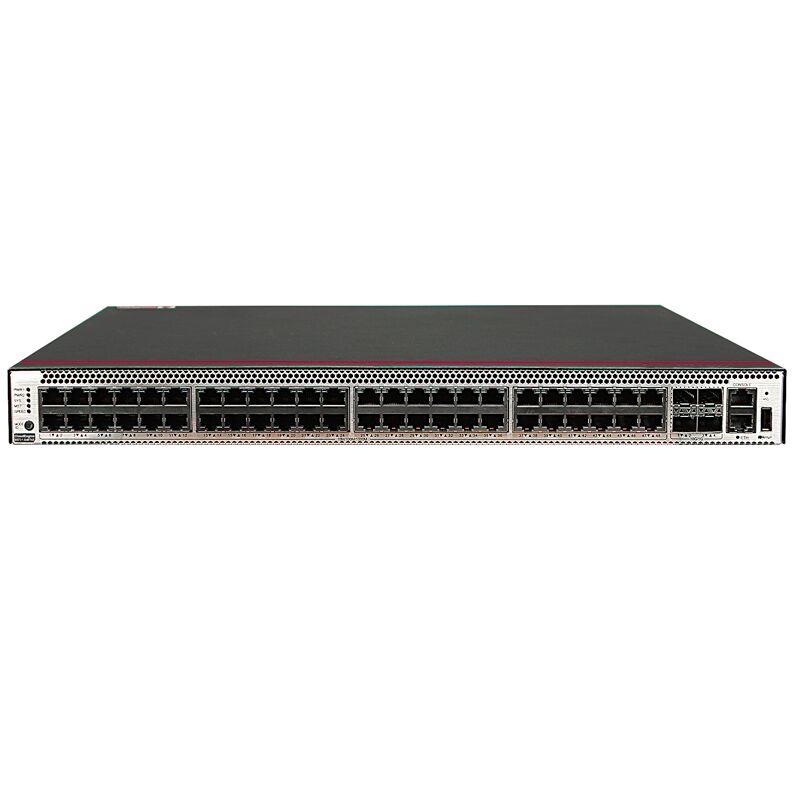

S5731-S48T4X 98011847 48*10/100/1000BASE-T Ports Gigabit Ethernet Switch
Description
Huawei S5731-S48T4X is a new generation of enhanced Ethernet switch in the Huawei S5731-S series, positioned as the access layer of enterprise campuses and data centers or the core layer of small and medium-sized networks.
It is equipped with 48*10/100/1000BASE-T ports,4*10GE SFP+ ports, and supports POE power supply. This Ethernet switch is applied in large offices/open office areas, meeting rooms/lecture halls, medium-sized security monitoring projects, school teaching buildings/dormitories, and enterprise network access layers.
Pictures
Specification
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.64 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.) |
| Chassis height [U] | 1 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 5.01 kg (11.05 lb) |
| Weight with packaging [kg(lb)] | 7.54 kg (16.62 lb) |
| Typical power consumption [W] | 78 W |
| Typical heat dissipation [BTU/hour] | 266.14 BTU/hour |
| Maximum power consumption [W] | 111 W |
| Maximum heat dissipation [BTU/hour] | 378.74 BTU/hour |
| Static power consumption [W] | 50 W |
| MTBF [years] | 73.81 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | 45.62 dB(A) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | 31.94 dB(A) |
| Number of card slots | 0 |
| Number of power slots | 2 |
| Number of fans modules | 2 |
| Redundant power supply |
1+1 Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together. |
| Long-term operating temperature [°C(°F)] | -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] |
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). The operating temperature of the switch is -5°C to +45°C (23°F to 113°F) when 10GE SFP+ optical modules with 40 km or longer transmission distances are used. |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | Pluggable power supply |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] | The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications. |
| Memory | 2 GB |
| Flash memory | 1 GB in total. To view the available flash memory size, run the display version command. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| USB | Supported |
| RTC | Supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±7 kV |
| Power supply surge protection [kV] |
|
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | Built-in |
| Heat dissipation mode | Air cooling for heat dissipation, intelligent fan speed adjustment |
| Airflow direction | Air flows in from the left, right, and front, and flows out from the rear. |
| PoE | Not supported |
| Certification |
EMC certification Safety certification Manufacturing certification |
