| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | S6750-S24T16X8Y2CZ |

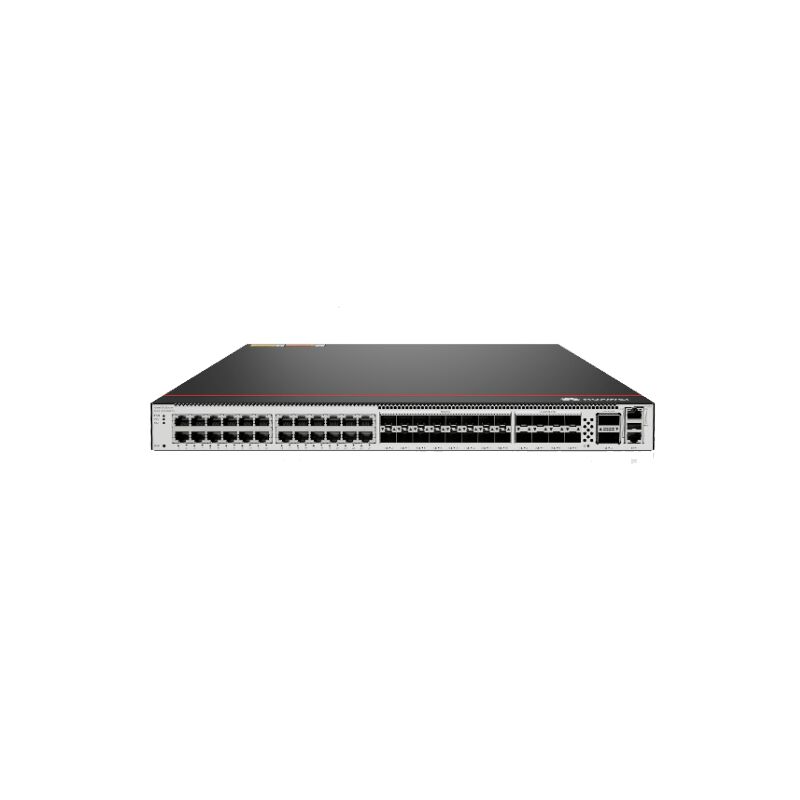

S6750-S16X10Y2CZ Huawei Switch 98012444 Ethernet Switch with 2*100GE QSFP28 Ports
Description
S6750-S16X10Y2CZ Ethernet Switch is a core aggregation layer switch in the Huawei CloudEngine S6750 series, designed specifically for large network environments, supporting multiple interface speeds such as 10G, 25GE, 40GE, and 100GE, with high-density ports and expansion capabilities.
Main technical characteristics
Interface configuration: Provides 16 10G SFP+optical interfaces, 10 25GE SFP28 optical interfaces, and 2 40/100GE QSFP28 optical interfaces, supporting flexible fiber optic connections.
Expansion and Redundancy: The device is equipped with 2 card slots (supporting expansion cards such as HSIC-X08S000) and dual power module slots, supporting 1+1 redundant power configuration to ensure high availability.
Physical specifications: The chassis height is 1U, dimensions are 442mm × 420mm × 43.6mm, weight is approximately 5.2kg (excluding packaging), and typical power consumption is between 109-120W.
Environmental adaptability: The working temperature range is -5 ° C to 45 ° C (long-term), supporting short-term operation from -5 ° C to 50 ° C, suitable for data centers or core enterprise scenarios.
Function and compatibility
This Ethernet Switch supports network functions such as QoS, VLAN, MACsec, and is compatible with Huawei VRP system, enabling traffic shaping, security protection, and network slicing
Pictures
Specification
| Product Model | CloudEngine S6750-S16X8YZ | CloudEngine S6750-S16X10Y2CZ | CloudEngine S6750-S24T16X8Y2CZ |
| Forwarding Performance | 450 Mpps | 450 Mpps | 450 Mpps |
| Switching Capacity2 | 920 Gbps/2.32 Tbps | 1.42 Tbps/2.32 Tbps | 968 Gbps/2.32 Tbps |
| Fixed Ports | 16 x 10GE SFP+ ports + 8 x 25GE SFP28 ports | 16 x 10GE SFP+ ports + 10 x 25GE SFP28 ports + 2 x 40GE/100GE QSFP28 ports | 24 脳 10M/100M/1000M Base-T Ethernet ports + 16 x 10GE SFP+ ports + 8 x 25GE SFP28 ports + 2 x 40GE/100GE QSFP28 ports |
| Expansion Slots | Two expansion slots | ||
| Power Supply Type | 1+1 backup | ||
| MAC Features | MAC address auto-learning and aging | ||
| Static, dynamic, and blackhole MAC address entries | |||
| Packet filtering based on source MAC addresses | |||
| MAC address learning limiting based on ports and VLANs | |||
