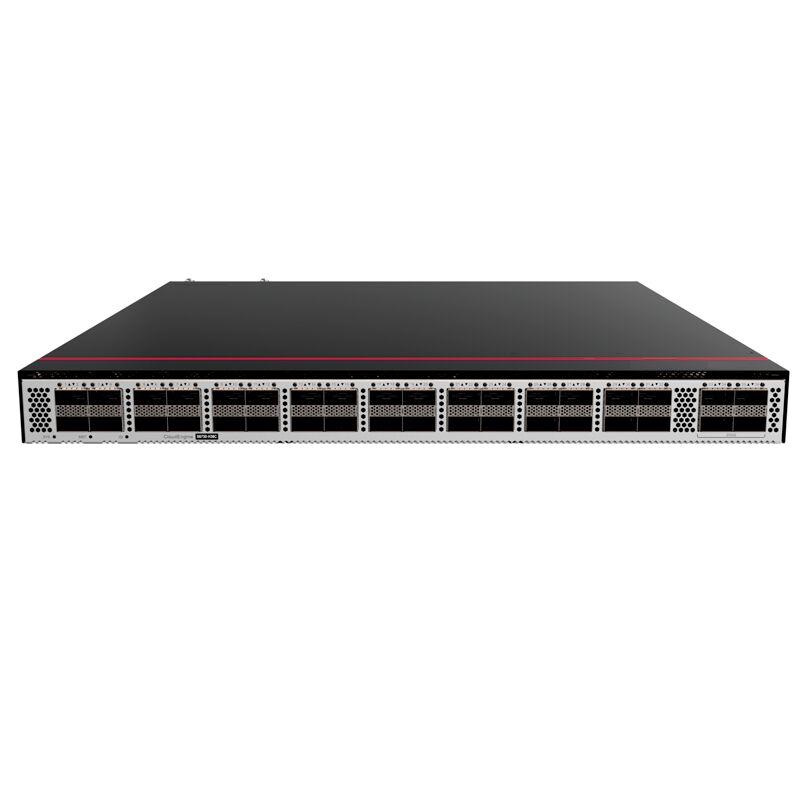

S6750-H36C 02355UEK 36*100GE QSFP28 Ports Ethernet Switch VXLAN

Name: S6750-H36C 02355UEK 36*100GE QSFP28 Ports Ethernet Switch VXLAN
Brand: Chongqing Yujia Technology Co., Ltd.
SKU: S6750-H36C
Price: 5,500.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CQC
Model Number:	S6750-H36C

Detail Information

Place of Origin:

China

Brand Name:

Huawei

Certification:

CQC

Model Number:

S6750-H36C

Product Name:

Huawei Ethernet Switch

100G Optical Interface:

Service:

Remote Technical Service

PoE:

Not Supported

Typical Power Consumption:

537 W

Memory:

8GB

Highlight:

High Light

Highlight:

S6750-H36C 02355UEK

36*100GE QSFP28 Ethernet Switch

Trading Information

Minimum Order Quantity:

1 unit

Price:

5000-6000USD

Packaging Details:

Original brand carton

Delivery Time:

7 work days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

1000 units

Product Description

S6750-H36C 02355UEK 36*100GE QSFP28 Ports Ethernet Switch For Enterprise

Description

Huawei S6750-H36C Ethernet Switch is a high-performance core switch for data centers and campuses, belonging to Huawei's CloudEngine S6700 series. It focuses on high-density 10-gigabit access and some 25G access capabilities. It is mainly targeted at scenarios with extremely high requirements for bandwidth and performance, such as data center server access, campus network core, and cloud computing resource pools.
The Huawei S6750-H36C Ethernet switch is configured with 36*100GE QSFP28 ports

Pictures

S6750-H36C 02355UEK 36*100GE QSFP28 Ports Ethernet Switch VXLAN 0

S6750-H36C 02355UEK 36*100GE QSFP28 Ports Ethernet Switch VXLAN 1

Specification

Chassis material	Metal
Height[mm]	43.6 mm
Depth[mm]	420.0 mm
Wide[mm]	442.0 mm
Chassis height[U]	1
Weight with packaging[kg(lb)]	11 kg (24.25 lb)
Weight without packaging[kg(lb)]	6.72 kg (14.81 lb)
Maximum power consumption[W]	100% traffic under the ATIS standard and dual power modules: 558 W High temperature 45°C (113°F), 100% traffic, long-distance optical module, and dual power modules: 679 W
Typical power consumption[W]	30% traffic under the ATIS standard and dual power modules: 537 W
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Maximum heat dissipation[BTU/hour]	100% traffic under the ATIS standard and dual power modules: 1903.95 High temperature 45°C (113°F), 100% traffic, long-distance optical module, and dual power modules: 2316.82
Typical heat dissipation[BTU/hour]	30% traffic under the ATIS standard and dual power modules: 1832.30
Power supply mode	Pluggable power supply
Input voltage range[V]	- AC input: 90 V AC to 290 V AC; 45–65 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC
Rated input voltage[V]	- AC input: 100 V AC to 240 V AC; 50/60 Hz - High-voltage DC input: 240 V DC - DC input: –48 V DC to –60 V DC
Maximum input current[A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Number of power slots	2
Number of card slots	0
Memory	8 GB
Flash memory	Physical space: 4 GB
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together in the same switch.
Types of fans	Pluggable
Noise at normal temperature (acoustic power)[dB(A)]	57.7
Noise at normal temperature (acoustic pressure)[dB(A)]	57.2
Airflow direction	Air intake from front, air exhaustion from rear (front-to-rear)
Storage temperature[°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating temperature[°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.44 ft.)
Restriction on the operating temperature variation rate[°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).
Long-term operating relative humidity[RH]	5% RH to 95% RH, non-condensing
Storage altitude[m(ft.)]	0-5000 m (0-16404 ft.)
Long-term operating altitude[m(ft.)]	0–5000 m (0–16404 ft.)
MTBF[year]	27.77
MTTR[hour]	2
Availability	> 0.99999
Maximum number of physical ports on the entire device	36
Maximum number of 100GE ports	36
Maximum number of 40GE ports	36
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of GE ports	0
Maximum number of FE ports	0
100G optical interface	36
USB	Supported
Console port	RJ45
Eth Management port	RJ45
Service port surge protection[kV]	-
Power supply surge protection	- Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode - Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
RPS input	Not supported
PoE	Not supported

S6750-H36C 02355UEK 36*100GE QSFP28 Ports Ethernet Switch VXLAN 2
