CloudEngine S6330-H48X6C Enterprise Switch 48*10GE SFP+ ports

Name: CloudEngine S6330-H48X6C Enterprise Switch 48*10GE SFP+ ports
Brand: Chongqing Yujia Technology Co., Ltd.
SKU: S6330-H48X6C
Price: 1,537.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CQC
Model Number:	S6330-H48X6C

Detail Information

Place of Origin:

China

Brand Name:

Huawei

Certification:

CQC

Model Number:

S6330-H48X6C

Product Name:

Enterprise Switch

Description:

48*10GE SFP+ Ports, 6*40GE/100GE QSFP28 Ports

Power Supply:

:Supports Dual 600W AC Power Modules

Switching Capacity:

1.2 Tbit/s

Memory:

4 GB

Console Port:

RJ45

Highlight:

High Light

Highlight:

enterprise switch 48*10ge

48*10ge qsfp switch

10ge qsfp switch

Trading Information

Minimum Order Quantity:

1 unit

Price:

1415-1660 USD

Packaging Details:

Original brand carton

Delivery Time:

7 work days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

1000 units

Product Description

CloudEngine S6330-H48X6C Enterprise Switch 48*10GE SFP+ ports

Description

The S6330-H48X6C is the core Enterprise Switch of Huawei's CloudEngine series, offering 48 10GE SFP+ ports and 6 100GE QSFP28 ports, making it suitable for operator and enterprise-level network deployments.

Core parameters
Port configuration: 48×10GE (SFP+), 6×100GE (QSFP28)
Switching capacity: 1.2 Tbit/s
Power supply: Supports dual 600W AC power modules (separate configuration required)
Fans: Four independent and detachable fans, supporting front and rear air duct designs
Voltage range: AC 100-240V (50/60Hz), maximum supported 90-290V (45-65Hz)

Functional features
Supports the IEEE 802.1d standard and has the functions of MAC address learning, aging and filtering
Supports 4K VLAN, Guest VLAN, Voice VLAN and GVRP protocol
Support VLAN allocation based on MAC addresses

Applicable scenarios
This Enterprise Switch is suitable for scenarios that require high-density 10-gigabit and 100G ports, such as the core layer of data centers, operator backbone networks, or large enterprise campus networks. ‌

Pictures

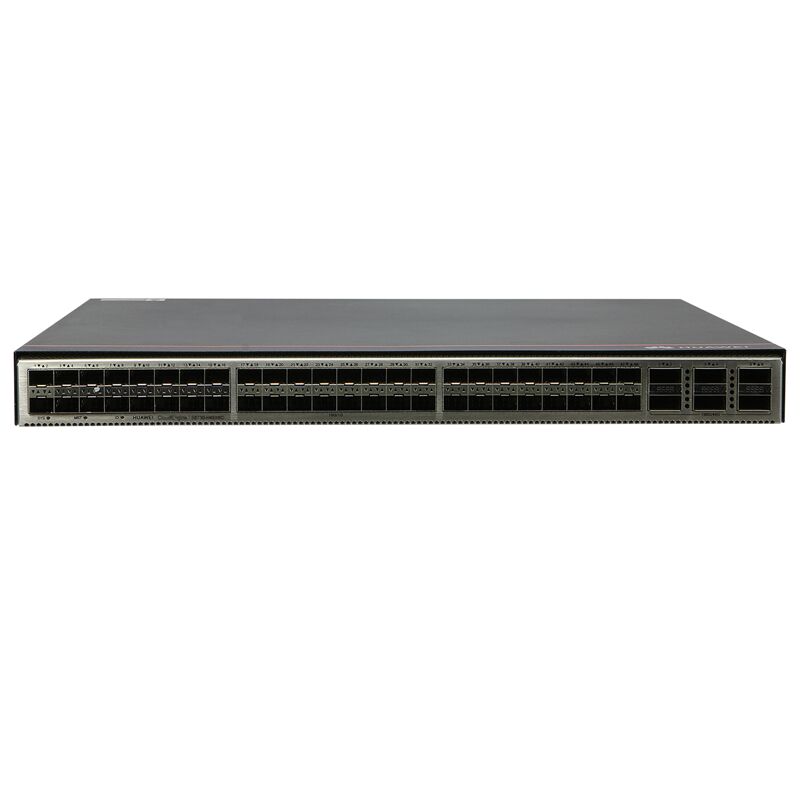

CloudEngine S6330-H48X6C Enterprise Switch 48*10GE SFP+ ports 0

Specification

Chassis material	Metal
Height[mm]	43.6 mm
Depth[mm]	420.0 mm
Wide[mm]	442.0 mm
Chassis height[U]	1
Weight with packaging[kg(lb)]	9.2 (20.28)
Weight without packaging[kg(lb)]	5.84 (12.87)
Maximum power consumption[W]	High temperature 45°C (113°F), 100% traffic, and dual power modules: 207 W High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 291 W
Typical power consumption[W]	165
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Maximum heat dissipation[BTU/hour]	High temperature 45°C (113°F), 100% traffic, and dual power modules: 706.30 High temperature 45°C (113°F), 100% traffic, long-distance optical module, 100% fan speed, and dual power modules: 992.92
Typical heat dissipation[BTU/hour]	563
Power supply mode	Pluggable power supply
Input voltage range[V]	- AC input: 90–290 V AC; 45–65 Hz - High-voltage DC input: 190 V DC to 290 V DC - DC input: -38.4 V DC to -72 V DC
Rated input voltage[V]	- AC input: 100 V AC to 240 V AC; 50/60 Hz - High-voltage DC input: 240 V DC - DC input: –48 V DC to –60 V DC
Maximum input current[A]	The current specifications depend on the pluggable power modules in use. For details, see the related power module specifications.
Number of power slots	2
Number of card slots	0
Memory	4 GB
Flash memory	2 GB in total. To view the available flash memory size, run the display version command.
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together in the same switch.
Types of fans	Pluggable
Noise at normal temperature (acoustic power)[dB(A)]	65
Noise at normal temperature (acoustic pressure)[dB(A)]	52
Airflow direction	Air intake from front, air exhaustion from rear (front-to-rear)
Storage temperature[°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating temperature[°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Restriction on the operating temperature variation rate[°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F). When the QSFP-100G-ER4 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).
Long-term operating relative humidity[RH]	5% RH to 95% RH, non-condensing
Storage altitude[m(ft.)]	0-5000 m (0-16404 ft.)
Long-term operating altitude[m(ft.)]	0–5000 m (0–16404 ft.)
MTBF[year]	56.87
MTTR[hour]	2
Availability	> 0.99999
Maximum number of physical ports on the entire device	54
Maximum number of 100GE ports	6
Maximum number of 40GE ports	6
Maximum number of 25GE ports	0
Maximum number of 10GE ports	48
Maximum number of GE ports	48
Maximum number of FE ports	0
100G optical interface	6
10GE optical interface	48
USB	Supported
Console port	RJ45
Eth Management port	RJ45
Service port surge protection[kV]	-
Power supply surge protection	- AC power module configured: ±6 kV in differential mode, ±6 kV in common mode - DC power module configured: ±2 kV in differential mode, ±4 kV in common mode
RPS input	Not supported
PoE	Not supported

CloudEngine S6330-H48X6C Enterprise Switch 48*10GE SFP+ ports 1
