S5731S-H48HB4XZ-A 02354QXC 4*10GE SFP+ Ports 10g Enterprise Switch

Name: S5731S-H48HB4XZ-A 02354QXC 4*10GE SFP+ Ports 10g Enterprise Switch
Brand: Chongqing Yujia Technology Co., Ltd.
SKU: S5731S-H48HB4XZ-A
Price: 1265.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Model Number:	S5731S-H48HB4XZ-A

Detail Information

Place of Origin:

China

Brand Name:

Huawei

Model Number:

S5731S-H48HB4XZ-A

Product Name:

Ethernet Network Switch

Highlight:

High Light

Highlight:

S5731S-H48HB4XZ-A enterprise switch

10GE SFP+ ports switch

Huawei S5700 10g switch

Trading Information

Minimum Order Quantity:

1 unit

Price:

990-1540USD

Packaging Details:

Original carton

Delivery Time:

7 work days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union

Supply Ability:

1000 units

Product Description

S5731S-H48HB4XZ-A 02354QXC 4*10GE SFP+ Ports 10g Enterprise Switch

Description

The S5731S-H48HB4XZ-A belongs to the S5731S-H series of hybrid optical-electrical multi-rate Layer 3 campus switches, supporting PoE++ remote power delivery over hybrid optical-electrical cables, featuring service expansion slots, and built-in WLAN AC, suitable for scenarios such as fiber-to-the-room, security surveillance, and campus aggregation.

Hardware Specifications
Fixed ports: 16 GE SFP optical ports + 28 1/2.5GE adaptive SFP optical ports + 4 2.5/10GE SFP+ optical/electrical ports, 4 10GE SFP+ uplink optical ports
Switching capacity: 492Gbps/672Gbps
Packet forwarding rate: 125Mpps
MAC Address Table: 288K
Expansion slots: 1 business expansion slot, optionally configurable with 40GE QSFP+, 25GE SFP28, or 10GE SFP+ daughter cards
PoE: Supports PoE++ and requires the use of hybrid optical-electrical cables + hybrid optical-electrical modules for remote power delivery
Power Supply: Hot-swappable power supply, supports 1+1 redundancy backup, compatible with AC/DC
Form factor: 1U rack-mounted, intelligent speed-controlled fan
Operating temperature: -5°C to +45°C

Software features
Routing protocols: Static routing, RIP, OSPF, BGP, IPv4/IPv6 dual stack
VLAN: 4K VLAN, MUX VLAN, Voice VLAN, VLAN Mapping
QoS: 8 queues scheduling, CAR traffic policing, WRED, port rate limiting
Security Features: 802.1X, AAA, ARP / DoS Attack Prevention, Port Security, SSH/HTTPS, Secure Telemetry, Encrypted Traffic Analysis
Virtualization: Supports stacking and VXLAN; built-in AC, with a maximum of 1024 APs manageable
Operations: Telemetry, traffic visualization, log alerts, compatible with iMaster NCE network management

Pictures

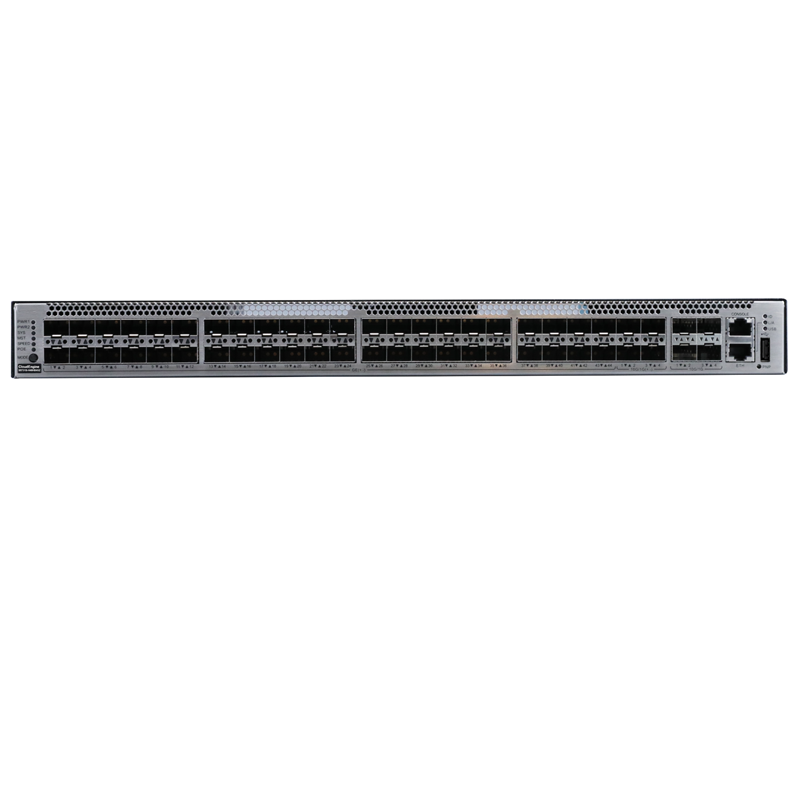

S5731S-H48HB4XZ-A 02354QXC 4*10GE SFP+ Ports 10g Enterprise Switch

Specification

Item	Specification
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.4 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 448.0 mm (1.72 in. x 17.4 in. x 17.64 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185.0 mm x 650.0 mm x 550.0 mm (7.28 in. x 25.59 in. x 21.65 in.)
Chassis height [U]	1 U
Chassis material	Metal
Weight without packaging [kg(lb)]	7.06 kg (15.56 lb)
Weight with packaging [kg(lb)]	8.86 kg (19.53 lb)
Typical power consumption [W]	118 W
Typical heat dissipation [BTU/hour]	402.63 BTU/hour
Maximum power consumption [W]	Without PoE: 151 W (without cards) Full PoE load: 1927 W (PoE: 1745 W, without cards)
Maximum heat dissipation [BTU/hour]	Without PoE: 515.23 (without cards) Full PoE load: 6575.12 (without cards)
Static power consumption [W]	66 W
MTBF [years]	53.82 years
Availability	> 0.99999
Noise at normal temperature (acoustic power) [dB(A)]	Dual-AC 600 W, 70% load: 57.77 dBA Dual-AC 1000 W, 70% load: 63.78 dBA Dual-DC 1000 W, 70% load: 62.38 dBA Dual-AC 600 W, 100% load: 63.78 dBA Dual-AC 1000 W, 100% load: 68.07 dBA Dual-DC 1000 W, 100% load: 66.26 dBA
Number of card slots	1
Number of power slots	2
Number of fans modules	2
Redundant power supply	1+1 Pluggable AC and DC power modules can be used together in the same switch, but power modules that use natural heat dissipation and power modules that use air cooling cannot be used together.
Long-term operating temperature [°C(°F)]	–5°C to +45°C (23°F to 113°F) at an altitude of 0 to 1800 m (0 to 5905.51 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)
Restriction on the operating temperature variation rate [°C(°F)]	When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met: The operating temperature exceeds 45°C (113°F) for a maximum of 96 consecutive hours in a year. The total time when the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours. The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year. If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur. Devices cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	0–5000 m (0–16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Power supply mode	Pluggable power supply
Rated input voltage [V]	AC input: 100 V AC to 240 V AC; 50/60 Hz High-voltage DC input: 240 V DC DC input: –48 V DC to –60 V DC
Input voltage range [V]	AC input: 90 V AC to 290 V AC; 45–65 Hz High-voltage DC input: 190 V DC to 290 V DC DC input: -38.4 V DC to -72 V DC
Maximum input current [A]	The current specifications are related to the pluggable power module. For details, see Pluggable Power Modules.
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
Console port	RJ45
Eth Management port	RJ45
USB	Not supported
RTC	Supported
RPS input	Not supported
Service port surge protection [kV]	-
Power supply surge protection [kV]	Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode
Ingress protection level (dustproof/waterproof)	IP20
Types of fans	Built-in
Heat dissipation mode	Air cooling for heat dissipation, intelligent fan speed adjustment
Airflow direction	Air intake from left, front, and right and air exhaust from rear
PoE	Supported
Certification	EMC certification (The EMC radiated emission complies with standards requirements, although it may vary according to installation of optical modules or copper modules.) Safety certification Manufacturing certification

S5731S-H48HB4XZ-A 02354QXC 4*10GE SFP+ Ports 10g Enterprise Switch
