LSS7SRUHA100 LSS7SRUHX100 LSS7SRUHX101 S7700 main control unit H (X1)

LSS7SRUHA100 LSS7SRUHX100 LSS7SRUHX101 S7700 main control unit H (X1)

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CQC
Model Number: LSS7SRUHA100 LSS7SRUHX100 LSS7SRUHX101
Detail Information
Place of Origin:
China
Brand Name:
Huawei
Certification:
CQC
Model Number:
LSS7SRUHA100 LSS7SRUHX100 LSS7SRUHX101
Product Name:
Main Control Unit H
Compatible Chassis:
S7703/S7706/S7712
Hot-swappable:
Support
Weight:
3.05 Kg
Part Number:
03033BTD 03032YFH 03034HXQ
Power Consumption:
161W
Highlight:

High Light

Highlight:

Huawei S7700 main control unit

,

S7700 main control unit H

,

Huawei S9700 main control unit

Trading Information
Minimum Order Quantity:
1 unit
Price:
1264-1525 USD
Packaging Details:
Original brand carton
Delivery Time:
7 work days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
1000 units
Product Description

ES0D00SRUA00  ES0D00SRUB00 03030MQS 03030MQR S7706/S7712 Main Control Unit

LSS7SRUHA100 LSS7SRUHX100 LSS7SRUHX101 S7700 main control unit H (X1)


Description


The LSS7SRUHA100 standard SRU controller is a basic unit designed for core campus and conventional data centers, meeting basic forwarding and protocol processing needs.

The LSS7SRUHX100 enhanced high-performance SRU controller features higher hardware specifications, resulting in superior forwarding performance, table capacity, and protocol processing capabilities.

The LSS7SRUHX101HX100 is an upgraded version with minor hardware modifications and firmware optimizations. It is compatible with the same slot, replaces the LSS7SRUHA100, offers consistent performance, and is a production batch/material upgrade.

Pictures

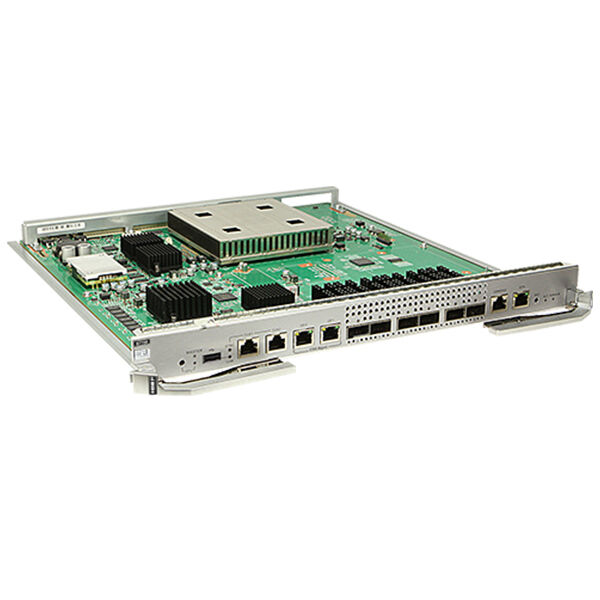

LSS7SRUHA100 LSS7SRUHX100 LSS7SRUHX101 S7700 main control unit H (X1)  0


Specification



comparative dimension LSS7SRHAA100 (A1 type) LSS7SRUHX100 (X1 type) LSS7SRUHX101 (X1 Improved Type)
Model suffix HA100 (A1) HX100 (X1) HX101 (X1)
Initial supported version V200R019C00 V200R019C10 V200R021C01
supporting relationship No special restrictions Only supports specified new types of cards (X6E/S series, etc.) Only supports specified new types of cards (X6E/S series, etc.), but can be mixed with HX100 for insertion
power consumption Maximum 161W (including daughter cards) Maximum 126W Maximum 105W (typical 103W)
weight About 3.4 kg About 3.43 kg About 3.2 kg

LSS7SRUHA100 LSS7SRUHX100 LSS7SRUHX101 S7700 main control unit H (X1)  1
