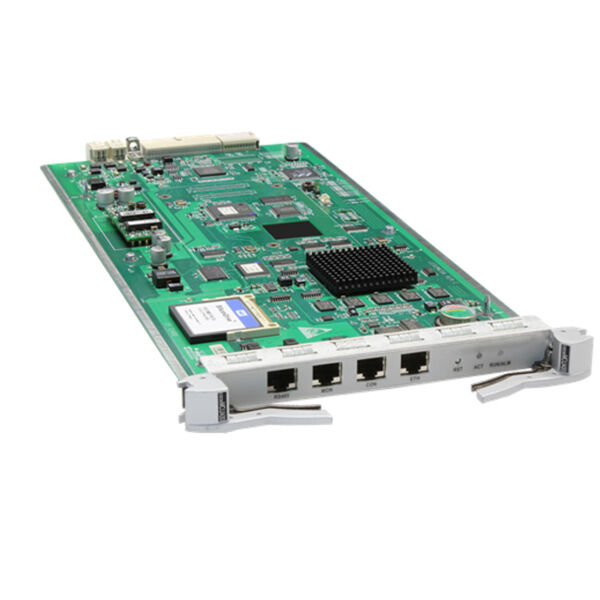

Both of these boards are dedicated main control processing units for Hua wei S7703 switches, also known as "engines." Their core differences lie in processing performance, memory size, and compatible software versions.

Simply put, the ES1D2MCUD000 is an upgraded version of the ES0D00MCUA00, offering significantly enhanced performance.

Performance Generation Differences: Memory and Processing Capacity

ES0D00MCUA00: As an early Type A controller, it has 512MB of memory, sufficient for basic routing, switching, device management, and system monitoring needs.

ES1D2MCUD000: This is an enhanced Type D controller designed to address increasingly complex network requirements. Its 2GB of memory means it can handle larger routing tables, support more concurrent user authentication, and handle more complex service features (such as larger MAC address entries).

Applicable Scenarios: Choose Newer for Newer Projects

ES0D00MCUA00: Suitable for expanding older projects or replacing spare parts with relatively low software version requirements, or for pure Layer 2 networking environments with low performance requirements.

ES1D2MCUD000: As a newer model, it supports the updated V200R013 system version. Since Huawei typically focuses its new feature development on higher-version software, the D-type board is more suitable for new projects, better supporting newer technologies such as IPv6, MPLS VPN, and VXLAN, ensuring network evolution needs for the next 5-8 years.

Redundancy, Reliability, and Maintenance

Both support 1+1 hot backup. If two identical boards (must be the same model) are configured in the two main control slots of the S7703, the backup board will automatically take over when the primary board fails, achieving zero-interruption service switching.

Both support hot-swapping, facilitating maintenance without service interruption (Note: A primary/backup switchover command must be executed before operating the primary board).
