| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | AirEngine 5573-23H |
Description

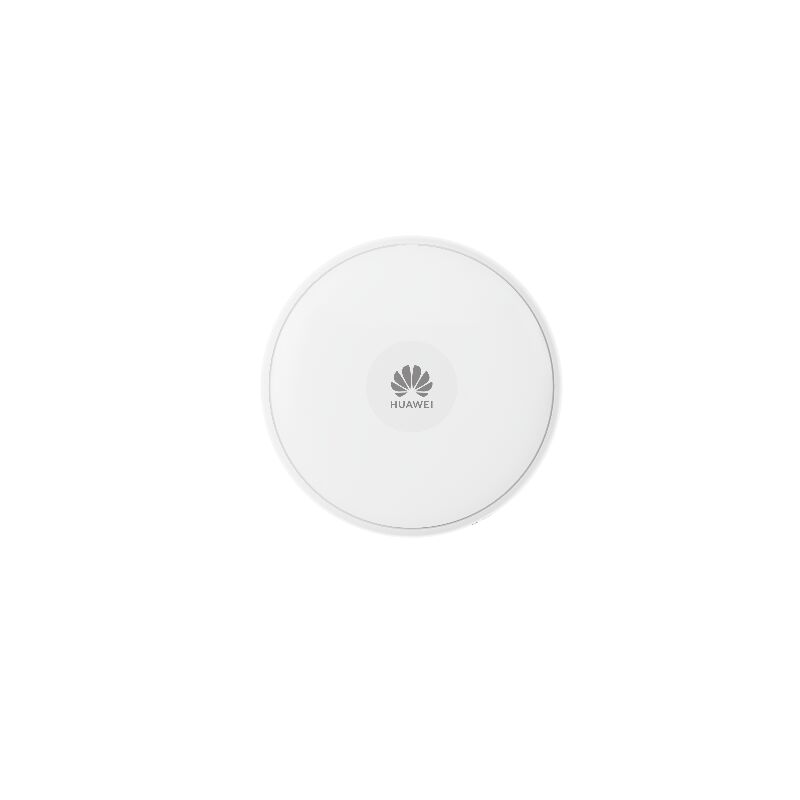

The AirEngine 5573-23H is a dual-band, quad-stream Wi-Fi 7 (802.11be) ceiling-mounted access point (AP) in Huawei's AirEngine 5500 series. Its core feature is long-distance deployment using a hybrid 2.5G BIDI fiber optic cable, employing a 2.4GHz (2×2) + 5GHz (2×2) dual-radio architecture with a peak speed of 3.57Gbps. It is suitable for small and medium-sized enterprises' offices, universities, medical facilities, and other low-density indoor scenarios requiring long-distance cabling and all-optical networking, balancing deployment flexibility with IoT scalability.
Pictures
Specification
| parameter item | Specification Description |
| wireless standard | Wi-Fi 7 (802.11be) |
| operating frequency band | 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) |
| spatial flow number | 4 items |
| Machine speed | Up to 3.57 Gbps |
| Antenna type | Built in smart antenna |
| antenna gain | 2.4 GHz: Peak 4 dBi/chain, combined 1 dBi; 5 GHz: peak 5 dBi/chain, combined 3 dBi |
| Maximum transmission power | 2.4 GHz: 23 dBm (combined power); 5 GHz: 23 dBm (combined power) |
| uplink interface | 1 x 2.5G/GE optical port (LC, built-in BIDI optical module) |
| downlink interface | 1 x GE electrical port (RJ45) |
| extended interface | 1 x USB Type A (currently unavailable, to be supported by future software upgrades) |
| Bluetooth | BLE 5.2, Used for zero configuration deployment and local operations and maintenance |
| power supply method | 802.3af/at PoE (Power over Ethernet) |
| Maximum Power Consumption | 14.04 W |
| Installation method | Ceiling mounted, wall mounted, T-shaped keel |
| physical dimensions | Diameter 180 mm x Height 35 mm |
| weight | 0.52 kg |
| Operating Temperature | -10 ° C to 50 ° C |
Our Service
100% Low Price Guarantee:
networks-equipments.com provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are brand new and factory-sealed.For added assurance, each unit can be fully tested and verified to be in perfect working condition by engineer—upon your request.
100% Money Back Guarantee:
If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.
Professional Technical Support:
networks-equipments.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.
FAQ
1. Why choose us?
We are the leading Chinese supplier of quality networking equipments and we have over 10 years experience in this field.
2. What's the quality of the products?
All the items are brand original.
3. How to place an order?
After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T,Wester,Union, Alibaba Orders, Alipy and etc.
4. How about the shipment?
We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation. We are also able to deliver goods to your forwarder in China if you need.
5. How about the warranty?
1 Year warranty.
6. Do you test all your goods?
A: Yes, we have professional engineer to test all devices before shipping.
7. What if machine not work during warranty?
Technical support avaliable,if can't fixed, replacement or return with full refund acceptable.
8. How about your main products?
Our product lines include Switches, Routers, Server, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
9. What brand of products do you offer?
A: We can provide all common brands in the market
