| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | AirEngine 6776-X6ETH |
Description
AirEngine 6776-X6ETH is a Wi Fi 7 (802.11be) tri band/dual band switchable, external antenna, 10 Gigabit indoor high-density AP with 8 streams. It supports flexible switching between tri band (2.4G+5G+6G) or dual band (2.4G+5G) and is equipped with 10GE optical and dual electrical ports. It is designed specifically for medium to high-density scenarios that require high bandwidth, flexible coverage, and 10 Gigabit networking
Introduction to Core Selling Points
1. Flexible switching between tri band/dual band, balancing speed and coverage
2. External antenna+10 Gigabit port, flexible networking and controllable coverage
3. Multi AP collaboration+AI roaming, stable experience in high-density scenarios
4. Minimalist operation and maintenance+green energy saving+enterprise security

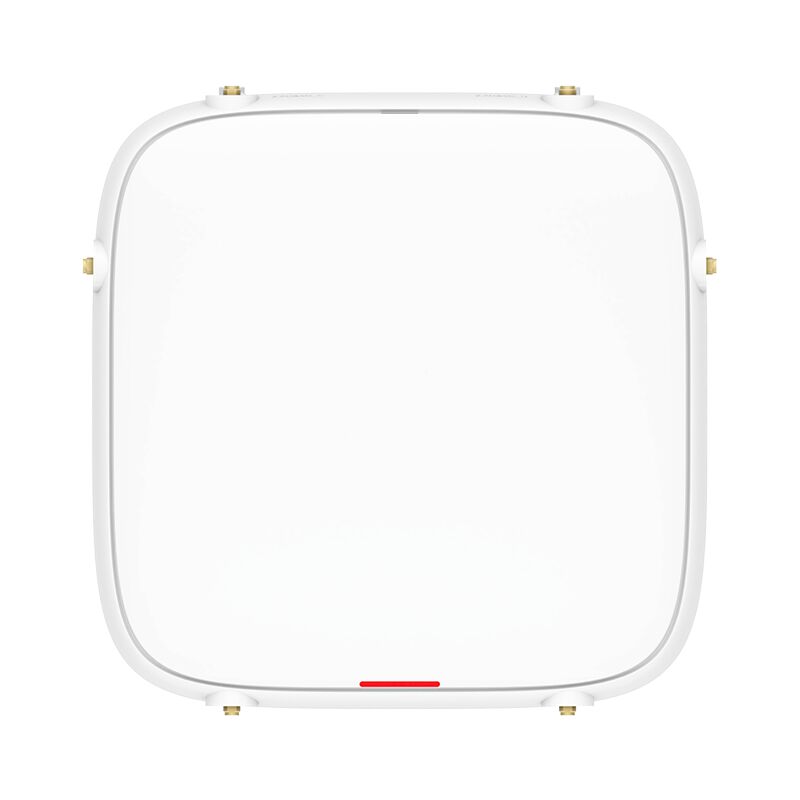

Pictures
Specification
| parameter item | Specifications |
| Product Model | AirEngine 6776-X6ETH |
| wireless standard | Wi‑Fi 7(802.11be), Compatible with 802.11a/b/g/n/ac/ax |
| Frequency band/mode | Triple frequency mode: 2.4GHz (2 × 2)+5GHz (4 × 4)+6GHz (2 × 2); |
| Dual band mode: 2.4GHz (4x4)+5GHz (4x4) | |
| space flow | 8 streams (tri band: 2+4+2; dual band: 4+4) |
| Machine speed | 12.21Gbps (Tri band: 2.4G 689Mbps+5G 5.76Gbps+6G 5.76Gbps) |
| Maximum number of users | 1800 (single RF ≤ 600) |
| Fixed port | 1 × 10GE SFP+, 1 × 5GE (PoE In), 1 × GE (PoE In), built-in BLE 5.2 |
| antenna | External antenna (requires external omnidirectional/directional antenna) |
| power supply | 802.3bt/at/af PoE,DC 43.2–57.6V, Dual PoE hot backup |
| Maximum Power Consumption | About 30W |
| Size | 220mm×220mm×61mm；2.0kg |
| Operating Temperature | -10℃～+50℃ |
| management | Cloud management, local AC management SNMP,Web,CLI |
Our Service
100% Low Price Guarantee:
networks-equipments.com provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are brand new and factory-sealed.For added assurance, each unit can be fully tested and verified to be in perfect working condition by engineer—upon your request.
100% Money Back Guarantee:
If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.
Professional Technical Support:
networks-equipments.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.
FAQ
1. Why choose us?
We are the leading Chinese supplier of quality networking equipments and we have over 10 years experience in this field.
2. What's the quality of the products?
All the items are brand original.
3. How to place an order?
After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T,Wester,Union, Alibaba Orders, Alipy and etc.
4. How about the shipment?
We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation. We are also able to deliver goods to your forwarder in China if you need.
5. How about the warranty?
1 Year warranty.
6. Do you test all your goods?
A: Yes, we have professional engineer to test all devices before shipping.
7. What if machine not work during warranty?
Technical support avaliable,if can't fixed, replacement or return with full refund acceptable.
8. How about your main products?
Our product lines include Switches, Routers, Server, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
9. What brand of products do you offer?
A: We can provide all common brands in the market
