| Place of Origin: | China |
| Brand Name: | Huawei |
| Model Number: | S5731I-L8T2SN |
Description

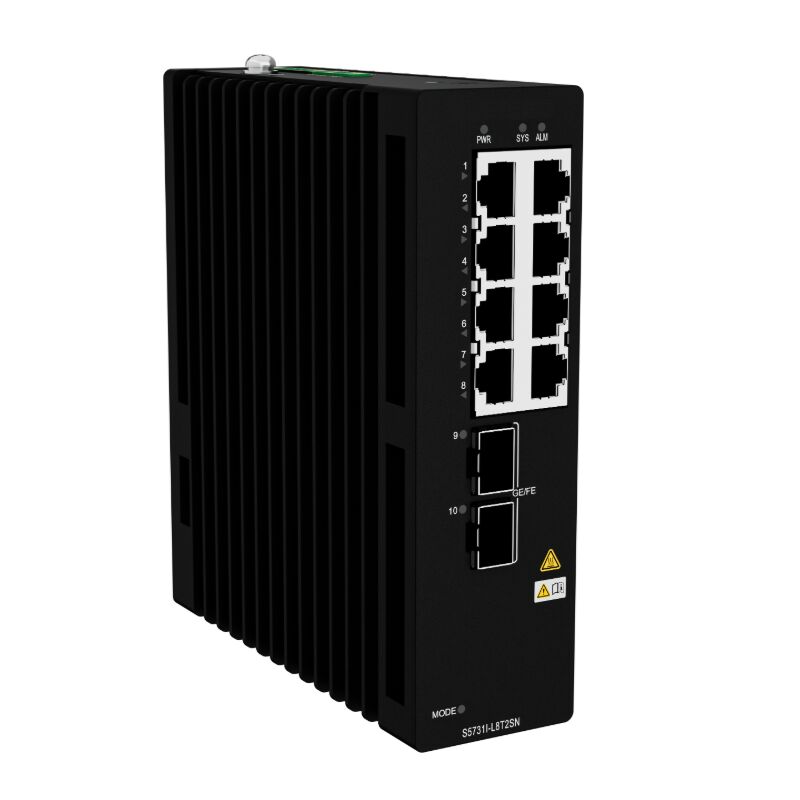

The S5731I-L8T2SN is a Huawei DIN rail mounted two-layer industrial grade gigabit switch designed specifically for harsh industrial scenarios such as power, transportation, and intelligent manufacturing. It features wide temperature range, high protection, and strong lightning protection, meeting the stable access requirements of industrial networks
Pictures
Specification
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 150.0 mm x 44.0 mm x 133.0 mm (5.91 in. x 1.73 in. x 5.24 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 162.0 mm x 44.0 mm x 142.0 mm (6.38 in. x 1.73 in. x 5.59 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 113.0 mm x 235.0 mm x 188.0 mm (4.45 in. x 9.25 in. x 7.40 in.) |
| Chassis height [U] | 3.65 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 0.975 kg (2.15 lb) |
| Weight with packaging [kg(lb)] | 1.34 kg (2.95 lb) |
| Typical power consumption [W] | 9.72 W |
| Typical heat dissipation [BTU/hour] | 33.17 BTU/hour |
| Maximum power consumption [W] |
12.6 W @ 60 V 10.44 W @ 12 V |
| Maximum heat dissipation [BTU/hour] |
42.99 @ 60 V 35.62 @ 12 V |
| Static power consumption [W] | 5.04 W |
| MTBF [years] | 152.027 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans) |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans) |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Redundant power supply | Not supported |
| Long-term operating temperature [°C(°F)] |
0–1800 m (0–5906 ft.) altitude, industrial optical modules:
|
| Restriction on the operating temperature variation rate [°C(°F)] | When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Storage temperature [°C(°F)] | -40°C to +85°C (-40°F to +185°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode | DC external |
| Rated input voltage [V] | DC input: 12 V DC to 48 V DC |
| Input voltage range [V] | DC input: 9.6 V DC to 60 V DC |
| Maximum input current [A] | 2.5 A |
| Flash memory | Physical space: 16 MB |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±6 kV |
| Power supply surge protection [kV] | DC power: ±2 kV in common mode and ±1 kV in differential mode |
| Ingress protection level (dustproof/waterproof) | IP40 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | - |
| PoE | Not supported |
| Certification |
EMC certification Safety certification Manufacturing certification |
