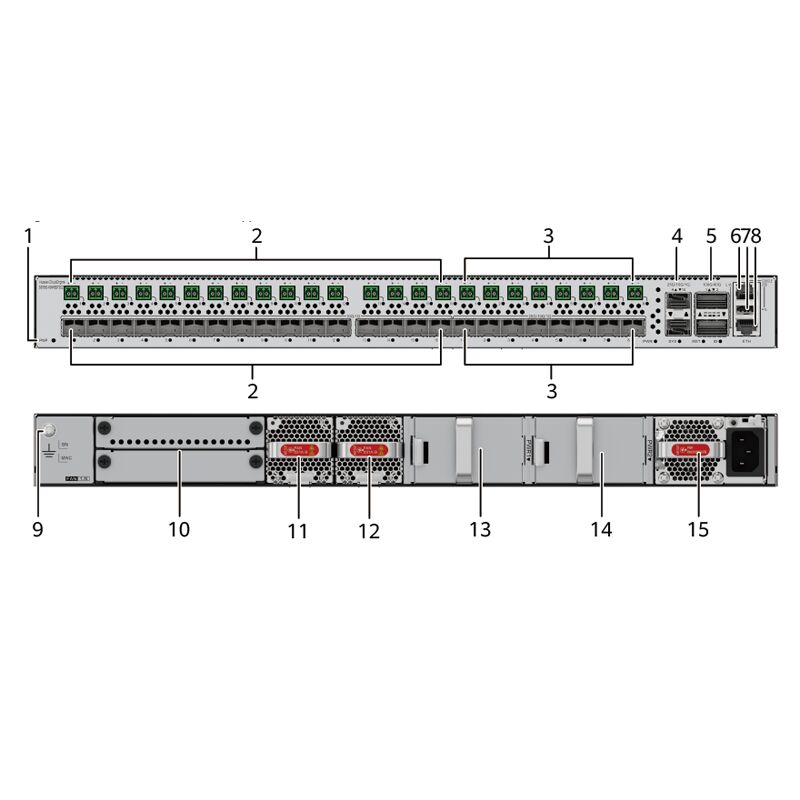

Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.)

Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 454.0 mm (1.72 in. x 17.4 in. x 17.87 in.)

30% traffic under the ATIS standard and dual power modules:

• 138 W (with two 1000 W AC power modules)
• 145 W (with two 1000 W DC power modules)

30% traffic under the ATIS standard and dual power modules:

• 471 (with two 1000 W AC power modules)
• 495 (with two 1000 W DC power modules)

100% traffic under the ATIS standard and dual power modules:

• 152 W (with two 1000 W AC power modules)
• 158 W (with two 1000 W DC power modules)

Full PoE load and three power modules:

• 2566 W (PoE: 2268 W, with three 1000 W AC power modules)
• 2648 W (PoE: 2268 W, with three 1000 W DC power modules)

100% traffic under the ATIS standard and dual power modules:

• 519 (with two 1000 W AC power modules)
• 539 (with two 1000 W DC power modules)

Full PoE load and three power modules:

• 8759 (PoE: 7738, with three 1000 W AC power modules)
• 9039 (PoE: 7738, with three 1000 W DC power modules)

1+1+1

Pluggable AC and DC power modules can be used together in the same switch.

When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

The device can work for a short period of time when the operating temperature is beyond the normal range, but the following conditions must be met:

• The operating temperature exceeds 45°C (113°F) for no more than 96 consecutive hours in a year.
• The total time in which the operating temperature exceeds 45°C (113°F) in a year is less than or equal to 360 hours.
• The number of times the operating temperature exceeds 45°C (113°F) is less than or equal to 15 in one year.

If any of the preceding conditions is not met, the device may be damaged or an unknown error may occur.

The device cannot start when the temperature is lower than 0°C (32°F). The maximum transmission distance of an optical module used for short-term operation cannot exceed 10 km.

When the QSFP-100G-ER4 or QSFP-100G-LR1 optical module is used, the operating temperature ranges from -5°C to +40°C (23°F to 104°F).

• AC input: 100 V AC to 130 V AC, 200 V AC to 240 V AC; 50/60 Hz
• High-voltage DC input: 240 V DC
• DC input: –48 V DC to –60 V DC

• AC input: 90 V AC to 290 V AC; 45 Hz to 66 Hz
• High-voltage DC input: 190 V DC to 290 V DC
• DC input: -38.4 V DC to -72 V DC

• Configured with AC power modules: ±6 kV in differential mode and ±6 kV in common mode
• Configured with DC power modules: ±2 kV in differential mode and ±4 kV in common mode

EMC certification

Safety certification

Manufacturing certification
