| Place of Origin: | China |
| Brand Name: | Huawei |
| Model Number: | S5735-S48P4X |

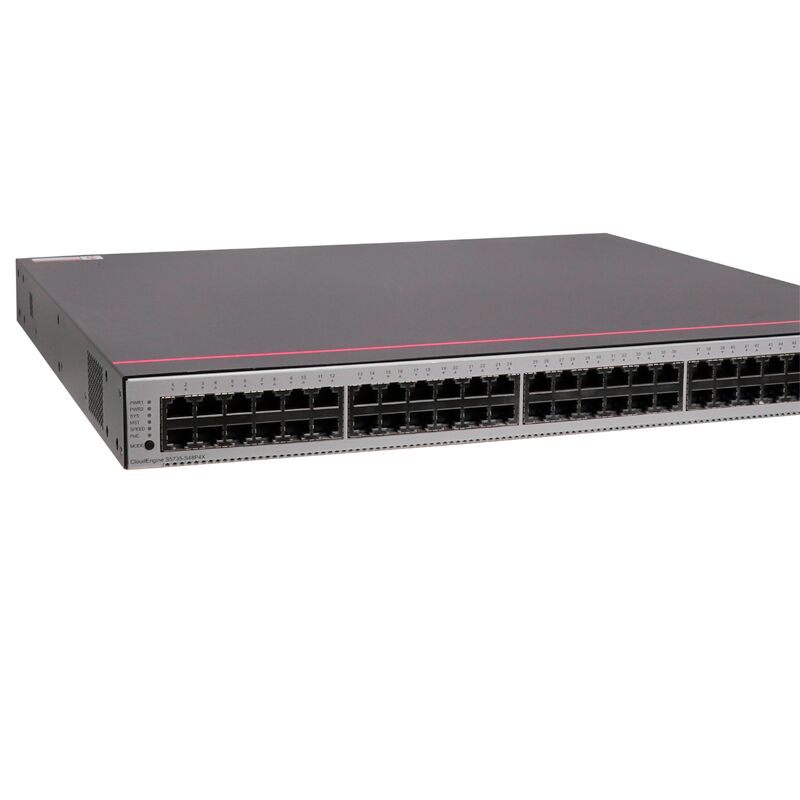

S5735-S48P4X 98010943 10/100/1000BASE-T Ports Enterprise 10g Access Switch
Description
Huawei S5735-S48P4X is a new generation of enhanced Ethernet switch in the Huawei S5735-S series, positioned as the access layer of enterprise campuses and data centers or the core layer of small and medium-sized networks.
It is equipped with 48*10/100/1000BASE-T ports,4*10GE SFP+ ports, and supports POE power supply. This Enterprise switch is applied in large offices/open office areas, meeting rooms/lecture halls, medium-sized security monitoring projects, school teaching buildings/dormitories, and enterprise network access layers.
Pictures
Specification
|
Item |
Description |
|---|---|
|
Memory (RAM) |
1 GB |
|
Flash |
512 MB in total. To view the available flash memory size, run the display version command. |
|
Mean time between failures (MTBF) |
54.88 years |
|
Availability |
> 0.99999 |
|
Service port surge protection |
Common mode: ±7 kV |
|
Power supply surge protection |
|
|
Dimensions (H x W x D) |
|
|
Weight (with packaging) |
7.64 kg (16.84 lb) |
|
Stack ports |
Any 10/100/1000BASE-T ports or 10GE SFP+ ports (applicable in V200R019C10 and later versions) |
|
RTC |
Supported |
|
RPS |
Not supported |
|
PoE |
Supported |
|
Rated voltage range |
|
|
Maximum voltage range |
|
|
Maximum power consumption (100% throughput, full speed of fans) |
|
|
Typical power consumption (30% of traffic load)
|
59 W |
|
Operating temperature |
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The switch cannot be started when the ambient temperature is lower than 0°C (32°F). |
|
Short-term operating temperature |
-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) NOTE:
When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met:
The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km. |
|
Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
|
Noise under normal temperature (27°C, sound power) |
< 58.9 dB(A) |
|
Relative humidity |
5% to 95%, noncondensing |
|
Operating altitude |
0-5000 m (0-16404 ft.) |
|
Certification |
|
|
Part number |
98010943 |
