| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | AirEngine 9501-L |
AirEngine 9501-L 02355XGD 2*10GE Optical Ports WLAN Access Controllers
Description
Huawei AirEngine 9501-L is a small-capacity box access controller (AC) designed for small- and medium-sized enterprises. This AC can manage a maximum of 512 access points (APs). It can also function as a GE switch to implement wired and wireless access. This AC features high scalability and offers users considerable flexibility in configuring the number of managed APs. In combination with Huawei's full series of APs, this AC can be used to construct small- and medium-sized campus networks, enterprise office networks, wireless Metropolitan Area Networks (MANs), and hotspot networks.

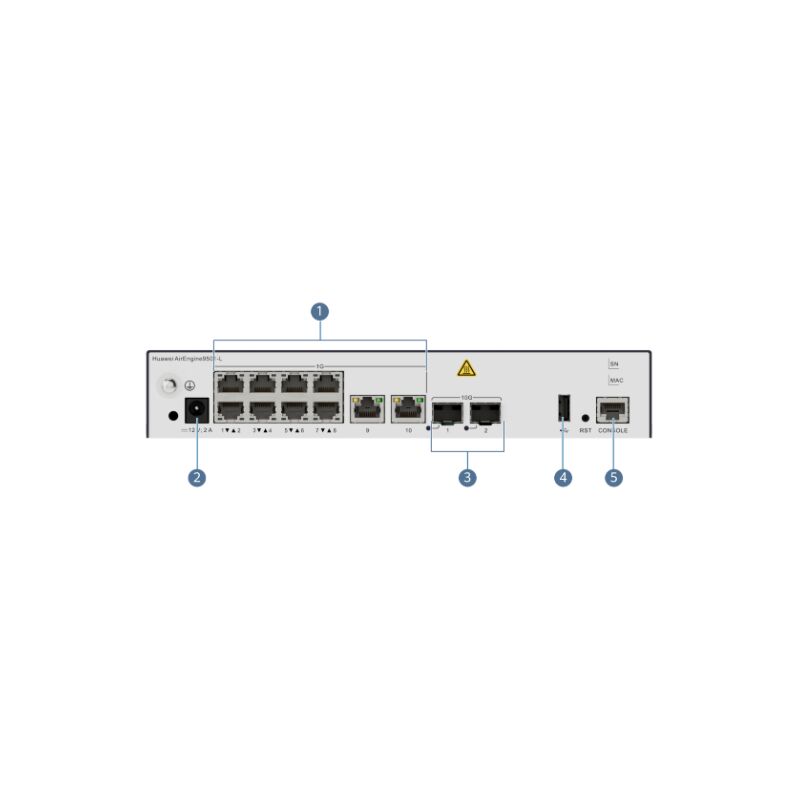

Pictures
Specification
| Item | Specification |
|---|---|
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic: 43.6 mm x 250 mm x 210 mm (1.72 in. x 9.84 in. x 8.27 in.) Maximum: 43.6 mm x 250 mm x 215 mm (1.72 in. x 9.84 in. x 8.46 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 110 mm x 465 mm x 335 mm (4.33 in. x 18.31 in. x 13.19 in.) |
| Weight without packaging [kg(lb)] | 1.82 kg (4.01 lb) |
| Weight with packaging [kg(lb)] | 2.55 kg (5.62 lb) |
| Storage | Nand FLASH 1GB |
| Console port | RJ45 |
| Maximum power consumption [W] | 25.06 W |
| Maximum heat dissipation [BTU/hour] | 85.50 BTU/hour |
| Power supply mode | DC power adapter |
| Service port surge protection | 6 kV in common mode |
| Types of fans | None |
| Maximum number of physical ports on the entire device | 2 x 10GE (SFP+) + 10 x GE (RJ45) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Ground | Ground |
| USB | 1 x USB 2.0 (host type A) port |
| MTBF [year] | 50 year |
| MTTR [hour] | 2 hour |
