| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | AirEngine 9700-M |

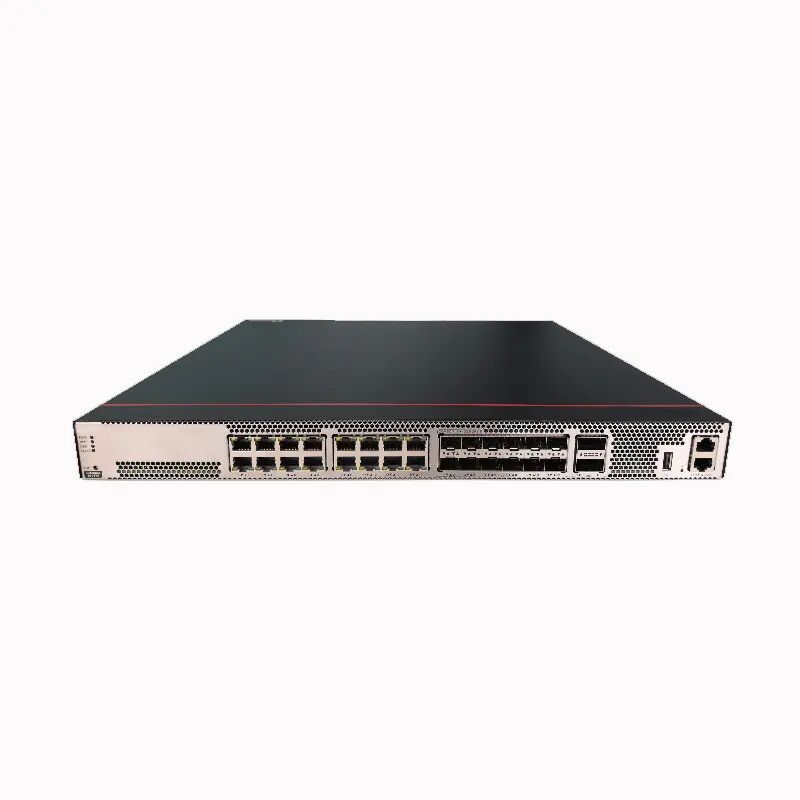

AirEngine 9700-M 02352RDR 12*10GE SFP+ Ports WLAN Access Controllers
Description
Pictures
Specification
| Item | Specification |
|---|---|
| Installation Type | Rack |
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic: 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum: 43.6 mm x 442 mm x 444 mm (1.72 in. x 17.40 in. x 17.48 in.) |
| Weight without packaging [kg(lb)] | 5.65 kg (12.46 lb) |
| Storage | NAND Flash 2 GB |
| Console port | RJ45 |
| Eth Management port | RJ45 GE |
| Maximum power consumption [W] | 122.3 W |
| Maximum heat dissipation [BTU/hour] | 417.26 BTU/hour |
| Power supply mode | Pluggable power supply |
| Service port surge protection | 6 kV in common mode |
| Types of fans | Pluggable |
| Number of fan modules | 3 |
| Maximum number of physical ports on the entire device | 2 x 40GE (QSFP+) + 12 x 10GE (SFP+) + 16 x GE (RJ45) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Noise at normal temperature (acoustic power) [dB(A)] | ≤ 72 dBA |
| Ground | Ground |
| USB | 1 x USB 2.0 (host type A) port |
| MTBF [year] | 41 year |
| MTTR [hour] | 2 hour |
