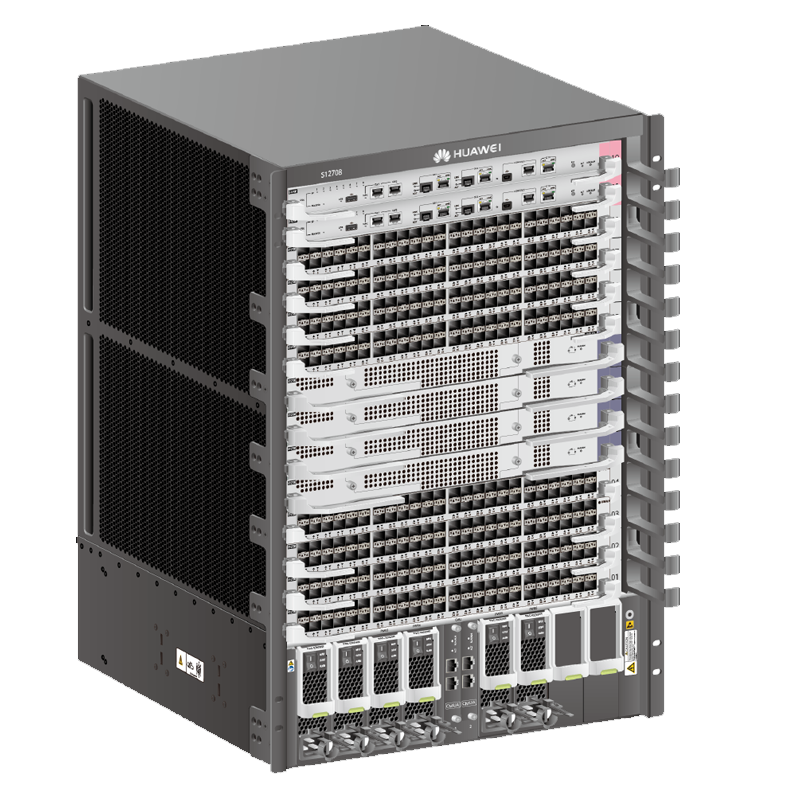

CloudEngine S12708 2114178 Enterprise Core Switch 2*Main Control Board Slots
Description
Huawei S12708 is an enterprise-level layer 3 switch launched by Huawei Technologies Co., LTD., mainly applied in data exchange and network management scenarios of enterprises and government agencies. This device adopts a modular architecture, supporting 8 service slots, with a maximum switching capacity of 60Tbps and a packet forwarding rate of 6240Mpps/9120Mpps, meeting the requirements of high-throughput data transmission.
The hardware configuration includes dual main control boards, three switching network boards and dual redundant power supplies. It supports hot-swappable design and virtualization functions, and can integrate multiple physical devices into a logical unit. It provides 48 Gigabit electrical/optical ports and 4 SFP+ interfaces, and is compatible with the expansion of various service board cards. The device integrates security features such as SSL/IPSec VPN and 802.1x authentication, and supports cross-vendor protocol compatibility adjustments
Pictures
![]()
Specification
|
Specifications |
S12704 |
S12708 |
S12712 |
|
Switching Capacity |
4.88/10.96 Tbit/s |
12.32/27.04 Tbit/s |
17.44/37.28 Tbit/s |
|
Packet Forwarding Rate |
3,120/4,560 Mpps |
6,240/9,120 Mpps |
9,120/12,960 Mpps |
|
MPU Slots |
2 |
2 |
2 |
|
SFU Slots |
2 |
4 |
4 |
|
Service Card Slots |
4 |
8 |
12 |
|
CSS2 |
1+N MPU backup in a cluster Up to 1.92 Tbit/s cluster bandwidth, 4 us inter-chassis transmission latency |
||
|
Wireless Network Management |
Native AC AP access control, AP region management, and AP profile management Radio profile management, unified static configuration, and centralized dynamic management Basic WLAN services, QoS, security, and user management |
||
|
User Management |
Unified user management 802.1x, MAC, and Portal authentication Charging based on traffic volume and online duration User authorization based on user groups, domains, and time ranges |
||
|
iPCA |
Adds marks on service packets in order to measure the number of lost packets and packet loss ratios in real time with zero payload Measures the number of lost packets and packet loss ratios at the network and device levels on Layer 2 and Layer 3 networks |
||
|
SVF |
Up to 4K clients (access switches and APs) virtualized into a single device 2-level AS structure Unified management on HW and non-HW devices |
||
|
OpenFlow |
Supports multiple controllers. Supports multi-level flow tables. Supports group tables. Supports meter tables. Confirms to Open Flow 1.3 standards. |
||
|
Interoperability |
VLAN-based Spanning Tree (VBST) (interoperating with PVST, PVST+, and RPVST) Link-type Negotiation Protocol (LNP) (similar to DTP) VLAN Central Management Protocol (VCMP) (similar to VTP) For detailed interoperability certifications and test reports, click HERE |
||
![]()
