| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | NE20E-S2E |
Description
NE20E-S Series Universal Service Routers are high-end network products developed for transportation, finance, electricity, government, education, and enterprise networks. They serve as aggregation nodes for IP backbone networks, core nodes on small and medium enterprise networks, edge nodes on campus networks, and access nodes on small and medium education networks.

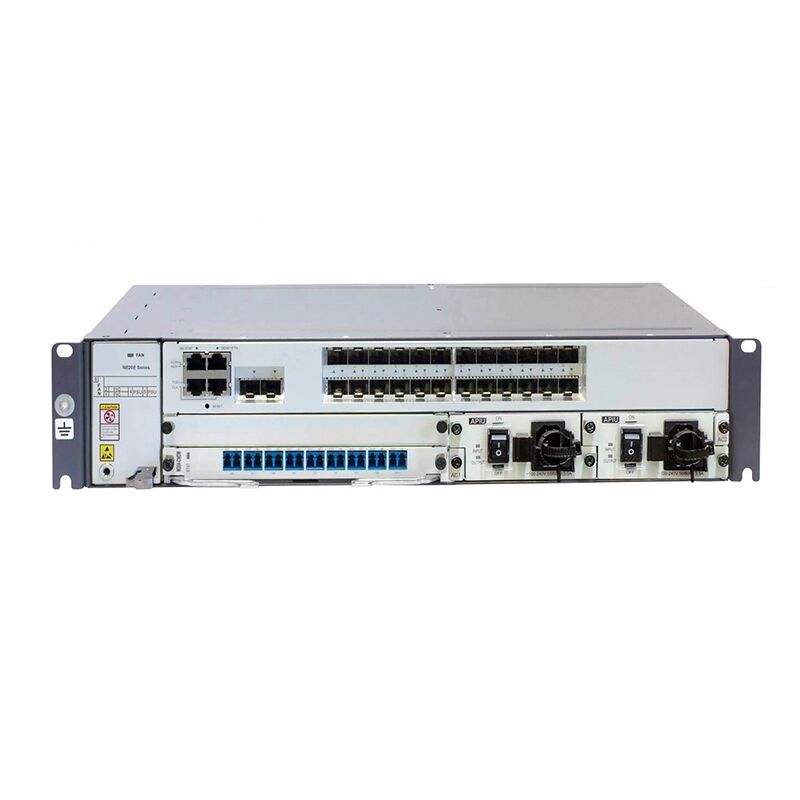

Pictures
Specification
| Item | Specification |
|---|---|
| Cabinet installation standards | ETSI 21-inch; IEC 19-inch |
| Dimensions without packaging (H x W x D) [mm(in.)] | 88.1 mm x 442 mm x 220 mm (3.47 in. x 17.4 in. x 8.66 in.) |
| Chassis height [U] | 2 U |
| Weight without packaging [kg(lb)] | 8 kg (17.64 lb) |
| Weight without packaging (full configuration) [kg(lb)] |
DC: 9.4 kg (20.7 lb) AC: 10.4 kg (22.9 lb) |
| Typical power consumption (with configuration) [W] |
DC: 195 W AC: 219 W |
| Typical heat dissipation (with configuration) [BTU/hour] |
DC: 632.7 BTU/hour AC: 710.5 BTU/hour |
| MTBF [year] | 86 year |
| MTTR [hour] | 2 hour |
| Availability | 0.999999614 |
| CPU | 4-core 1.2 GHz |
| SDRAM | 4 G |
| Flash memory | 32 MB |
| Power supply mode |
|
| Rated input voltage [V] |
DC: -48 V/-60 V AC: 200 V to 240 V/100 V to 127 V HVDC: 240 V |
| Input voltage range [V] |
DC: -48 V/-72 V AC: 90 V to 264 V HVDC: 188 Vdc to 290 Vdc |
| Maximum input current [A] |
DC: 10.5 A AC: 2.8 A HVDC: 4.8 A |
| Maximum input cable size [mm²] |
DC: 6mm^2. 4mm^2 (1-30 meters) recommended AC: 1.5mm^2 |
| Front-end circuit breaker/fuse [A] |
DC: ≥16 A AC: ≥3 A HVDC: ≥6.3 A |
| Heat dissipation mode | Air cooling |
| Airflow direction | From left to right |
| Noise at normal temperature (acoustic power) [dB(A)] | < 72 dB (meeting the ETSI 72 dBA standard) |
| Number of slots | 6 |
| Number of service board slots | 2 |
| Switching capacity | 160 Gbit/s |
| Redundant MPUs | Fixed-configuration, not pluggable |
| Redundant network processing units | Fixed-configuration, not pluggable |
| Redundant power supply | 1+1 |
| Redundant fans | If a single fan fails, the system can still work for a short period of time at an ambient temperature of 40°C. |
| Long-term operating temperature [°C(°F)] |
DC: -5°C(23°F) to 65°C(149°F) AC: 0°C(33.8°F) to 45°C(113°F) |
| Short-term operating temperature [°C(°F)] | AC:-5°C(23°F) to 55°C(131°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | ≤ 30°C/hour (54°F/hour) |
| Storage temperature [°C(°F)] | -40°C(-40°F) to 70°C(158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 90% RH, non-condensing |
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | ≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device decreases by 1°C [33.8°F] each time the altitude increases by 220 m [721.78 ft.].) |
| Storage altitude [m(ft.)] | < 5000 m(< 16404.2 ft.) |
