| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | NE20E-S16 |
Description
NE20E-S Series Universal Service Routers are high-end network products developed for transportation, finance, electricity, government, education, and enterprise networks. They serve as aggregation nodes for IP backbone networks, core nodes on small and medium enterprise networks, edge nodes on campus networks, and access nodes on small and medium education networks.

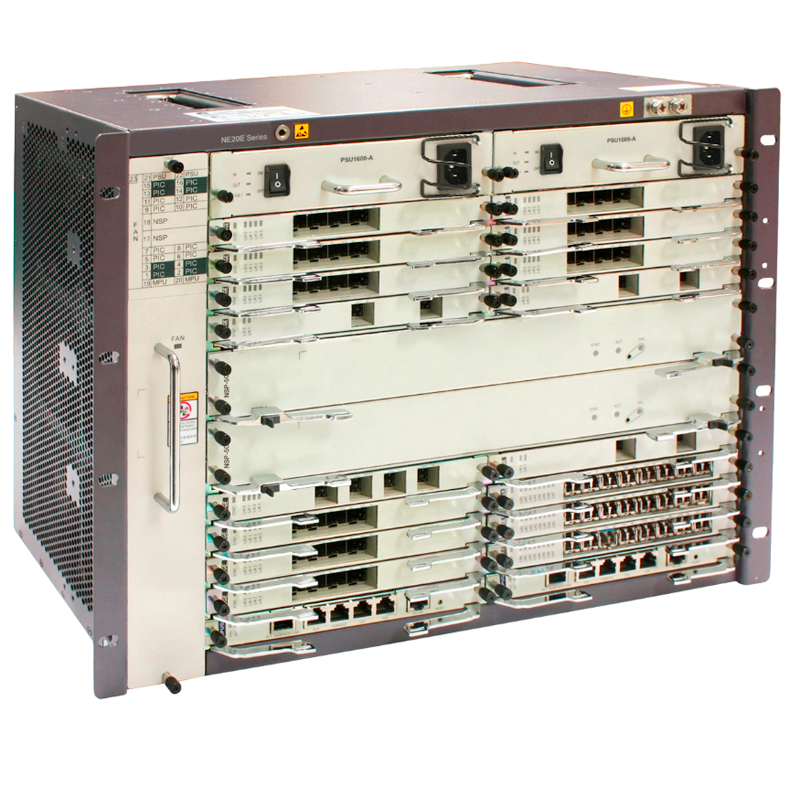

Pictures
Specification
| Item | Specification |
|---|---|
| Cabinet installation standards | ETSI 21-inch; IEC 19-inch |
| Dimensions without packaging (H x W x D) [mm(in.)] | 353 mm x 220 mm x 442 mm (13.90 in. x 8.66 in. x 17.40 in.) |
| Chassis height [U] | 8 U |
| Weight without packaging [kg(lb)] | 14 kg (30.86 lb) |
| Weight without packaging (full configuration) [kg(lb)] |
[NSP-240] DC:32.6 kg (71.9 lb) [NSP-240] AC:34.5 kg (76.1 lb) [NSP-480] DC:35.4 kg (78.0 lb) [NSP-480] AC:37.3 kg (82.2 lb) [NSP-1T] DC:39.6 kg (87.3 lb) [NSP-1T] AC:41.5 kg (91.5 lb) |
| Typical power consumption (with configuration) [W] |
DC:696 W(NSP-240) AC:706 W(NSP-240) DC:1072 W(NSP-480) AC:1112 W(NSP-480) DC:1197 W(NSP-1T) AC:1252 W(NSP-1T) |
| Typical heat dissipation (with configuration) [BTU/hour] |
DC:2259.1 BTU/hour(NSP-240) AC:2290.6 BTU/hour(NSP-240) DC:3478 BTU/hour(NSP-480) AC:3607.8 BTU/hour(NSP-480) DC:3883.6 BTU/hour(NSP-1T) AC:4062.1 BTU/hour(NSP-1T) |
| MTBF [year] | 138.61 year |
| MTTR [hour] | 0.5 hour |
| Availability | 0.999999588 |
| Flash memory |
MPU:16 MB NSP-50: 64 MB NSP-120:64 MB NSP-240:64 MB NSP-A:64 MB NSP_B:64 MB NSP-C:128 MB NSP-D:128 MB |
| Power supply mode |
|
| Rated input voltage [V] |
DC: –48 V/–60 V AC: PSU1600: 200 V–240 V/100 V–127 V dual-live wire PSU2400: 200 V–240 V/100 V–127 V dual-live wire/240 V HVDC |
| Input voltage range [V] |
DC: –40 V to –72 V AC: PSU1600: 180 V–264 V PSU2400: 90 V AC–290 V AC//190 V DC–400 V DC |
| Maximum input current [A] |
DC: 50 A AC: PSU1600: 10 A PSU2400: 16 A |
| Maximum input cable size [mm²] |
DC: 25 mm^2; recommended: 10 mm^2 (1–15 m); recommended: 16 mm^2 (15–25 m); recommended: 25 mm^2 (25–35 m) AC: PSU1600: C13 cable in standard configuration PSU2400: C19 cable in standard configuration |
| Front-end circuit breaker/fuse [A] |
DC: ≥63 A AC: PSU1600: ≥10 A PSU2400: ≥16 A |
| Heat dissipation mode | Air cooling |
| Airflow direction | From left to right |
| Noise at normal temperature (acoustic power) [dB(A)] | < 72 dB (meeting the ETSI 72 dBA standard) |
| Number of slots | 23 |
| Number of service board slots | 16 |
| Switching capacity |
100 Gbit/s(NSP-50) 240 Gbit/s(NSP-120) 480 Gbit/s(NSP-A/B) 480 Gbit/s(NSP-240) 960 Gbit/s(NSP-C) 2 Tbit/s(NSP-D) |
| Redundant MPUs | 1:1 |
| Redundant network processing units | 1:1 |
| Redundant power supply | 1+1 |
| Redundant fans | If a single fan fails, the system can still work for a short period of time at an ambient temperature of 40°C. |
| Long-term operating temperature [°C(°F)] | 0°C(33.8°F) to 45°C(113°F) |
| Short-term operating temperature [°C(°F)] | -5°C(23°F) to 55°C(131°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | ≤ 30°C/hour (54°F/hour) |
| Storage temperature [°C(°F)] | -40°C(-40°F) to 70°C(158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, non-condensing |
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | ≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device decreases by 1°C [33.8°F] each time the altitude increases by 220 m [721.78 ft.].) |
| Storage altitude [m(ft.)] | < 5000 m(< 16404.2 ft.) |
