CloudEngine CE8865-4C 02355RTC Huawei Network Switch With 4 Subcard Slots

Name: CloudEngine CE8865-4C 02355RTC Huawei Network Switch With 4 Subcard Slots
Brand: Chongqing Yujia Technology Co., Ltd.
SKU: CE8865-4C
Price: 33,750.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CQC
Model Number:	CE8865-4C

Detail Information

Place of Origin:

China

Brand Name:

Huawei

Certification:

CQC

Model Number:

CE8865-4C

Product Name:

Huawei Network Switch

Part Number:

02355RTA 02355RTB 02355RTC 02356FKL 02356FKP

Downlink Service Interface:

4 Subcard Slots

Types Of Fans:

Pluggable

Feature:

XLAN/EVPN,Telemetry

Number Of Fan Modules:

Highlight:

High Light

Highlight:

CloudEngine CE8865-4C

02355RTC Huawei Network Switch

CE8865-4C Huawei Network Switch

Trading Information

Minimum Order Quantity:

1 unit

Price:

25000-42500 USD

Packaging Details:

Original brand carton

Delivery Time:

7 work days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

1000 units

Product Description

CloudEngine CE8865-4C 02355RTC Huawei Network Switch With 4 Subcard Slots

Description

CE8865-4C is a high-end, high-density, modular frame-type Huawei Network Switch in CloudEngine 8800 series. It is positioned in the Spine/Core layer of data centers or the core/aggregation layer of large-scale campus networks, and is a flagship product for building ultra-large-scale, high-performance, and highly elastic data center networks and campus networks.

The CE8865-4C is an independent 4-slot chassis. It needs to be used in conjunction with the following components:

Master Control Board (MPU) : It provides management, control planes and partial switching capacity.

Line card (LPU) : It provides service ports, allowing users to select line cards of different speeds and densities according to their needs.

Power module (PSU) and FAN module (FAN) : All key components support N+M redundancy to ensure ultra-high reliability.

this Huawei Network Switch has extremely high port density and flexibility:

By inserting different service line cards, a single CE8865-4C can provide a full range of interfaces from 10GbE, 25GbE, 40GbE, 100GbE to 400GbE.

Pictures

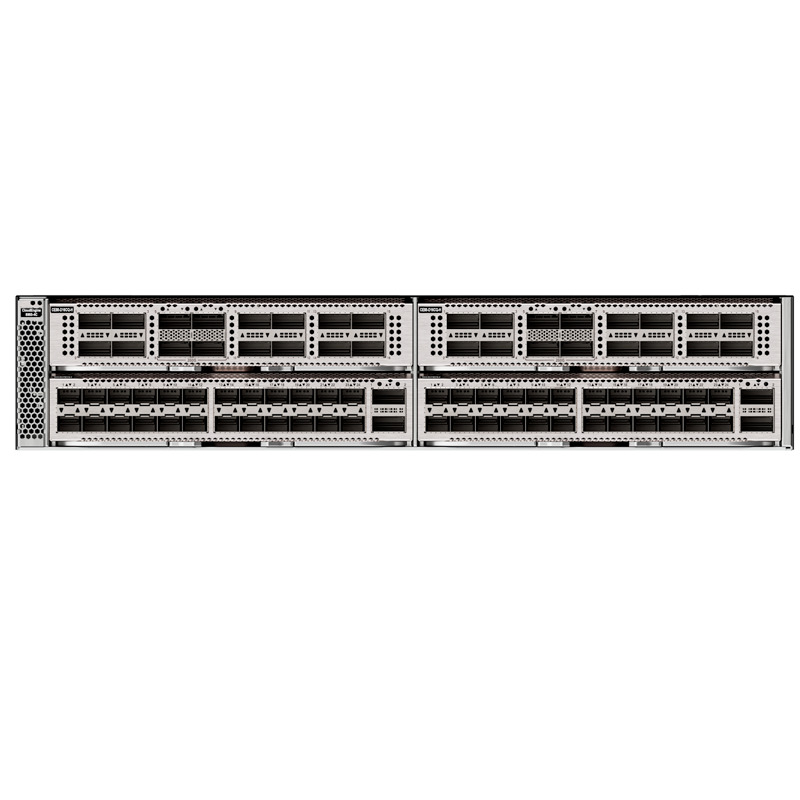

CloudEngine CE8865-4C 02355RTC Huawei Network Switch With 4 Subcard Slots 0

Specification

Static heat dissipation[BTU/hour]	Configured with four CE88-D16CQ-H cards: 1941.4 BTU/hour Configured with four CE88-D10CQ-H cards: 1013.4 BTU/hour Configured with four CE88-D8YS4DQ-H cards: 1013.4 BTU/hour Configured with four CE88-D24YS2CQ-H cards: 941.7 BTU/hour Configured with four CE88-D24T2CQ-H cards: 1126 BTU/hour
Power supply mode	AC pluggable,DC pluggable,HVDC pluggable
Rated input voltage[V]	- 2000 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC - 1800 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC - 2000 W high-voltage DC power module: 336 V DC - 2200 W DC power module: –48 V DC to –60 V DC; +48 V DC
Input voltage range[V]	- 2000 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 66 Hz; DC: 190 V DC to 290 V DC - 1800 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 66 Hz; DC: 190 V DC to 290 V DC - 2000 W high-voltage DC power module: 260 V DC to 400 V DC - 2200 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC
Maximum input current[A]	- 2000 W AC&240 V DC power module: 10 A (100 V AC to 240 V AC); 10 A (240 V DC) - 1800 W AC&240 V DC power module: 10 A (100 V AC to 240 V AC); 10 A (240 V DC) - 2000 W high-voltage DC power module: 10 A (336 V DC) - 2200 W DC power module: 63 A (–48 V DC to –60 V DC); 63 A (+48 V DC)
Rated output power[W]	- 2000 W AC&240 V DC power module: 2000 W (220 V AC to 240 V AC&240 V DC), 1800 W (200 V AC to 220 V AC), 900 W (100 V AC to 130 V AC) - 1800 W AC&240 V DC power module: 1800 W (200 V AC to 240 V AC&240 V DC), 900 W (100 V AC to 130 V AC) - 2000 W high-voltage DC power module: 2000 W - 2200 W DC power module: 2200 W
Memory	DRAM: 8 GB
NOR Flash	64 MB x 2
SSD Flash	4GB SSD
USB	The USB port can connect to a USB flash drive for deployment, log backup, configuration file transfer, and file upgrade. The USB port can only connect to a USB flash drive that complies with USB 2.0. Note: This port is available in V300R025C00 and later versions. USB flash drives from different vendors differ in compatibility and drivers. If a USB flash drive cannot be used, replace it with another one from a mainstream vendor.
Console port	RJ45
Downlink Service interface	For details, see the port description of each card.
Uplink Service interface	For details, see the port description of each card.
Service port supporting the stack function	Reserved function. This function is not enabled.
RTC	Supported
Switching capacity[bps,bit/s]	For more details, see the datasheet/brochure or contact product sales personnel. You can obtain the datasheet/brochure from the following link: https://e.huawei.com/en/products/switches/data-center-switches
Redundant fans	The device supports 2+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Redundant power supply	1+1 backup
Number of power modules	2
Power supply surge protection	- AC: 6 kV in common mode and 6 kV in differential mode - HVDC: 4 kV in common mode and 2 kV in differential mode - DC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fan modules	3
Airflow direction	Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
Storage temperature[°C(°F)]	-40ºC to +70ºC (-40°F to +158°F)
Long-term operating temperature[°C(°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage relative humidity[RH]	5% RH to 95% RH, non-condensing
Long-term operating relative humidity[RH]	5% RH to 95% RH, non-condensing
Storage altitude[m(ft.)]	≤ 5000 m (16404 ft.)
Long-term operating altitude[m(ft.)]	≤ 5000 m (16404 ft.)
MTBF[year]	48.4 years
MTTR[hour]	1.86 hours
Noise at high temperature (40°C, sound pressure)	Port-side air intake: < 86.1 dB(A) Port-side air exhaust: < 87.9 dB(A)
Noise at normal temperature (27°C, sound pressure)	Port-side air intake: < 64.3 dB(A) Port-side air exhaust: < 65.2 dB(A)
Availability	0.9999964621

CloudEngine CE8865-4C 02355RTC Huawei Network Switch With 4 Subcard Slots 1
