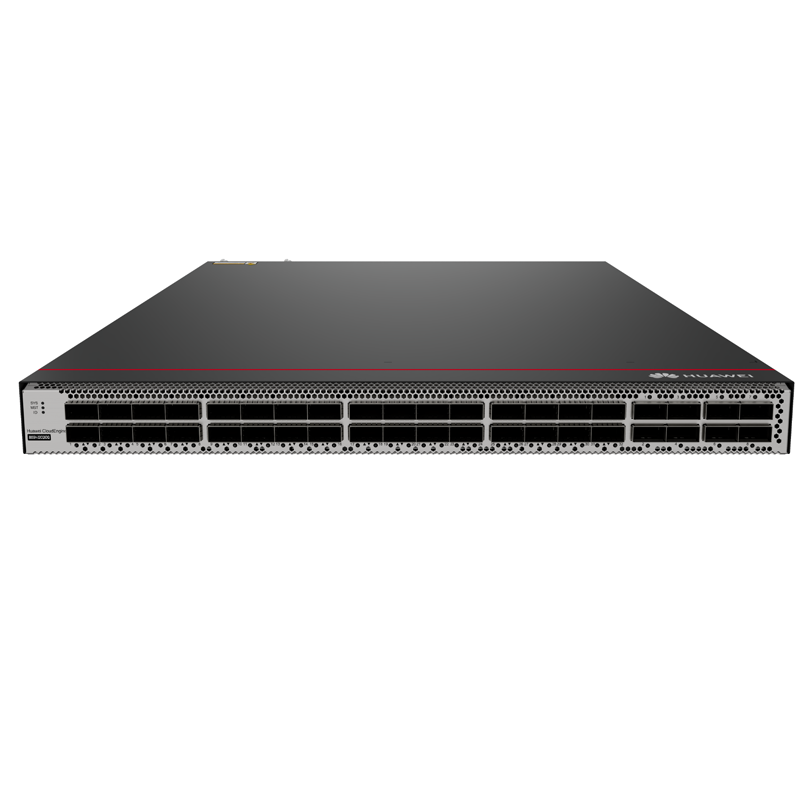

CE8855H-32CQ8DQ 02356WNM 32*100GE QSFP28 Huawei Network Switch 8*400GE QSFP-DD
Description
The CE8855H-32CQ8DQ is a high-density, high-performance, and low-latency frame-type ToR (top-of-cabinet) Huawei Network Switch in Huawei's CloudEngine 8800 series. It is positioned at the core of the server access layer or high-performance computing/storage network within a data center, aiming to meet the requirements of modern data centers such as large-scale cloud computing, big data, and AI computing for high bandwidth, low latency, and high reliability.
This Huawei Network Switch is equipped with 32 100GbE QSFP28 ports: This is its core interface configuration, which can be flexibly used as:
100GE port, directly connect to high-performance servers or storage devices.
By splitting the branch cables into 4 25GbE SFP28 ports or 4 10GbE SFP+ ports, it can be expanded from 32 100G ports to a maximum of 128 25G or 128 10G ports, greatly enhancing the access density and investment flexibility.
Eight 200GbE/400GbE QSFP-DD ports: for uplink interconnection. It can be connected to the core/spine layer switch of the data center, providing powerful uplink bandwidth (up to 3.2Tbps uplink capacity), avoiding uplink bottlenecks.
Pictures
Specification
|
|
02356WNL (CE8855H-32CQ8DQ Switch(32*100GE QSFP28, 8*400GE QSFP-DD, Without Fan and Power Modules))
02356WNN (CE8855H-32CQ8DQ Switch(32*100GE QSFP28, 8*400GE QSFP-DD, 2*AC Power Modules, 6*Fans, Port-side Exhaust))
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Weight with packaging[kg(lb)]
|
|
Weight without packaging[kg(lb)]
|
10.3 kg (22.71 lb) (excluding optical modules, power modules, and fan modules)
|
Maximum power consumption[W]
|
- 676 W (100% traffic load, short-distance optical modules on 32 x 100GE + 8 x 400GE ports, normal temperature, dual AC power modules)
- 719 W (100% traffic load, short-distance optical modules on 16 x 100GE + 16 x 200GE + 8 x 400GE ports, normal temperature, dual AC power modules)
- 933 W (100% traffic load, long-distance optical modules on 32 x 100GE + 8 x 400GE ports, high temperature, dual AC power modules)
- 1020 W (100% traffic load, long-distance optical modules on 16 x 100GE + 16 x 200GE + 8 x 400GE ports, high temperature, dual AC power modules)
|
Typical power consumption[W]
|
- 456 W (100% traffic load, copper cables on 16 x 100GE + 4 x 400GE ports, normal temperature, dual AC power modules)
- 473 W (100% traffic load, copper cables on 8 x 100GE + 8 x 200GE + 4 x 400GE ports, normal temperature, dual AC power modules)
- 536 W (100% traffic load, short-distance optical modules on 16 x 100GE + 4 x 400GE ports, normal temperature, dual AC power modules)
- 558 W (100% traffic load, short-distance optical modules on 8 x 100GE + 8 x 200GE + 4 x 400GE ports, normal temperature, dual AC power modules)
|
Static power consumption[W]
|
|
|
|
|
Maximum heat dissipation[BTU/hour]
|
- 2307 BTU/hour (100% traffic load, short-distance optical modules on 32 x 100GE + 8 x 400GE ports, normal temperature, dual AC power modules)
- 2454 BTU/hour (100% traffic load, short-distance optical modules on 16 x 100GE + 16 x 200GE + 8 x 400GE ports, normal temperature, dual AC power modules)
- 3184 BTU/hour (100% traffic load, long-distance optical modules on 32 x 100GE + 8 x 400GE ports, high temperature, dual AC power modules)
- 3481 BTU/hour (100% traffic load, long-distance optical modules on 16 x 100GE + 16 x 200GE + 8 x 400GE ports, high temperature, dual AC power modules)
|
Typical heat dissipation[BTU/hour]
|
- 1556 BTU/hour (100% traffic load, copper cables on 16 x 100GE + 4 x 400GE ports, normal temperature, dual AC power modules)
- 1614 BTU/hour (100% traffic load, copper cables on 8 x 100GE + 8 x 200GE + 4 x 400GE ports, normal temperature, dual AC power modules)
- 1829 BTU/hour (100% traffic load, short-distance optical modules on 16 x 100GE + 4 x 400GE ports, normal temperature, dual AC power modules)
- 1904 BTU/hour (100% traffic load, short-distance optical modules on 8 x 100GE + 8 x 200GE + 4 x 400GE ports, normal temperature, dual AC power modules)
|
Static heat dissipation[BTU/hour]
|
|
|
|
AC pluggable,DC pluggable,HVDC pluggable
|
|
|
- 1200 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
- 1200 W DC power module: –48 V DC to –60 V DC; +48 V DC
- 2000 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
- 2000 W high-voltage DC power module: 336 V DC
|
|
|
- 1200 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC
- 1200 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +72 V DC
- 2000 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 66 Hz; DC: 190 V DC to 290 V DC
- 2000 W high-voltage DC power module: 260 V DC to 400 V DC
|
|
|
- 1200 W AC&240 V DC power module: 10 A (100 V AC to 130 V AC); 8 A (200 V AC to 240 V AC); 8 A (240 V DC)
- 1200 W DC power module: 38 A (–48 V DC to –60 V DC); 38 A (+48 V DC)
- 2000 W AC&240 V DC power module: 10 A (100 V AC to 240 V AC); 10 A (240 V DC)
- 2000 W high-voltage DC power module: 10 A (336 V DC)
|
|
|
- 1200 W AC&240 V DC power module: 1200 W
- 1200 W DC power module: 1200 W
- 2000 W AC&240 V DC power module: 2000 W (220 V AC to 240 V AC; 240 V DC); 1800 W (200 V AC to 220 V AC); 900 W (100 V AC to 130 V AC)
- 2000 W high-voltage DC power module: 2000 W
|
|
|
|
|
|
|
|
|
|
|
|
The USB port can connect to a USB flash drive for deployment, log backup, configuration file transfer, and file upgrade. The USB port can only connect to a USB flash drive that complies with USB 2.0.
Note: USB flash drives from different vendors differ in compatibility and drivers. If a USB flash drive cannot be used, replace it with another one from a mainstream vendor.
|
|
|
|
Downlink Service interface
|
32 x 100GE QSFP28 + 8 x 400GE QSFP-DD
|
Service port supporting the stack function
|
Reserved function. This function is not enabled.
|
|
|
|
Switching capacity[bps,bit/s]
|
For more details, see the datasheet/brochure or contact product sales personnel.
You can obtain the datasheet/brochure from the following link:
https://e.huawei.com/en/products/switches/data-center-switches
|
|
|
The device supports 5+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
|
|
|
|
|
|
|
Power supply surge protection
|
AC: 6 kV in common mode and 6 kV in differential mode
DC: 4 kV in common mode and 2 kV in differential mode
HVDC: 4 kV in common mode and 2 kV in differential mode
|
|
|
|
|
|
|
|
|
Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
|
Storage temperature[°C(°F)]
|
-40ºC to +70ºC (-40°F to +158°F)
|
Long-term operating temperature[°C(°F)]
|
0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
|
Storage relative humidity[RH]
|
5% RH to 95% RH, non-condensing
|
Long-term operating relative humidity[RH]
|
5% RH to 95% RH, non-condensing
|
|
|
|
Long-term operating altitude[m(ft.)]
|
|
|
|
|
|
|
|
Noise at high temperature (40°C, sound pressure)
|
- Port-side air intake: 76.2 dB(A) on average; maximum: 80.1 dB(A)
- Port-side air exhaust: 73.1 dB(A) on average; maximum: 79.3 dB(A)
|
Noise at normal temperature (27°C, sound pressure)
|
- Port-side air intake: 60.0 dB(A) on average; maximum: 63.7 dB(A)
- Port-side air exhaust: 64.8 dB(A) on average; maximum: 69.5 dB(A)
|
|
|
|
