CE9875-64EO 02357GCU 2*10GE SFP+ Switch Enterprise 64*800G OSFP800

CE9875-64EO 02357GCU 210GE SFP+ Switch Enterprise 64800G OSFP800

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CQC
Model Number:	CE9875-64EO

Detail Information

Place of Origin:

China

Brand Name:

Huawei

Certification:

Model Number:

CE9875-64EO

Product Name:

Enterprise Data Center Switch

Part Number:

02357GCU 02357DJM

Weight:

34.9 Kg

Downlink Service Interface:

64*800G OSFP800,2*10GE SFP+

Heat Dissipation Mode:

Air Cooling

NOR Flash:

64 MB X 2

Highlight:

High Light

Highlight:

CE9875-64EO 02357GCU

2*10GE SFP+ Switch

64*800G OSFP800 SFP+ Switch

Trading Information

Minimum Order Quantity:

1 unit

Price:

8000-12320 USD

Packaging Details:

Original brand carton

Delivery Time:

7 work days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

1000 units

Product Description

CE9875-64EO 02357GCU 2*10GE SFP+ Enterprise Data Center Switch 64*800G OSFP800

Description

CloudEngine 9800 series is the company for data centers to launch of a new generation of high performance, high density, low latency Ethernet Data Center Enterprise Switch, flexible insert CARDS can cooperate with CloudEngine 16800/12800/5800/8800/6800 build elastic, virtual cloud data center network and high quality. The CloudEngine 9860 series Data Center Enterprise Switch adopts an advanced hardware structure design, providing high-density 100GE/40GE ports and supporting a rich array of data center features. The CloudEngine 9800 series switches are positioned at the core or aggregation of data centers and can also be used at the core or aggregation of campus networks.

Pictures

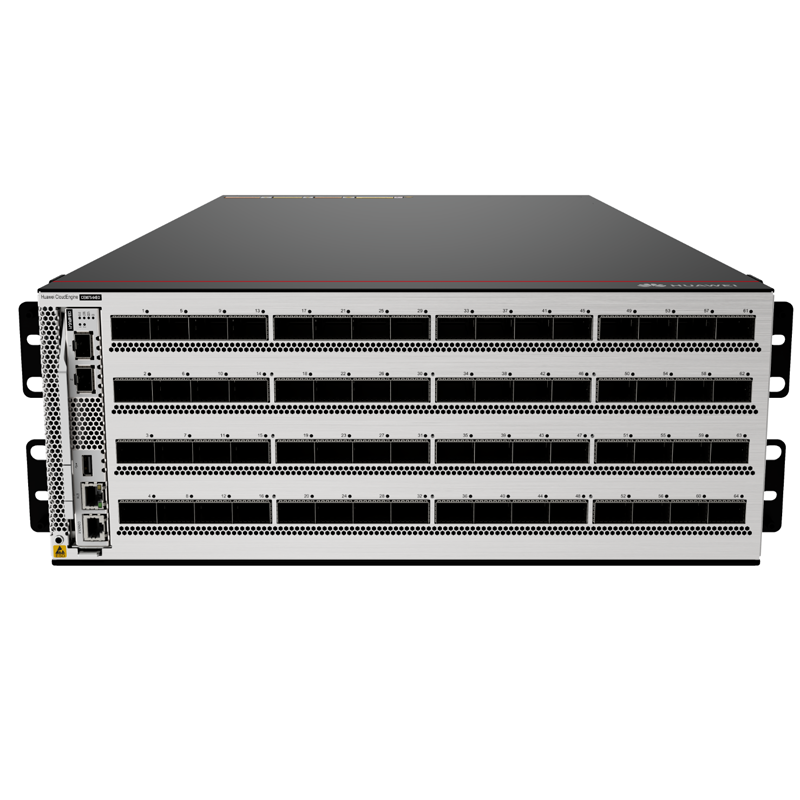

CE9875-64EO 02357GCU 2*10GE SFP+ Switch Enterprise 64*800G OSFP800 0

Specification

Other part numbers	02357DJM (CE9875-64EO switch (64800GE OSFP800,210GE SFP+,Without Fan and Power Modules))
Installation Type	Cabinet installation
Depth[mm]	765 mm
Chassis height[U]	4
Wide[mm]	442 mm
Height[mm]	175 mm
Weight with packaging[kg(lb)]	59.4 kg (130.95 lb), including the pallet
Weight without packaging[kg(lb)]	34.9 kg/76.94 lb (including an independent main control board but excluding power modules, fan modules, and optical modules)
Maximum power consumption[W]	2265 W (100% traffic load, short-distance optical modules on 64 ports, normal temperature, four AC power modules) 3118 W (100% traffic load, long-distance optical modules on 64 ports, 40°C or 104°F, four AC power modules)
Typical power consumption[W]	1602 W (100% traffic load, short-distance optical modules on 32 ports, normal temperature, four AC power modules)
Static power consumption[W]	956 W
Heat dissipation mode	Air cooling
Maximum heat dissipation[BTU/hour]	7729 BTU/hour (100% traffic load, short-distance optical modules on 64 ports, normal temperature, four AC power modules) 10639 BTU/hour (100% traffic load, long-distance optical modules on 64 ports, 40°C or 104°F, four AC power modules)
Typical heat dissipation[BTU/hour]	5467 BTU/hour (100% traffic load, short-distance optical modules on 32 ports, normal temperature, four AC power modules)
Static heat dissipation[BTU/hour]	3262 BTU/hour
Power supply mode	DC pluggable,AC pluggable,HVDC pluggable
Rated input voltage[V]	- 2000 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC - 2200 W DC power module: –48 V DC to –60 V DC; +48 V DC - 2000 W high-voltage DC power module: 336 V DC
Input voltage range[V]	- 2000 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC - 2200 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC - 2000 W high-voltage DC power module: 260 V DC to 400 V DC
Maximum input current[A]	- 2000 W AC&240 V DC power module: 10 A (100 V AC to 240 V AC); 10 A (240 V DC) - 2200 W DC power module: 63 A (–48 V DC to –60 V DC); 63 A (+48 V DC) - 2000 W high-voltage DC power module: 10 A (336 V DC)
Rated output power[W]	- 2000 W AC&240 V DC power module: 2000 W (220 V AC to 240 V AC&240 V DC), 1800 W (200 V AC to 220 V AC), 900 W (100 V AC to 130 V AC) - 2200 W DC power module: 2200 W - 2000 W high-voltage DC power module: 2000 W
Memory	DRAM: 16 GB
NOR Flash	64 MB x 2
SSD Flash	8GB SSD
USB	The USB port can connect to a USB flash drive for deployment, log backup, configuration file transfer, and file upgrade. The USB port can only connect to a USB flash drive that complies with USB 2.0. Note: USB flash drives from different vendors differ in compatibility and drivers. If a USB flash drive cannot be used, replace it with another one from a mainstream vendor.
Console port	RJ45
Downlink Service interface	64 x 800GE OSFP800
Uplink Service interface	2 x 10GE SFP+ (Note: This function is reserved and is not enabled currently.)
Service port supporting the stack function	Reserved function. This function is not enabled.
RTC	Supported
Switching capacity[bps,bit/s]	For more details, see the datasheet/brochure or contact product sales personnel. You can obtain the datasheet/brochure from the following link: https://e.huawei.com/en/products/switches/data-center-switches
Redundant fans	The device supports 5+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Redundant power supply	2+2 backup
Number of power modules	4
Power supply surge protection	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fan modules	6
Airflow direction	Port-side air intake, power supply-side air exhaust
Storage temperature[°C(°F)]	-40ºC to +70ºC (-40°F to +158°F)
Long-term operating temperature[°C(°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage relative humidity[RH]	5% RH to 95% RH, non-condensing
Long-term operating relative humidity[RH]	5% RH to 95% RH, non-condensing
Storage altitude[m(ft.)]	≤ 5000 m (16404 ft.)
Long-term operating altitude[m(ft.)]	≤ 5000 m (16404 ft.)
MTBF[year]	16.64 years
MTTR[hour]	1.2 hours
Noise at high temperature (40°C, sound pressure)	Port-side air intake: 83.7 dB(A) on average; maximum: 90.8 dB(A)
Noise at normal temperature (27°C, sound pressure)	Port-side air intake: 65.1 dB(A) on average; maximum: 72.65 dB(A)
Availability	0.9999917666
