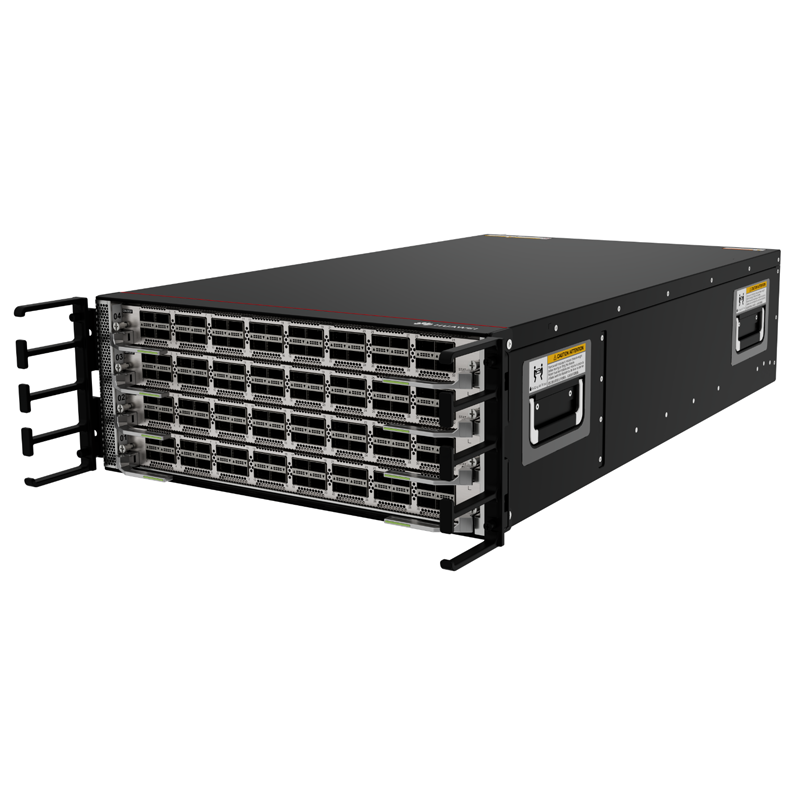

Cloudengine CE9865-4C 02356BCE 4 Subcard Slots Data Center Enterprise Switch
Description
CloudEngine 9800 series is the company for data centers to launch of a new generation of high performance, high density, low latency Ethernet Data Center Enterprise Switch, flexible insert CARDS can cooperate with CloudEngine 16800/12800/5800/8800/6800 build elastic, virtual cloud data center network and high quality. The CloudEngine 9860 series Data Center Enterprise Switch adopts an advanced hardware structure design, providing high-density 100GE/40GE ports and supporting a rich array of data center features. The CloudEngine 9800 series switches are positioned at the core or aggregation of data centers and can also be used at the core or aggregation of campus networks.
Pictures
Specification
|
|
02356BCF(CE9865-4C Mainframe (With 4 Subcard Slots, 2*AC Power Modules, 4*Fans, Port-side Intake))
02356BCJ(CE9865-4C mainframe (4*subcard slots, 4*AC power modules, 4*fan modules, 4*32 Port 100GE QSFP28 Interface card,port-side intake))
02356HYJ(CE9865-4C mainframe (4*subcard slots, 4*AC power modules, 4*fan modules, 4*8 Port 400GE QSFP-DD Interface card,port-side intake))
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Weight with packaging[kg(lb)]
|
53.7 kg (118.39 lb) (excluding fan modules, power modules, and cards)
|
Weight without packaging[kg(lb)]
|
28.7 kg (63.27 lb) (excluding fan modules, power modules, and cards)
|
Maximum power consumption[W]
|
Configured with four CE98-D32CQ-F cards: 1854 W (100% traffic load, 128-port 100G-SR4 optical modules, normal temperature, fully configured with AC power modules)
Configured with four CE98-D8DQ-F cards: 1457 W (100% traffic load, 32-port 400G-SR8 optical modules, normal temperature, fully configured with AC power modules)
Configured with four CE98-D32CQ-F cards: 2597 W (100% traffic load, 128-port 100G-LR4 optical modules, high temperature, fully configured with AC power modules)
Configured with four CE98-D8DQ-F cards: 1831 W (100% traffic load, 32-port 400G-FR4 optical modules, high temperature, fully configured with AC power modules)
|
Typical power consumption[W]
|
Configured with four CE98-D32CQ-F cards: 1465 W (100% traffic load, 64-port 100G-SR4 optical modules, normal temperature, fully configured with AC power modules)
Configured with four CE98-D8DQ-F cards: 1140 W (100% traffic load, 16-port 400G-SR8 optical modules, normal temperature, fully configured with AC power modules)
|
Static power consumption[W]
|
Configured with four CE98-D32CQ-F cards: 1083 W
Configured with four CE98-D8DQ-F cards: 847 W
|
|
|
|
Maximum heat dissipation[BTU/hour]
|
Configured with four CE98-D32CQ-F cards: 6326 BTU/hour (100% traffic load, 128-port 100G-SR4 optical modules, normal temperature, fully configured with AC power modules)
Configured with four CE98-D8DQ-F cards: 4971 BTU/hour (100% traffic load, 32-port 400G-SR8 optical modules, normal temperature, fully configured with AC power modules)
Configured with four CE98-D32CQ-F cards: 8861 BTU/hour (100% traffic load, 128-port 100G-LR4 optical modules, high temperature, fully configured with AC power modules)
Configured with four CE98-D8DQ-F cards: 6248 BTU/hour (100% traffic load, 32-port 400G-FR4 optical modules, high temperature, fully configured with AC power modules)
|
Typical heat dissipation[BTU/hour]
|
Configured with four CE98-D32CQ-F cards: 4999 BTU/hour
(100% traffic load, 64-port 100G-SR4 optical modules, normal temperature, fully configured with AC power modules)
Configured with four CE98-D8DQ-F cards: 3890 BTU/hour
(100% traffic load, 16-port 400G-SR8 optical modules, normal temperature, fully configured with AC power modules)
|
Static heat dissipation[BTU/hour]
|
Configured with four CE98-D32CQ-F cards: 3695 BTU/hour
Configured with four CE98-D8DQ-F cards: 2890 BTU/hour
|
|
|
AC pluggable,DC pluggable,HVDC pluggable
|
|
|
- 2000 W AC&240 V DC power module: AC: 100 V AC to 240 V AC, 50/60 Hz; DC: 240 V DC
- 2200 W DC power module: –48 V DC to –60 V DC; +48 V DC
- 2000 W high-voltage DC power module: 336 V DC
|
|
|
- 2000 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC
- 2200 W DC power module: –38.4 V DC to –72 V DC; +38.4 V DC to +57 V DC
- 2000 W high-voltage DC power module: 260 V DC to 400 V DC
|
|
|
- 2000 W AC&240 V DC power module: 10 A (100 V AC to 240 V AC); 10 A (240 V DC)
- 2200 W DC power module: 63 A (–48 V DC to –60 V DC); 63 A (+48 V DC)
- 2000 W high-voltage DC power module: 10 A (336 V DC)
|
|
|
- 2000 W AC&240 V DC power module: 2000 W (220 V AC to 240 V AC&240 V DC), 1800 W (200 V AC to 220 V AC), 900 W (100 V AC to 130 V AC)
- 2200 W DC power module: 2200 W
- 2000 W high-voltage DC power module: 2000 W
|
|
|
|
|
|
|
|
|
|
|
|
The USB port can connect to a USB flash drive for deployment, log backup, configuration file transfer, and file upgrade. The USB port can only connect to a USB flash drive that complies with USB 2.0.
Note: This port is available in V300R025C00 and later versions. USB flash drives from different vendors differ in compatibility and drivers. If a USB flash drive cannot be used, replace it with another one from a mainstream vendor.
|
|
|
|
Downlink Service interface
|
The device does not have fixed ports and provides four card slots. Currently, the device supports the following cards:
CE98-D32CQ-F: 32 x 100GE QSFP28
1. Each 100GE QSFP28 port can be configured to work at 40 Gbit/s.
2. Only the top-row ports can be split. Every four ports form a group. When a 40GE/100GE port is split into 4 x 10GE or 4 x 25GE ports, the other top-row port is also split, and the bottom-row ports in the same group become unavailable. For example, ports 1, 2, 3, and 4 form a group. When port 1 is split, port 3 is also split, and ports 2 and 4 are unavailable. Only ports with optical modules can be split, and ports with copper cables cannot be split.
3. Support for optical modules: 40GE-SR4/LR4/eSR4/ER4/BIDI/eSDLC/SDLC/LX4/eSR4 and AOC, as well as 100G-SR4/PSM4/CWDM4/LR4/SWDM4/4WDM/BIDI/LX4/DR1/FR1/LR1/ER4 optical modules are supported. When the ambient temperature ranges from 0°C to 35°C (32°F to 95°F), 100G-ZR4 is supported, but the device noise will exceed the threshold.
4. Support for copper cables: 40GE/100GE 1/3/5 m passive copper cables are supported. Copper cable auto-negotiation and splitting are not supported. Copper cables can only be used on M-LAG peer-link ports.
CE98-D8DQ-F: 8 x 400GE QSFP-DD
1. 400GE ports cannot be configured as 200GE, 100GE, or 40GE ports.
2. A 400GE port can be split into 4 x 100GE or 2 x 200GE ports. Only ports with optical modules can be split, and ports with copper cables cannot be split.
3. Support for optical modules:
(1) 400GE ports support optical modules such as 400GE-SR8/eSR8/SR4/LR8/DR4/FR4/ER8/ZR and AOC.
(2) 400G-ZR+ optical module: When the ambient temperature ranges from 0°C to 35°C (32°F to 95°F), only ports 1, 3, 5, and 7 in slots 3 and 4 support 400G-ZR+ optical modules. Each card supports four 400G-ZR+ optical modules, and a total of eight 400G-ZR+ optical modules are supported. In the ambient temperature, the device noise increases to 83 dBA. Ports 1 and 2, 3 and 4, 5 and 6, and 7 and 8 form different groups. In each group, only the port with a smaller port number supports 400G-ZR+. For example, if a 400G-ZR+ optical module is inserted into port 1, port 2 becomes unavailable and no optical module can be inserted.
(3) 400GE-VR4 optical modules are supported in V300R024C10 and later versions.
(4) 400GE-LR4 optical modules are supported in V300R025C00 and later versions.
4. Support for copper cables: 400GE 1 m/2.5 m copper cables are supported. (For 400GE 1 m copper cables, only QSFP-DD-400G-CU1M is supported, and QSFP-DD-400G-CU1M-S is not supported.) Copper cable auto-negotiation and splitting are not supported. Copper cables can only be used on M-LAG peer-link ports.
|
Service port supporting the stack function
|
|
|
|
|
Switching capacity[bps,bit/s]
|
For more details, see the datasheet/brochure or contact product sales personnel.
You can obtain the datasheet/brochure from the following link:
https://e.huawei.com/en/products/switches/data-center-switches
|
|
|
The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
|
|
|
|
|
|
|
Power supply surge protection
|
AC: 6 kV in common mode and 6 kV in differential mode
DC: 4 kV in common mode and 2 kV in differential mode
HVDC: 4 kV in common mode and 2 kV in differential mode
|
|
|
|
|
|
|
|
|
Back-to-front airflow: Air flows into the chassis from the port side and flows out from the power supply side.
|
Storage temperature[°C(°F)]
|
-40ºC to +70ºC (-40°F to +158°F)
|
Long-term operating temperature[°C(°F)]
|
0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.)
Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
|
Storage relative humidity[RH]
|
5% RH to 95% RH, non-condensing
|
Long-term operating relative humidity[RH]
|
5% RH to 95% RH, non-condensing
|
|
|
|
Long-term operating altitude[m(ft.)]
|
|
|
|
|
|
|
|
Noise at high temperature (40°C, sound pressure)
|
Back-to-front airflow: 78.2 dB(A) on average (maximum: 88 dB(A))
|
Noise at normal temperature (27°C, sound pressure)
|
Back-to-front airflow: 60.6 dB(A) on average (maximum: 69 dB(A))
|
|
|
|
