| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | NE9000-20 |
Description

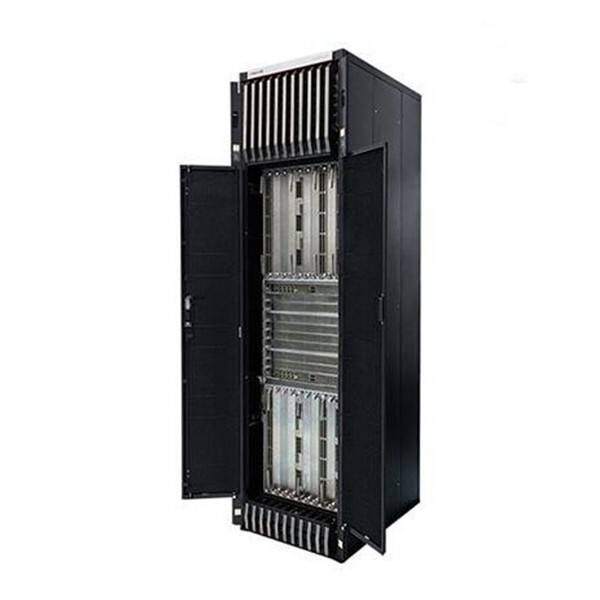

The HUAWEI NE9000 Network Service Routers Router (NE9000) is a large-capacity and high-performance router designed by Huawei to provide carrier-class reliability. Based on the powerful versatile routing platform (VRP), the HUAWEI NE9000 provides strong switching capabilities, dense ports, and high reliability. HUAWEI NE9000 mainly serves as super-core nodes on carriers' backbone networks, core nodes on metropolitan area networks (MANs), egresses in large-scale Internet Data Centers (IDCs), and core nodes on large-scale enterprise networks.
The NetEngine 9000 series are large-capacity, high-reliability, energy-efficient routers designed to meet interconnection requirements in the cloud era. NetEngine 9000 series Network Service Routers serve as core nodes on large Data Center Interconnect (DCI) networks, large enterprise networks, and metro networks, and as super-core nodes on carriers’ backbone networks.
Pictures
Specification
| Item | Specification |
|---|---|
| Cabinet installation standards | The NE9000 chassis is integrated in a cabinet. |
| Dimensions without packaging (H x W x D) [mm(in.)] | 2200 mm x 600 mm x 1000 mm (86.61 in. x 23.62 in. x 39.37 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 2200 mm x 600 mm x 1021 mm (86.61 in. x 23.62 in. x 40.20 in.) |
| Chassis height [U] | 49.5U |
| Weight without packaging [kg(lb)] | 410 kg (903.89 lb) |
| Weight with packaging [kg(lb)] | 484 kg (1067.03 lb) |
| Weight without packaging (full configuration) [kg(lb)] | 885kg (1951.4 lb) |
| Typical power consumption (with configuration) [W] |
Typical 18526W (include 13PMs, 8 LPU FANs, 4 SFU FANs) 2 MPU + 8 SFU + 20 20x100G QSFP28 Typical 32340W (include 19PMs, 8 LPU FANs, 4 SFU FANs) 2 MPU + 8 SFU + 20 40x100G QSFP28 Typical 21276W (include 14PMs, 8 LPU FANs, 4 SFU FANs) 2 MPU + 8 SFU + 20 20x100G QSFP28 |
| Typical heat dissipation (with configuration) [BTU/hour] |
60106 BTU/hour (include 13PMs, 8 LPU FANs, 4 SFU FANs) 2 MPU + 8 SFU + 20 20x100G QSFP28 104925.5 BTU/hour (include 19PMs, 8 LPU FANs, 4 SFU FANs) 2 MPU + 8 SFU + 20 40x100G QSFP28 69028.3 BTU/hour (include 15PMs, 8 LPU FANs, 4 SFU FANs) 2 MPU + 8 SFU + 20 20x100G QSFP28 |
| MTBF [year] | 18.7400 year |
| MTTR [hour] | 0.5 hour |
| Availability | 0.99999 |
| Power supply mode | DC |
| Maximum number of power chassis inputs | (8 channels/PEM)*6 PEM=(2 channels/PM)*6 PM*4 PEM=48 channels |
| Rated input voltage [V] | -48 V / -60 V |
| Input voltage range [V] | –40 V to –72 V |
| Maximum input current [A] | 63 A/single-module |
| Maximum input cable size [mm²] | 35 mm²/channel |
| Front-end circuit breaker/fuse [A] |
2 channels of 63 A/single-module [1T bundle] DC device: 8 PMs, with a total of 16 channels of 63 A [2T bundle] DC device: 9 PMs, with a total of 18 channels of 63 A [4T bundle] DC device: 9 PMs, with a total of 18 channels of 63 A |
| Airflow direction | From front to back |
| Noise at normal temperature (acoustic power) [dB(A)] | 77.2dBA, NEBS-compliance (< 78 dBA @ 27°C) |
| Number of slots | 32 |
| Number of service board slots | 20 |
| Switching capacity | 209.45 Tbit/s |
| Redundant MPUs | 1:1 |
| Redundant Switch fabrics | 7+1 |
| Redundant CMUs | 1:1 |
| Redundant power supply |
[1T bundle] DC: 7+1 [2T bundle] DC: 8+1 [4T bundle] DC: 8+1 |
| Redundant fans | The device has three fan partitions. Each partition has four fan assemblies, which support 3+1 fan assembly redundancy. |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) |
| Short-term operating temperature [°C(°F)] | –5°C to +50°C (23°F to 122°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | ≤ 0.5°C/min (32.9°F/min), non-condensing |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158 °F) |
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, non-condensing |
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | ≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device decreases by 1°C [33.8°F] each time the altitude increases by 220 m [721.78 ft.].) |
| Storage altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
