| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | NE9000-8 |
Description

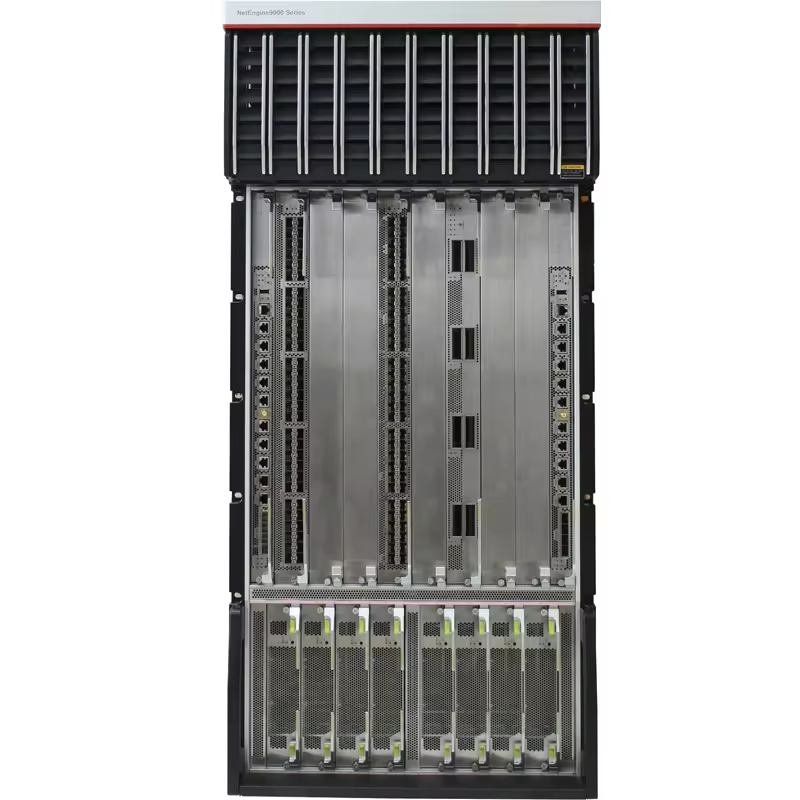

The HUAWEI NE9000 Enterprise Core Router (NE9000) is a large-capacity and high-performance router designed by Huawei to provide carrier-class reliability. Based on the powerful versatile routing platform (VRP), the HUAWEI NE9000 provides strong switching capabilities, dense ports, and high reliability. HUAWEI NE9000 mainly serves as super-core nodes on carriers' backbone networks, core nodes on metropolitan area networks (MANs), egresses in large-scale Internet Data Centers (IDCs), and core nodes on large-scale enterprise networks.
The NetEngine 9000 series are large-capacity, high-reliability, energy-efficient routers designed to meet interconnection requirements in the cloud era. NetEngine 9000 series Enterprise routers serve as core nodes on large Data Center Interconnect (DCI) networks, large enterprise networks, and metro networks, and as super-core nodes on carriers’ backbone networks.
Pictures
Specification
| Item | Specification |
|---|---|
| Cabinet installation standards | Can be installed in an 1000 mm-deep standard 19-inch cabinet and is installed in a 2200 mm-high Huawei N610E cabinet by default. |
| Dimensions without packaging (H x W x D) [mm(in.)] | 1016 mm x 442 mm x 945 mm (40.00 in. x 17.40 in. x 37.20 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 1290 mm x 770 mm x 1245 mm (50.79 in. x 30.31 in. x 49.02 in.) |
| Chassis height [U] | 23U |
| Weight without packaging [kg(lb)] | 181 kg (399.03 lb) |
| Weight with packaging [kg(lb)] | 217 kg (478.4 lb) |
| Weight without packaging (full configuration) [kg(lb)] | 374kg (824.5 lb) |
| Typical power consumption (with configuration) [W] |
Typical 7970W (include 8 PMs, 3 LPU FANs, 2 SFU FANs) 2 MPU + 8 SFU + 8 20x100G QSFP28 Typical 13500W (include 9 PMs, 3 LPU FANs, 2 SFU FANs) 2 MPU + 8 SFU + 8 40x100G QSFP28 Typical 9079W (include 8 PMs, 3 LPU FANs, 2 SFU FANs) 2 MPU + 8 SFU + 20 20x100G QSFP28 (03058864) |
| Typical heat dissipation (with configuration) [BTU/hour] |
25858 BTU/hour (include 8 PMs, 3 LPU FANs, 2 SFU FANs) 2 MPU + 8 SFU + 8 20x100G QSFP28 43799.7 BTU/hour (include 9 PMs, 3 LPU FANs, 2 SFU FANs) 2 MPU + 8 SFU + 8 40x100G QSFP28 29456.1 BTU/hour (include 8 PMs, 3 LPU FANs, 2 SFU FANs) 2 MPU + 8 SFU + 20 20x100G QSFP28 (03058864) |
| MTBF [year] | 18.87 year |
| MTTR [hour] | 0.5 hour |
| Availability | 0.99999 |
| Power supply mode | DC |
| Maximum number of power chassis inputs | (8 channels/PEM)*3 PEM=(2 channels/PM)*4 PM*3 PEM=24 channels |
| Rated input voltage [V] | -48 V / -60 V |
| Input voltage range [V] | –40 V to –72 V |
| Maximum input current [A] | 63 A/single-module |
| Maximum input cable size [mm²] | 35 mm²/channel |
| Front-end circuit breaker/fuse [A] |
2 channels of 63 A/single-module [4T bundle] DC device: 6 PMs, with a total of 12 channels of 63 A |
| Airflow direction | From front to back |
| Noise at normal temperature (acoustic power) [dB(A)] | 77.2dBA, NEBS-compliance (< 78 dBA @ 27°C) |
| Number of slots | 18 |
| Number of service board slots | 8 |
| Switching capacity | 83.78 Tbit/s |
| Redundant MPUs | 1:1 |
| Redundant Switch fabrics | 7+1 |
| Redundant CMUs | 1:1 |
| Redundant power supply | [4T bundle] 5+1 |
| Redundant fans | The device has two fan partitions. The LPU partition has three fan assemblies, which support 2+1 fan assembly redundancy. The SFU partition has two fan assemblies, which support 1+1 fan assembly redundancy. |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) |
| Short-term operating temperature [°C(°F)] | –5°C to +50°C (23°F to 122°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | ≤ 0.5°C/min (32.9°F/min), non-condensing |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158 °F) |
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, non-condensing |
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | ≤ 4000 m (13123.2 ft.) (For the altitude in the range of 1800 m to 4000 m [5905.44 ft. to 13123.2 ft.], the operating temperature of the device decreases by 1°C [33.8°F] each time the altitude increases by 220 m [721.78 ft.].) |
| Storage altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
