Depth[mm]
|
| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | CE16804 |

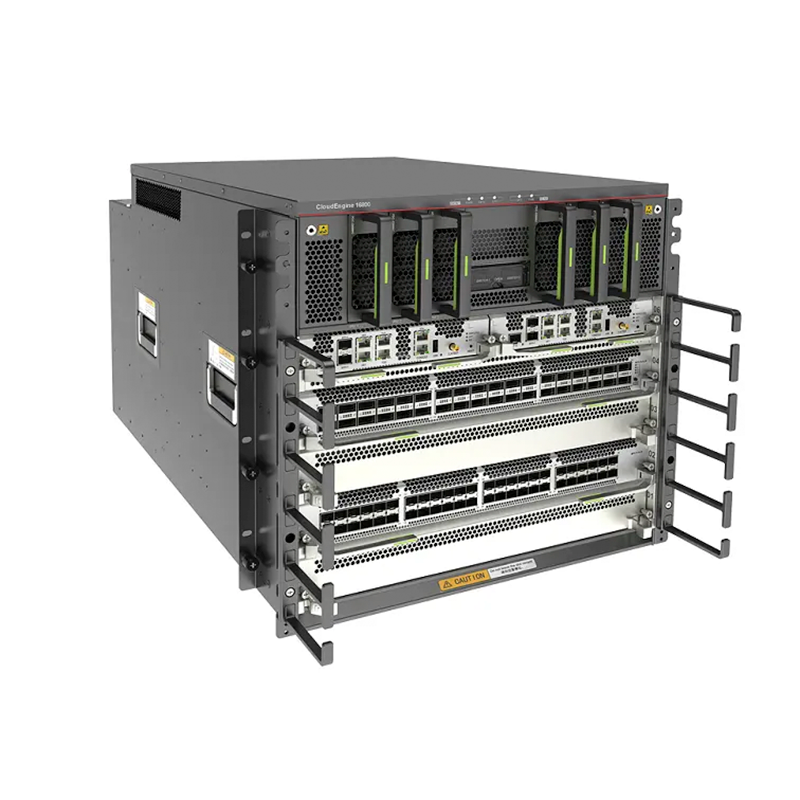

CloudEngine CE16804 02352RCU CE16804-AH Data Center Switch With PoE SNMP QoS
Description
CloudEngine 16804 is a core switch designed for high-performance data center networks and belongs to the Huawei CloudEngine 16800 series. this Data Center Switch is specifically designed for large-scale, high-density and highly reliable data center environments, and is suitable for building enterprise-level core networks, integrated big data centers, and supporting cross-regional computing power scheduling scenarios such as "East Data West Computing".
Core Hardware Parameters and Performance
CE16804 adopts a modular design and features powerful hardware performance and expansion capabilities. Its key parameters are as follows:
Business slots: 4, used for installing business boards of various rates and types.
Switching network slots: 6 (expandable to 9 in the future), providing a highly reliable and high-capacity switching matrix.
Switching capacity: Up to 387 Tbps / 1161 Tbps (whole machine).
Backplane bandwidth: 184 Tbps / 774 Tbps.
Packet forwarding rate: Up to 115,200 Mpps.
Switching architecture: It adopts Clos multi-level switching, cell switching and VoQ (Virtual Output Queue) technology, effectively avoiding data congestion and ensuring non-blocking forwarding.
Physical specifications: The body dimensions are 483mm (width) × 985mm (height) × 438mm (depth), and the weight is approximately 87.8kg.
The core functions of this Data Center Switch
Lossless switching: By using the iLossless algorithm to learn the entire network traffic in real time, it ensures zero packet loss in data transmission.
High performance: Supports wire-speed switching and is suitable for large-scale data center scenarios
