| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |

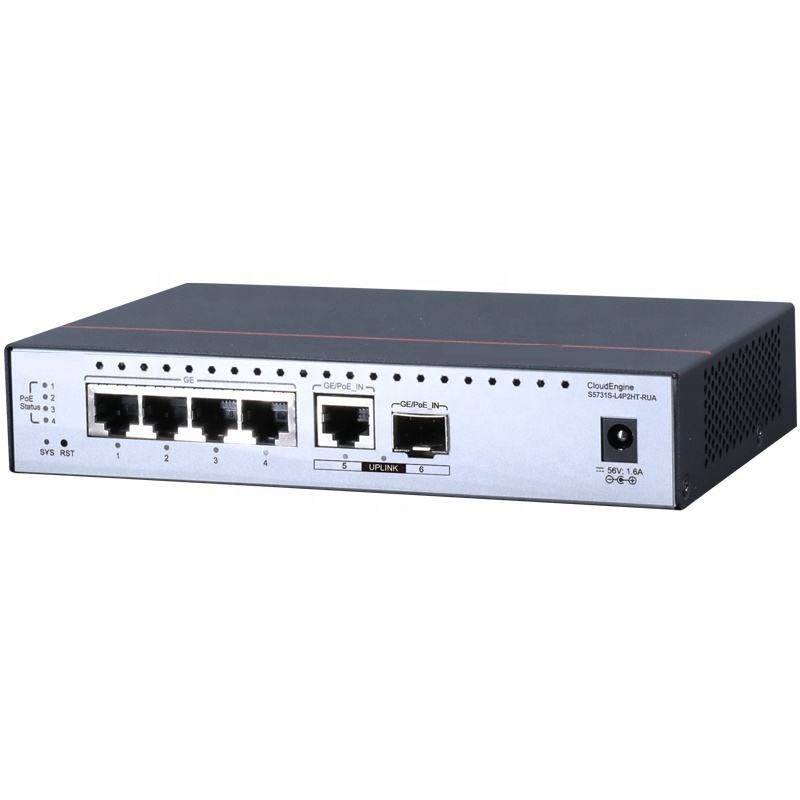

| Model Number: | S5731S-L4P2HT-RUA |
Description
S5731S-L4P2HT-RUA is Campus Fixed Switch ,Huawei CloudEngine S5731-L is a series of Gigabit Ethernet (GE) remote unit switches that include all-GE downlink ports and GE Small Form-factor Pluggable (SFP) uplink ports, with different models offering additional gigabit optical or electrical ports as required.
CloudEngine S5731S-L series Campus Fixed Switch can be widely used in industry scenarios ,Based on simplified architecture, these remote unit switches provide all-gigabit data access to implement simplified network deployment. Supporting optical-electrical Power over Ethernet (PoE), they draw more than 1000 m PoE from central switches and can be used in a wide range of scenarios, including offices, education institutions, hotels, and healthcare facilities, helping enterprises to construct low-carbon buildings.
Pictures
Specification
| Item | Specification |
|---|---|
| Dimensions without packaging (H x W x D) [mm(in.)] |
Basic dimensions (excluding the parts protruding from the body): 38.0 mm x 185.0 mm x 115.0 mm (1.5 in. x 7.28 in. x 4.53 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 38.0 mm x 185.0 mm x 115.0 mm (1.5 in. x 7.28 in. x 4.53 in.) |
| Dimensions with packaging (H x W x D) [mm(in.)] | 82.0 mm x 270.0 mm x 178.0 mm (3.23 in. x 10.63 in. x 7.01 in.) |
| Chassis height [U] | 0.86 U |
| Chassis material | Metal |
| Weight without packaging [kg(lb)] | 0.60 kg (1.32 lb) |
| Weight with packaging [kg(lb)] | 0.81 kg (1.79 lb) |
| Typical power consumption [W] |
6.82 W (device) 8.30 W (device + power adapter) |
| Typical heat dissipation [BTU/hour] |
23.27 (device) 28.32 (device + power adapter) |
| Maximum power consumption [W] |
|
| Maximum heat dissipation [BTU/hour] |
|
| Static power consumption [W] | 4.88 W |
| MTBF [years] | 73.98 years |
| Availability | > 0.99999 |
| Noise at normal temperature (acoustic power) [dB(A)] | Noise-free (no fans): < 30 |
| Noise at normal temperature (acoustic pressure) [dB(A)] | Noise-free (no fans): < 20 |
| Number of card slots | 0 |
| Number of power slots | 0 |
| Number of fans modules | 0 |
| Redundant power supply | Cold backup of uplink hybrid optical-electrical ports or electrical ports and power adapters, cold backup of uplink hybrid optical-electrical ports and electrical ports, and preferential power supply by power adapters (By default, no power adapter is provided, and the power adapter 02221024 can be used.) |
| Long-term operating temperature [°C(°F)] | -5°C to +45°C (23°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Restriction on the operating temperature variation rate [°C(°F)] |
When the altitude is 1800-5000 m (5905.44-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (721.78 ft.). The device cannot start when the temperature is lower than 0°C (32°F). The operating temperature of a device ranges from -5°C to +45°C (23°F to 113°F) when the device uses the following optical modules: - GE optical modules with a transmission distance of less than or equal to 10 km |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0–5000 m (0–16404 ft.) |
| Storage altitude [m(ft.)] | 0-5000 m (0-16404 ft.) |
| Power supply mode |
|
| Rated input voltage [V] |
Power adapter input: 100–240 V AC; 50/60 Hz PoE input: 56 V DC |
| Input voltage range [V] |
Power adapter input: 90–290 V AC; 47–63 Hz PoE input: 54–57 V DC |
| Maximum input current [A] | 1.8 A |
| Memory | - |
| Flash memory | - |
| Console port | Not supported |
| Eth Management port | Not supported |
| USB | Not supported |
| RTC | Not supported |
| RPS input | Not supported |
| Service port surge protection [kV] | Common mode: ±6 kV |
| Power supply surge protection [kV] | Power adapter: ±6 kV in differential mode and ±6 kV in common mode |
| Ingress protection level (dustproof/waterproof) | IP20 |
| Types of fans | None |
| Heat dissipation mode | Natural heat dissipation |
| Airflow direction | - |
| PoE | Supported |
| Certification |
EMC certification Safety certification Manufacturing certification |
