Ma5800 Series MA5800-X2 MA5800-X7 M5800-X15 MA5800-X17 OLT

Ma5800 Series MA5800-X2 MA5800-X7 M5800-X15 MA5800-X17 OLT

Product Details:
Place of Origin: china
Brand Name: Huawei
Model Number: MA5800-X2 MA5800-X7 M5800-X15 MA5800-X17
Detail Information
Place of Origin:
china
Brand Name:
Huawei
Model Number:
MA5800-X2 MA5800-X7 M5800-X15 MA5800-X17
Power Supply Method:
DC Power Supply (-48V/-60V DC), Supports Dual Backup
Maximum Input Current:
40 A
Operating Temperature:
-40℃ ~ +65℃
Highlight:

High Light

Highlight:

Ma5800 Series OLT

,

MA5800-X2 Optical Terminal

,

MA5800-X17 OLT with warranty

Trading Information
Minimum Order Quantity:
1 unit
Price:
2680-3500 USD
Packaging Details:
Original carton
Delivery Time:
3-7work days
Payment Terms:
L/C,D/A,D/P,Western Union,T/T,MoneyGram
Supply Ability:
1000 units
Product Description

Ma5800 Series MA5800-X2 MA5800-X7 M5800-X15 MA5800-X17 OLT

Product Description

MA5800 multi-service access equipment is the industry's leading distributed architecture of the intelligent convergence OLT platform, targeting NG-PON for the next generation of OLT. MA5800 is committed to helping customers build a "wider, faster, more intelligent" Into the network, to provide users with a better business experience.


MA5800 provides GPON, 10G GPON, EPON, 10GE EPON, P2P GE and 10GE access, including FTTH, FTTD, FTTB, FTTC and D-CCAP, including home access, enterprise access Into the mobile bearer and WIIF hot return and other business scenarios need to achieve a full-fiber network business.


MA5800 integrates the functions of OLT and aggregation switches to support the convergence of ONT, MDU and campus switches as a large-capacity aggregation device to help simplify the network architecture and reduce OPEX.


Details Images

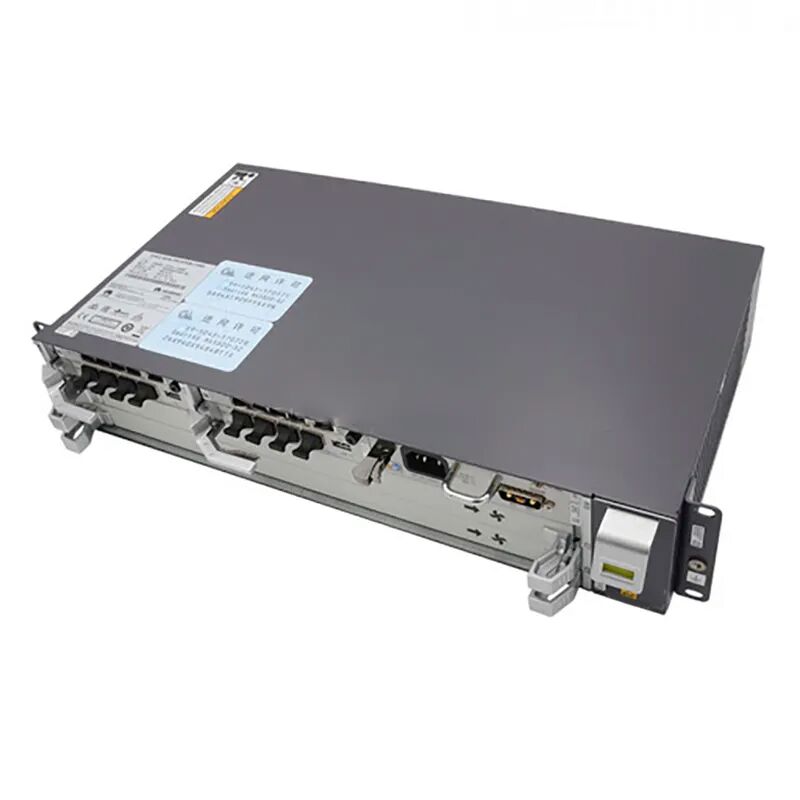

Ma5800 Series MA5800-X2 MA5800-X7 M5800-X15 MA5800-X17 OLT 0

Ma5800 Series MA5800-X2 MA5800-X7 M5800-X15 MA5800-X17 OLT 1

Specification

Instructions
MA5800-X17
MA5800-X15
MA5800-X7
MA5800-X2
Compatible cabinets
N63E-22
No matching cabinets
N63E-22
N66E-22
N63E-22
Board configuration
Main control board slot: 9,10
Main control board slot: 8,9
Main control board slot: 8,9
Main control board slot: 3,4
Service board /uplink board slot:1~8, 11 ~ 19
Service board / uplink board slot:1~7,10~17
Service board /uplink board slot:1~7
Service board /uplink board slot:1~2
Common Interface Board Slot: 0 Power Interface
Common Interface Board Slot: 0 Power Interface
Common Interface Board Slot: 0 Power Interface
Common interface board:Not supported Power Interface
Board Slot: 20,2
Board Slot: 18,19
Board Slot: 10,11
Board Slot: 0
Width x Depth x Height (mm)
11U high, 21 inches wide Without the mounting brackets: 493x287x486 With a lug:535x287x486
11U tall, 19 inches wide Without hanging ears: 442x287x486 With a lug:482.6x287x486
6U tall, 19 inches wide Without hanging ears: 442x268.7x264 With IEC mounting ears: 482.6x268.7x264 With ETSI mounting brackets:
535x268.7x264
2U tall, 19 inches wide Without the mounting brackets: 442x268.7x88 With IEC mounting ears:482.6x268.7x88 With ETSI mounting
brackets:535x268.7x88
Max. weight (with mounting ears)
45kg
35kg
26kg
9.4kg
Max. input current
60A
60A
40A
DC power supply: 20A AC power supply: 10A
Power supply
DC power supply
DC power supply (dual backup) AC power supply + battery backup
Working voltage range
-38.4V~-72V DC
DC power supply: -38.4V ~-72V AC power supply: 100V ~ 240V
Rated voltage
-48V/-60V
DC power supply: -48V / -60V AC power supply:110V / 220V
