Description

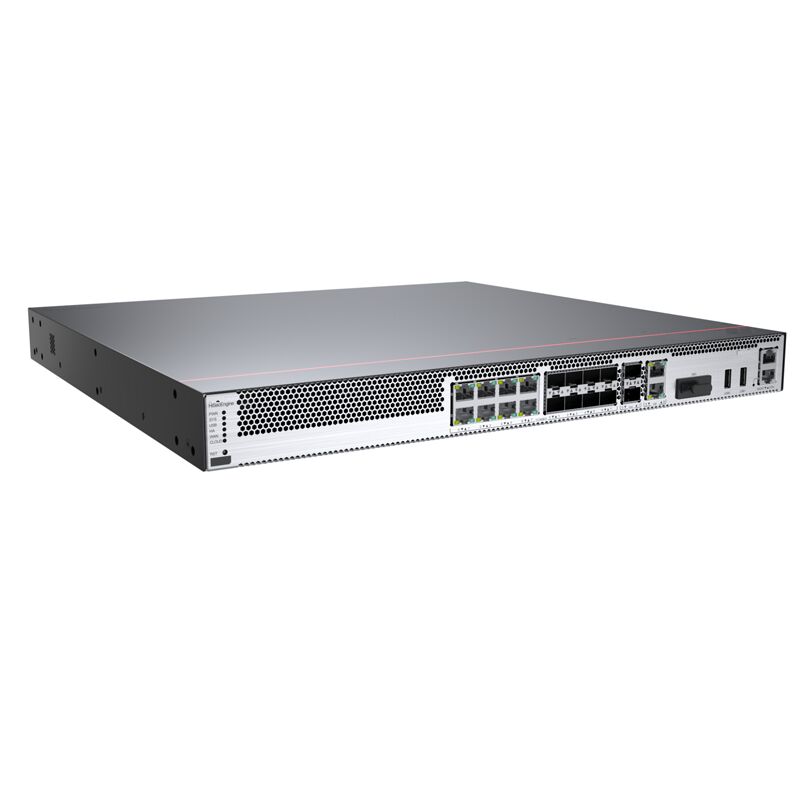

The USG6565F is the core AI firewall in Huawei's USG6500F series. It is a 1U rackmount unit that integrates firewall, VPN, IPS, antivirus, anti-DDoS, and URL filtering. It is designed for medium and large enterprises, campus networks, and cloud egress scenarios. It features AI-driven defense, high throughput, flexible expansion, and simplified operation and maintenance, making it the preferred choice for network perimeter security and high-performance forwarding.
Key Selling Points Overview
AI-Driven Intelligent Defense: Built-in AI security engine combines behavioral analysis and threat intelligence to accurately identify zero-day vulnerabilities, ransomware, and other unknown threats. Encrypted traffic is visible, enabling more proactive defense.
High-Performance All-Scenario: 7G line-speed forwarding + 60G IPS throughput meets the needs of high-bandwidth campuses and cloud egress; multiple interface combinations (electric/optical/10 Gigabit) allow for flexible networking, adapting to hybrid IT architectures.
Full-Stack Integrated Security: Integrates firewall, VPN, IPS, AV, DDoS protection, and URL filtering, eliminating the need for multiple device stacking and reducing deployment and maintenance complexity; supports fine-grained application-layer control to prevent data leakage.
Flexible Expansion and High Reliability: Supports hot-swappable hard drives (log/business storage); dual power supply/fan redundancy, master-master/master-slave HA switching, ensuring 99.999% uninterrupted business operations.
Simplified Operations and Maintenance for Cost Reduction: HiSecManager provides unified management, visualized policies, and automated policy distribution; simplified log analysis and reporting, adaptable to cloud deployments and remote operations, improving O&M efficiency.
Pictures
![]()
Specification
| parameter item | Specifications |
| model | HiSecEngine USG6565F |
| product form | 1U box type (rack mounted) |
| fixed port | 2×GE RJ45 + 8×GE COMBO + 2×10GE SFP+; 1×Console; 1×USB 2.0; 2 x MGMT management interface Huawei enterprise business |
| Exchange/throughput capacity | Firewall throughput: 7 Gbps; IPS throughput: 60 Gbps; IPsec VPN throughput: 40 Gbps |
| performance metrics | Maximum concurrent connections: 4 million; New connections created per second: 80000; Number of strategy rules: 15000; Virtual firewall: 100 |
| hardware configuration | Memory: DDR4 32GB (supports ECC); Flash:64MB; NAND:4GB; Support optional 2.5 "SATA hot swappable hard drives (240GB/480GB/960GB, etc.) |
| security features | AI threat detection IPS,IDS, Anti virus, web filtering, anti DDoS, application recognition (6000+applications), SSL decryption, content security Huawei Enterprise Business |
| VPN support | IPsec,SSL,GRE; Support national encryption algorithms (SM2/SM3/SM4); Maximum number of users for SSL VPN: 100 |
| High reliability HA | Main/backup/main/backup dual machine hot standby, BFD linkage VRRP,ERPS,SmartLink |
| Power supply and power consumption | Dual AC power module, supporting wide voltage range (AC 90-290V; DC 190-290V); Maximum power consumption: 242W |
| Dimensions & Weight | 442 × 420 × 43.6 mm; approximately 5.46 kg |
| Ambient temperature and humidity | 0-45 ℃ (without hard drive)/5-40 ℃ (with hard drive); 5% -95% non condensing |
![]()
