| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | AirEngine 5773-23HW |
Description

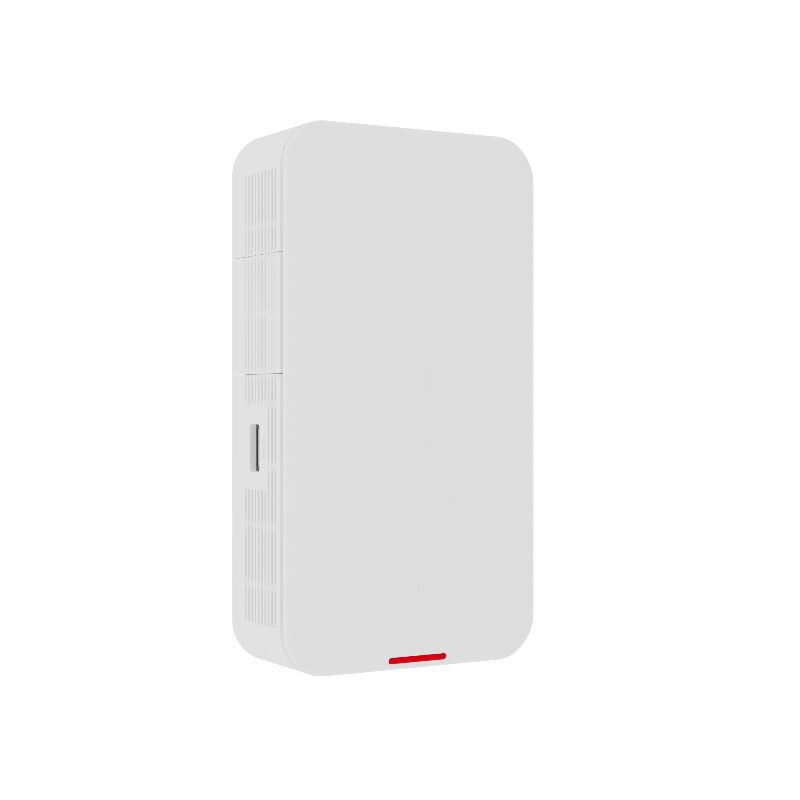

AirEngine 5773-23HW is an 86 type panel Wi Fi 7 (802.11be) AP of Huawei's AirEngine 5700 series, which focuses on long-distance deployment of optoelectronic hybrid cables. It adopts a 2.4GHz (2 × 2)+5GHz (2 × 2) dual RF architecture, with a peak speed of 3.57Gbps. The core is suitable for panel deployment scenarios such as hotel rooms, university dormitories, and branded apartments, and supports 2km optoelectronic hybrid cable separation deployment, balancing the flexibility of all-optical networking, wired expansion capability, and IoT fusion characteristics. It is a cost-effective choice for panel based all-optical networking
Pictures
Specification
| parameter item | Specification Description |
| Product Series | AirEngine 5770 series |
| wireless standard | Wi-Fi 7 (802.11be), Backward compatible with 802.11a/b/g/n/ac/ac wave2/ax |
| operating frequency band | 2.4 GHz (2x2 MIMO) and 5 GHz (2x2 MIMO) |
| spatial flow number | 4 items |
| Machine speed | Up to 3.57 Gbps |
| Antenna type | Built in dual frequency common interface smart antenna, with a 100% increase in signal strength at the same location |
| uplink interface | 1 2.5GE optical port (built-in BIDI optical module, supports optoelectronic hybrid cable) |
| extended interface | 1 USB interface (for future IoT business expansion) |
| Bluetooth | Built in Bluetooth 5.2 for zero configuration deployment and local operation and maintenance |
| power supply method | Supports PoE power supply (802.3at/af) and local DC power supply (12V) |
| Maximum Power Consumption | Approximately 12.6W (referring to products in the same series) |
| Maximum number of users | 1200 people (600 people per RF) |
| Installation method | Panel type, wall mounted |
| physical dimensions | 86 mm x 38 mm x 160 mm (width x depth x height) |
| Operating Temperature | -10 ° C to+50 ° C (some data shows 0 ° C to+40 ° C, subject to actual conditions) |
Our Service
100% Low Price Guarantee:
networks-equipments.com provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are brand new and factory-sealed.For added assurance, each unit can be fully tested and verified to be in perfect working condition by engineer—upon your request.
100% Money Back Guarantee:
If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.
Professional Technical Support:
networks-equipments.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.
FAQ
1. Why choose us?
We are the leading Chinese supplier of quality networking equipments and we have over 10 years experience in this field.
2. What's the quality of the products?
All the items are brand original.
3. How to place an order?
After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T,Wester,Union, Alibaba Orders, Alipy and etc.
4. How about the shipment?
We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation. We are also able to deliver goods to your forwarder in China if you need.
5. How about the warranty?
1 Year warranty.
6. Do you test all your goods?
A: Yes, we have professional engineer to test all devices before shipping.
7. What if machine not work during warranty?
Technical support avaliable,if can't fixed, replacement or return with full refund acceptable.
8. How about your main products?
Our product lines include Switches, Routers, Server, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
9. What brand of products do you offer?
A: We can provide all common brands in the market
