| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | AirEngine 5776-56T |
Description
The AirEngine 5776-56T is a tri-frequency, six-stream Wi-Fi 7 (802.11be) ceiling-mounted access point (AP) in Huawei's AirEngine 5700 series. It employs a tri-band concurrent architecture of 2.4GHz (2×2) + 5GHz-L (2×2) + 5GHz-H (2×2), achieving a peak data rate of 6.45Gbps. It features a built-in smart antenna and Bluetooth maintenance module, emphasizing dual 5G traffic offloading, high concurrency, strong anti-interference, and high cost-effectiveness. It is specifically designed for high-density 5G terminal scenarios such as offices, universities, stadiums, and large conferences.

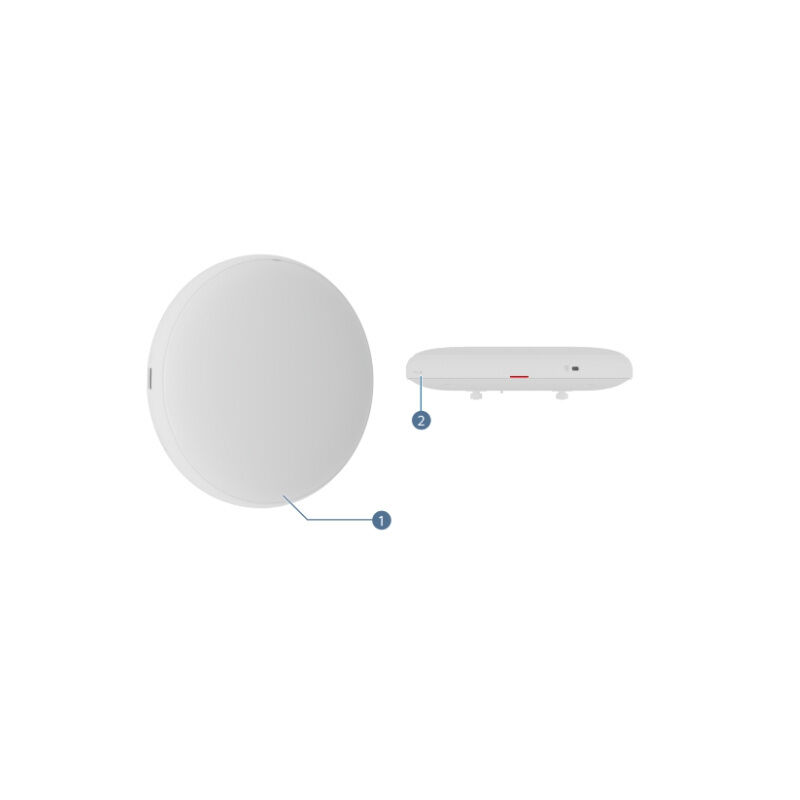

Pictures
Specification
| Category | Detailed specifications |
| Model | AirEngine 5776-56T |
| Form | Circular ceiling/wall mounted; Size: Φ 220 × 45mm; Weight: ≈ 0.75kg |
| Wireless Configuration | 2.4GHz (2x2 MIMO, 689Mbps), 5GHz-L (2x2 MIMO, 2.88Gbps), 5GHz-H (2x2 MIMO, 2.88Gbps); The peak speed of the whole machine is 6.45Gbps; 6 Space Flow |
| Uplink Interface | 1 × 5GE electrical port (802.3at/af PoE power supply), 1 × GE electrical port, Bluetooth 5.2 |
| Antenna | Built in dual frequency common interface smart antenna; Automatic beamforming, 100% increase in signal strength at the same location for |
| Power Supply | Typical power consumption ≈ 21W; supports DC 12V ± 10%/802.3at/af PoE dual power supply |
| Maximum Users | 1800 (600 per RF, subject to environmental fluctuations) |
| Wireless Features | Wi‑Fi 7(802.11be)； MLO multi link aggregation; 4096QAM； 160MHz bandwidth; 802.11r fast roaming; MU‑MIMO |
| Management Mode | Fit AP (AC management) Fat AP, Cloud management, Leader AP (AC free local cluster) |
| Environment | Working temperature: -10 ℃ to+50 ℃; Storage: -40~70 ℃; Humidity 5% -95% (no condensation) |
Our Service
100% Low Price Guarantee:
networks-equipments.com provides high-quality products at low wholesale prices
100% Quality Assurance:
All items are brand new and factory-sealed.For added assurance, each unit can be fully tested and verified to be in perfect working condition by engineer—upon your request.
100% Money Back Guarantee:
If your returns meet our relevent standards,you can contact our customer service team to exchange or return any product that you bought from us.
Professional Technical Support:
networks-equipments.com experienced technical team can provide support over the phone, by chat, by email or by remotely login.
FAQ
1. Why choose us?
We are the leading Chinese supplier of quality networking equipments and we have over 10 years experience in this field.
2. What's the quality of the products?
All the items are brand original.
3. How to place an order?
After customer confirm the order , we will create an order as your request. We accept many terms of trade such as T/T,Wester,Union, Alibaba Orders, Alipy and etc.
4. How about the shipment?
We deliver products by FEDEX, DHL, ARAMEX, EMS, UPS, TNT and Air shipping & Ocean transportation. We are also able to deliver goods to your forwarder in China if you need.
5. How about the warranty?
1 Year warranty.
6. Do you test all your goods?
A: Yes, we have professional engineer to test all devices before shipping.
7. What if machine not work during warranty?
Technical support avaliable,if can't fixed, replacement or return with full refund acceptable.
8. How about your main products?
Our product lines include Switches, Routers, Server, SFP Modules, OLTs, SDHs, Network Modules, Interface Cards, Security Firewalls, Wireless AP etc.
9. What brand of products do you offer?
A: We can provide all common brands in the market
