| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | USG6580E-AC |

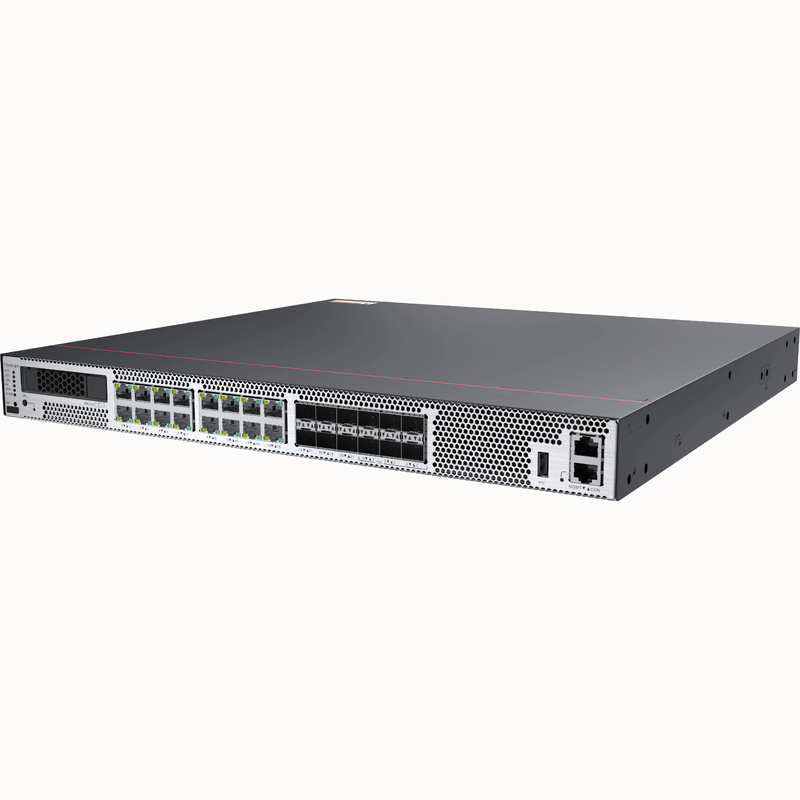

USG6580E-AC 02352CBS Enterprise Rackmount Security Gateway AI Multi-port Firewall
Description
Huawei HiSecEngine USG6600E series next-generation firewalls are designed for medium- and large-sized enterprises, institutions, and next-generation data centers. USG6600E firewalls provide NGFW capabilities and collaborate with other security devices to proactively defend against network threats, enhance border detection capabilities, and resolve performance deterioration problems. They provide pattern matching and encryption/decryption service processing acceleration capabilities, which greatly improve the performance of firewalls, security detection, and IPSec services.
| Description | Part Number | Model | First supported version |
|---|---|---|---|
| USG6580E AC Host (2*GE WAN + 8*GE Combo + 16*GE RJ45 + 2*10GE SFP+,1 AC power) | 02352CBS | USG6580E-AC | V600R006C00 |
Pictures
Specification
| Item | Specification |
|---|---|
| Installation Type |
|
| Cabinet installation standard | Cabinet with a depth of 600 mm or above |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 220 mm x 550 mm x 530 mm (8.66 in. x 21.65 in. x 20.87 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 8.1 kg (17.86 lb) |
| Weight without packaging [kg(lb)] | 5.71 kg (12.59 lb) |
| CPU | 1 CPU, 4 cores/CPU, up to 1.4 GHz |
| Memory | 4 GB DDR4 ECC memory |
| NOR Flash | 32 MB |
| NAND Flash | 2 GB |
| Hard disk | Optional. M.2 SSD (240GB/960GB), hot-swappable. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| Typical power consumption [W] | 32.4 W |
| Maximum power consumption [W] | 46.4 W |
| Maximum heat dissipation [BTU/hour] | 158.7 BTU/hour |
| MTBF [years] | 45.56 years |
| MTTR [hours] | 2 hours |
| Availability | 0.999995 |
| Power supply mode | AC pluggable |
| Number of power modules | 1 |
| Redundant power supply | Two power modules are supported for 1+1 power redundancy. |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 2 A/power module |
| Rated output power [W] | 60W/12V |
| Maximum output power [W] | 60 W/power module |
| Types of fans | Pluggable |
| Number of fan modules | 1 |
| Automatic fan speed adjustment | Supported |
| Heat dissipation mode | The fan module locates at the air exhaust of the system. |
| Airflow direction | Front-to-back airflow |
| Noise at normal temperature (acoustic power) [db(A)] | ≤55dB(A) |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C |
| Storage temperature [°C(°F)] | -40°C to 70°C |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0 m to 5000 m |
| Storage altitude [m(ft.)] | 0 m to 5000 m |
