Description
Huawei HiSecEngine USG6500E series next-generation firewalls are enterprise-class firewalls designed for small and medium-sized enterprises and chain organizations. In addition to basic NGFW capabilities, the HiSecEngine USG6500E series can interwork with other security devices to proactively defend against network threats, enhance border detection capabilities, effectively defend against advanced threats, and resolve performance deterioration problems. The product provides pattern matching and accelerated encryption/decryption service processing, which significantly improves the performance of processing content security detection and IPSec services.

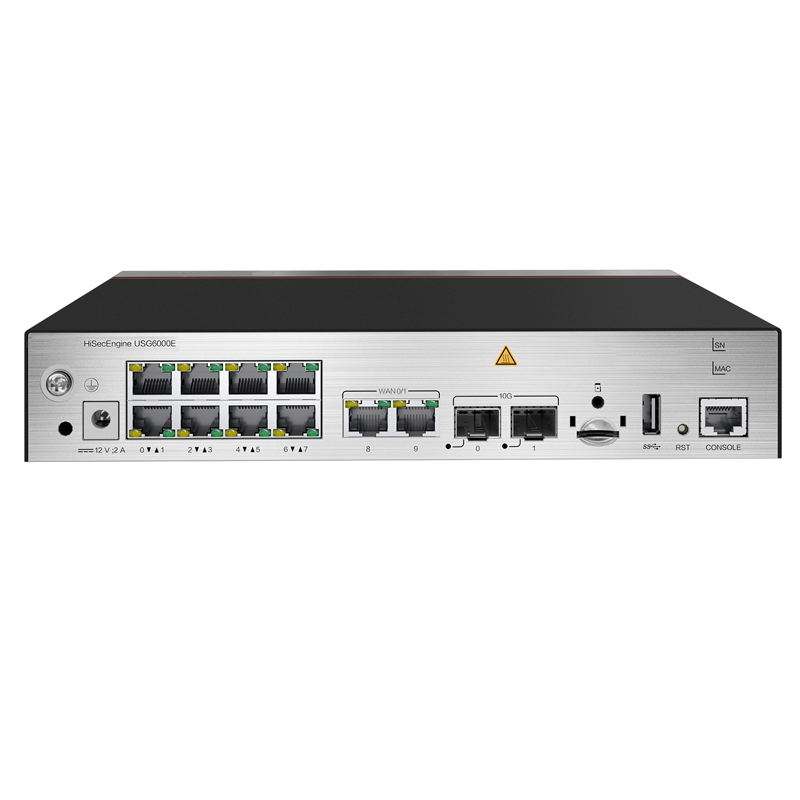

Pictures
![]()
Specification
| Item | Specification |
|---|---|
| Installation Type |
|
| Cabinet installation standard | Cabinet with a depth of 300 mm or above |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 110 mm x 470 mm x 335 mm (4.33 in. x 18.5 in. x 13.19 in.) |
| Chassis height [U] | 1 U |
| Weight with packaging [kg(lb)] | 2.3 kg (5.07 lb) |
| Weight without packaging [kg(lb)] | 1.57 kg (3.46 lb) |
| CPU | 1 CPU, 4 cores/CPU, up to 1.2 GHz |
| Memory | 2 GB DDR4 ECC memory |
| NOR Flash |
|
| NAND Flash | 2 GB |
| Hard disk | Optional. Purchase one 64-GB micro SD card from Huawei as required. |
| Console port | RJ45 |
| Eth Management port | RJ45 |
| Typical power consumption [W] | 17 W |
| Maximum power consumption [W] | 22.3 W |
| Maximum heat dissipation [BTU/hour] | 76.08 BTU/hour |
| MTBF [years] | 57.29 years |
| MTTR [hours] | 2 hours |
| Availability | 0.999996 |
| Power supply mode | Power adapter external |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 1 A/power module |
| Rated output power [W] | 36W/12V |
| Maximum output power [W] | 36 W/power module |
| Types of fans | None |
| Number of fan modules | 0 |
| Heat dissipation mode | Has no fan and uses natural cooling. |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C |
| Storage temperature [°C(°F)] | -40°C to 70°C |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | 0 m to 5000 m |
| Storage altitude [m(ft.)] | 0 m to 5000 m |
![]()
