USG6636F AC Host Network Firewall 02356NLG 02356NLK Huawei Firewall

Name: USG6636F AC Host Network Firewall 02356NLG 02356NLK Huawei Firewall
Brand: Chongqing Yujia Technology Co., Ltd.
SKU: USG6636F
Price: 3,550.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CQC
Model Number:	USG6636F

Detail Information

Place of Origin:

China

Brand Name:

Huawei

Certification:

CQC

Model Number:

USG6636F

Product Name:

USG6636F

Type:

Firewalls

PoE:

Not Supported

Highlight:

High Light

Highlight:

USG6636F AC Host Network Firewall

AC Host Network Firewall 02356NLG

02356NLK Huawei Firewall

Trading Information

Minimum Order Quantity:

1 unit

Price:

3400-3700USD

Packaging Details:

Original brand carton

Delivery Time:

7 work days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

1000 units

Product Description

USG6636F-AC 02356NLG 02356NLK AC Host Network Firewall

Description

HiSecEngine USG6500F series AI firewalls are new-generation AI firewalls launched by Huawei for small enterprises, industry branches, and chain business organizations. With unique content detection engine (CDE), the USG6500F series can detect viruses with over 100 layers of compression and multi-layer hidden viruses. Through integrated deployment of the network and security controllers, network and security policies can be configured and delivered in a unified manner, reducing OPEX by 80%.

Pictures

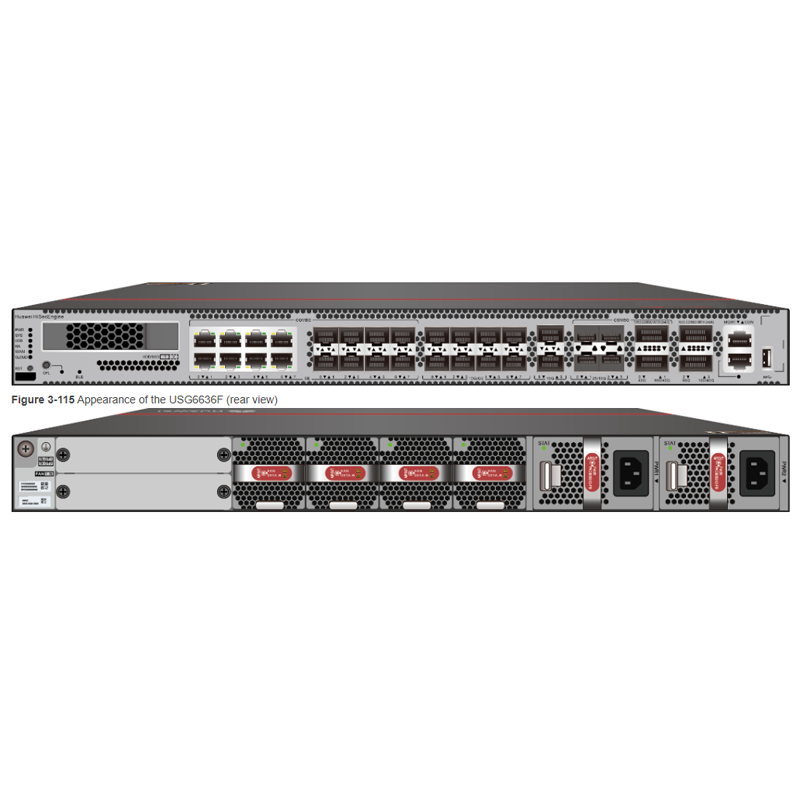

USG6636F AC Host Network Firewall 02356NLG 02356NLK Huawei Firewall 0

Specification

Item	Specification
Installation Type	Rack
Cabinet installation standard	Cabinet with a depth of 600 mm or above
Dimensions without packaging (H x W x D) [mm(in.)]	Typical dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442 mm x 420 mm (1.72 in. x 17.4 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 43.6 mm x 442 mm x 470 mm (1.72 in. x 17.4 in. x 18.5 in.)
Dimensions with packaging (H x W x D) [mm(in.)]	185 mm x 550 mm x 650 mm (7.28 in. x 21.65 in. x 25.59 in.)
Chassis height [U]	1 U
Weight with packaging [kg(lb)]	USG6636F-AC (02356NLG): 11.005 kg (24.26 lb) USG6636F-DC (02356NLK): 9.673 kg (21.33 lb)
Weight without packaging [kg(lb)]	USG6636F-AC (02356NLG): 8.035 kg (17.71 lb) USG6636F-DC (02356NLK): 6.703 kg (14.78 lb)
CPU	One CPU, 16 cores/CPU, 2.0 GHz dominant frequency
Memory	DDR4 32GB with ECC
NOR Flash	64 MB
NAND Flash	4GB
Hard disk	Optional. You can purchase a 2.5-inch SATA hard disk from Huawei based on the site requirements. The hard disk is hot swappable. For details, see the description of HDD and SDD in Storage Devices > Hard Disk.
Console port	RJ45
Eth Management port	RJ45
Typical power consumption [W]	USG6636F-AC (02356NLG): 137.6 W USG6636F-DC (02356NLK): 129.2 W
Typical heat dissipation [BTU/hour]	USG6636F-AC (02356NLG): 469.51 BTU/hour USG6636F-DC (02356NLK): 440.85 BTU/hour
Maximum power consumption [W]	USG6636F-AC (02356NLG): 183 W USG6636F-DC (02356NLK): 178 W
Maximum heat dissipation [BTU/hour]	USG6636F-AC (02356NLG): 624.42 BTU/hour USG6636F-DC (02356NLK): 607.36 BTU/hour
MTBF [years]	37.04 years
MTTR [hours]	1.62 hours
Availability	USG6636F-AC (02356NLG): 0.999997 USG6636F-DC (02356NLK): 0.999998
Power supply mode	USG6636F-AC (02356NLG): AC pluggable USG6636F-DC (02356NLK): DC pluggable
Number of power modules	2
Redundant power supply	1+1
Rated input voltage [V]	USG6636F-AC (02356NLG): AC: 100 V to 240 V, 50 Hz/60 Hz High-voltage DC: 240 V, DC USG6636F-DC (02356NLK): +48 V DC -48 V DC to -60 V DC
Input voltage range [V]	USG6636F-AC (02356NLG): AC: 90 V to 290 V, 45 Hz to 65 Hz High-voltage DC: 190–290 V, DC USG6636F-DC (02356NLK): +40 V DC to +57 V DC -38.4 V DC to -72 V DC
Maximum input current [A]	USG6636F-AC (02356NLG): 8 A/power module USG6636F-DC (02356NLK): 12 A/power module
Rated output power [W]	USG6636F-AC (02356NLG): 600W/12V USG6636F-DC (02356NLK): 400 W/12 V
Maximum output power [W]	USG6636F-AC (02356NLG): 600 W/power module USG6636F-DC (02356NLK): 400 W/power module
Types of fans	Pluggable
Number of fan modules	4
Automatic fan speed adjustment	Supported
Heat dissipation mode	Absorbing cold air into the device
Airflow direction	Front-to-back airflow
Redundant fans	3+1
PoE	Not supported
Noise at normal temperature (acoustic power) [db(A)]	≤72dB(A)
Long-term operating temperature [°C(°F)]	Without HDDs: 0°C to 45°C (32°F to 113°F) With HDDs: 5°C to 40°C (41°F to 104°F)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Storage environment	ETSI EN 300 019-1-1 Class 1.2 NOTE: The product has a valid storage period of one year. The valid storage period refers to the period during which the product maintains the required quality when stored with packing materials in an environment that meets the preceding requirements.
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating altitude [m(ft.)]	Without HDDs: 0 m to 5000 m (0 ft to 16404 ft) With HDDs: 0 m to 3000 m (0 ft to 9843 ft)
Storage altitude [m(ft.)]	0 m to 5000 m (0 ft to 16404 ft)

USG6636F AC Host Network Firewall 02356NLG 02356NLK Huawei Firewall 1
