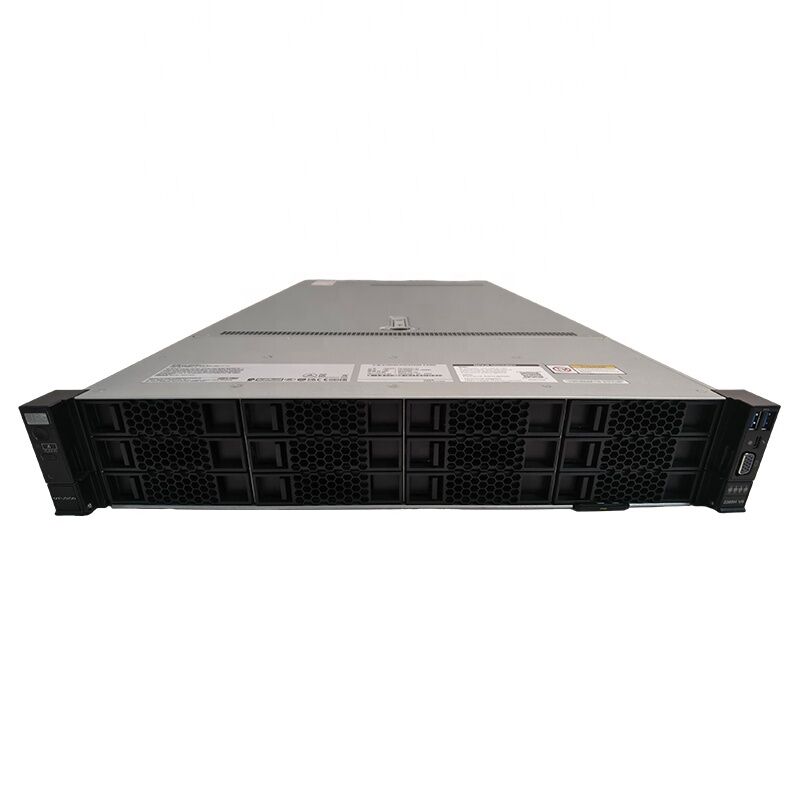

High Performance XFusion FusionServer 2488H V7 2U Rack Server
Description
FusionServer 2488H is a newly launched 2U 4-socket rack server, suitable for cloud computing, virtualization, high-performance computing (HPC), databases, SAP HANA, and other computationally intensive scenarios. Compared to two 2U 2-socket rack servers, 2488H V6 can bring more OPEX savings in virtualization application scenarios. 2488H V6 can be configured with four third-generation Intel® Xeon® Scalable processors, 48 DDR4 memory slots, 11 PCIe expansion slots, and up to 25 additional 2.5" local storage resources within a 2U space. Integrated with patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and optionally equipped with FusionDirector full lifecycle management software, it can effectively reduce operational costs and enhance return on investment.
Pictures
Specification
|
Server Model
|
2488H V6
|
|
Form Factor
|
2U rack server
|
|
|
2 or 4 x 3rd Gen Intel® Xeon® Scalable processors (5300/6300/8300 series), TDP up to 250 W
|
|
Local storage
|
Supports hot-pluggable drives with the following configuration options:
• 8 x 2.5'' front SAS/SATA drives
• 24 x 2.5'' front SAS/SATA drives
• 25 x 2.5'' front SAS/SATA drives
• 4 x 2.5'' front SAS/SATA drives and 8 x 2.5'' NVMe SSDs
• 4 x 2.5'' front SAS/SATA drives and 16 x 2.5'' NVMe SSDs
• 24 x 2.5'' front NVMe SSDs1 Flash storage: 2 M.2 SSDs
|
|
RAID support
|
RAID 0, 1, 1E, 5, 50, 6, or 60; optional supercapacitor for cache power-off protection; RAID-level migration, drive roaming,
self-diagnosis, and web-based remote configuration
|
|
LOM network port
|
1 x OCP 3.0 NIC (optional): 2 x GE/10GE/25GE/100GE ports, supporting hot swap, NC-SI, WOL, and PXE
1 Wi-Fi module (optional): allowing mobile terminals to connect to the iBMC in wireless mode
|
|
PCIe extensions
|
Up to 11 PCIe 3.0 slots, including one dedicated PCIe slot for the OCP 3.0 NIC
|
|
Management
|
Huawei iBMC integrates one dedicated management GE network port to provide comprehensive management features such as fault
diagnosis, automated O&M, and hardware security hardening.
• iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management interface based on HTML5/
VNC KVM; supports CD-free deployment and the Agentless feature for smart and simplified management.
• (Optional) Configured with the Huawei FusionDirector management software to provide advanced management features such as
stateless computing, batch OS deployment, and automated firmware upgrade, enabling automatic entire-lifecycle management
|
|
Operating system (OS)
|
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, CentOS, Citrix XenServer, and VMware ESXi.
|
|
Security
|
Power-on password, administrator password, TCM/TPM 2.0, security front panel, and out-of-box intrusion alarm, etc
|
|
Heterogeneous accelerator card
|
2 dual-slot FHFL or 4 single-slot HHHL GPU heterogeneous accelerator cards. For details, visit
|
|
Fan Modules
|
6 hot-swappable fan modules in N+1 redundancy mode
|
|
Height X Width X Depth
|
Chassis: 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.)
|
|
Power Supply Units
|
2 hot-swappable PSUs with support for 1+1 redundancy and the following configuration options:
• 3000 W AC Titanium PSUs 2500 W (input: 200 V to 220 V AC) 2900 W (input: 220 V to 230 V AC) 3000 W (input: 230 V to 240 V AC)
• 2000 W AC Platinum PSUs 1800 W (input: 200 V to 220 V AC, or 192 V to 200 V DC) 2000 W (input: 220 V to 240 V AC, or 200 V to
288 V DC)
• 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC)
• 1500 W HVDC PSUs (input: 260 V to 400 V AC)
• 2200 W DC PSUs (input: -38.4 V to -72 V DC)
• 1200 W DC PSUs (input: -38.4 V to -72 V DC)
|
