| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | USG12000-H6 |

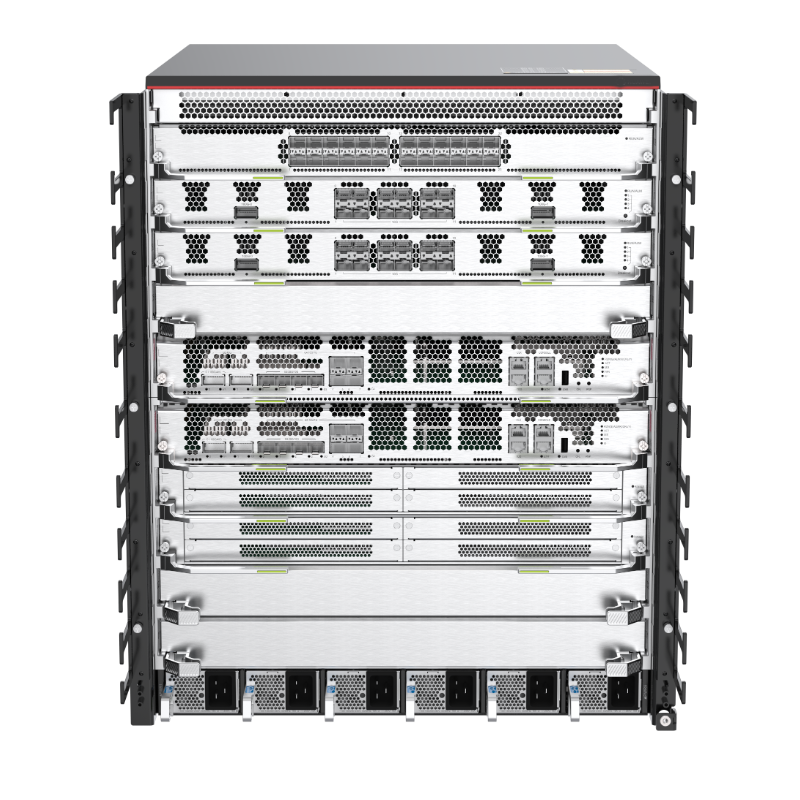

USG12000-H6 02356EDB HiSecEngine USG12000 Series AI Firewalls
Description
The HiSecEngine USG12000 series is the industry's first terabit-level Artificial Intelligence (AI) firewall launched by Huawei for mitigating known and unknown threats at the network edge in real-time. It is typically deployed at the egress of cloud computing data centers, large enterprises, and campus networks to provide industry-leading protection capabilities.
An advanced hardware architecture design and an array of energy conservation technologies slash energy consumption, while a full lineup of Line Interface Processing Units (LPUs) — with a per-slot interface density of up to 18 x 100 GE — meets heavy-bandwidth traffic requirements.
The series provides comprehensive, carrier-grade high-reliability architecture, supporting a multitude of reliability mechanisms, such as dual Main Processing Unit (MPU) backup, Hot Standby (HSB), Non-Stop Routing (NSR), and Graceful Restart (GR). A hardware-based software integrity check mechanism prevents unauthorized software from running, ultimately building a secure foundation for the network.
With terabit-level service processing power and a suite of security features — covering Network Address Translation (NAT), Carrier-Grade NAT (CGN), Virtual Private Network (VPN), virtualization, and content security — HiSecEngine USG12000 equips enterprises to handle the heavy bandwidth traffic and diverse service threats of the intelligent era.
Pictures
Specification
| Item | Specification |
|---|---|
| Cabinet installation standard | A66E |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 670 mm x 730 mm x 770 mm (26.38 in. x 28.74 in. x 30.31 in.) |
| Chassis height [U] | 8.8 U |
| Weight with packaging [kg(lb)] | 57.3 kg (126.32 lb) |
| Weight without packaging [kg(lb)] | 33.6 kg (74.07 lb) |
| Weight with packaging (full configuration) [kg(lb)] | 92.22 kg (203.31 lb) |
| Weight without packaging (full configuration) [kg(lb)] | 68.52 kg (151.06 lb) |
| Typical power consumption [W] |
2492 W (2 x MPUA + 4 x (4CPU SPUG) + 2 x LPU (16 x 100G + 24 x 10G)) NOTE:
You can use Info-Finder's Hardware Configuration tool to determine the power consumption of a device according to its card configuration. |
| Typical heat dissipation [BTU/hour] | 8503 BTU/hour (2 x MPUA + 4 x (4CPU SPUG) + 2 x LPU (16 x 100G + 24 x 10G)) |
| Maximum power consumption [W] |
3714 W (2 x MPUA + 4 x (4CPU SPUG) + 2 x LPU (16 x 100G + 24 x 10G)) NOTE:
You can use Info-Finder's Hardware Configuration tool to determine the power consumption of a device according to its card configuration. |
| Maximum heat dissipation [BTU/hour] | 12672 BTU/hour (2 x MPUA + 4 x (4CPU SPUG) + 2 x LPU (16 x 100G + 24 x 10G)) |
| MTBF [years] | 23.42 years |
| MTTR [hours] | 1 hours |
| Availability | 0.9999958912 |
| Power supply mode |
|
| Number of power modules | 6 |
| Redundant power supply |
|
| Maximum number of power chassis inputs | 6 |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] |
DC: 63 A/power module AC/HVDC: 10 A/power module (02314NCE), 16 A/power module (02314MKN) |
| Types of fans | Pluggable |
| Number of fan modules | 2 |
| Heat dissipation mode | Absorbing cold air into the device |
| Airflow direction | Front-to-back |
| Number of slots | 8 |
| Number of main control board slots | 2 |
| Number of LPU slots | 2 |
| Number of SPU slots | 4 |
| LPU/SPU Slot direction | Horizontal |
| Redundant MPUs | The control and switching units work in 1:1 hot backup mode. |
| Redundant fans | Fan modules support hot backup. At normal temperature, the system can still work properly for a short period of time after a single fan module fails. However, you are advised to replace the faulty fan module immediately. |
| Noise at normal temperature (acoustic power) [db(A)] | ≤78.0 dB(A) |
| Long-term operating temperature [°C(°F)] | –5°C to +45°C (23°F to 113°F) at an altitude of –60 m to 1800 m (–197 ft. to 5906 ft.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Storage environment |
ETSI EN 300 019-1-1 Class 1.2 NOTE:
|
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–197 ft to +16404 ft) |
| Storage altitude [m(ft.)] | ≤ 5000 m (16404 ft.) |
