USG12008 02353ESC Huawei Usg Firewall Hisecengine USG12000 Pluggable

Name: USG12008 02353ESC Huawei Usg Firewall Hisecengine USG12000 Pluggable
Brand: Chongqing Yujia Technology Co., Ltd.
SKU: USG12008
Price: 15,625.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CQC
Model Number:	USG12008

Detail Information

Place of Origin:

China

Brand Name:

Huawei

Certification:

CQC

Model Number:

USG12008

Product Name:

USG12008

Type:

Firewalls

Types Of Fans:

Pluggable

Airflow Direction:

Airflow Direction

Number Of Slots:

Highlight:

High Light

Highlight:

02353ESC Huawei Usg Firewall

USG12008 Huawei Usg Firewall

Hisecengine USG12000 Pluggable

Trading Information

Minimum Order Quantity:

1 unit

Price:

12250-19000USD

Packaging Details:

Original brand carton

Delivery Time:

7 work days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

1000 units

Product Description

USG12008 02353ESC Hisecengine USG12000 Series Ai Firewall Appliance

Description

The HiSecEngine USG12000 series is the industry's first terabit-level Artificial Intelligence (AI) firewall launched by Huawei for mitigating known and unknown threats at the network edge in real-time. It is typically deployed at the egress of cloud computing data centers, large enterprises, and campus networks to provide industry-leading protection capabilities.
An advanced hardware architecture design and an array of energy conservation technologies slash energy consumption, while a full lineup of Line Interface Processing Units (LPUs) — with a per-slot interface density of up to 18 x 100 GE — meets heavy-bandwidth traffic requirements.

The series provides comprehensive, carrier-grade high-reliability architecture, supporting a multitude of reliability mechanisms, such as dual Main Processing Unit (MPU) backup, Hot Standby (HSB), Non-Stop Routing (NSR), and Graceful Restart (GR). A hardware-based software integrity check mechanism prevents unauthorized software from running, ultimately building a secure foundation for the network.
With terabit-level service processing power and a suite of security features — covering Network Address Translation (NAT), Carrier-Grade NAT (CGN), Virtual Private Network (VPN), virtualization, and content security — HiSecEngine USG12000 equips enterprises to handle the heavy bandwidth traffic and diverse service threats of the intelligent era.

Pictures

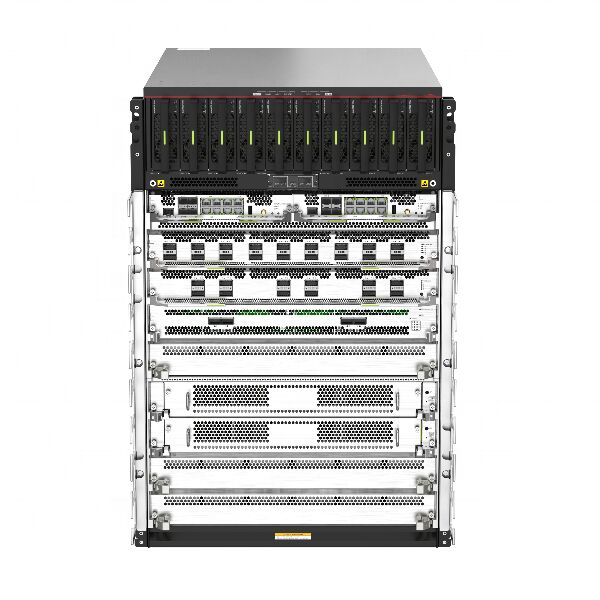

USG12008 02353ESC Huawei Usg Firewall Hisecengine USG12000 Pluggable 0

USG12008 02353ESC Huawei Usg Firewall Hisecengine USG12000 Pluggable 1

Specification

Item	Specification
Cabinet installation standard	The device can be installed in a standard 19" cabinet with a depth not less than 1000 mm. It can be equipped with a noise reduction module if being installed in a 1200 mm-deep cabinet. By default, the 0.6m (wide) x 1.2 m (deep) x 2.2 m (high) Huawei A612 cabinet (part number: 02116249) is installed. You can also choose the 0.6m (wide) x 1.0 m (deep) x 2.2 m (high) Huawei A610 cabinet (part number: 02116250) with a convex front door. The front door of the cabinet must be equipped with an air filter, but the rear door of the cabinet cannot be equipped with any air filter. (If an air filter is installed on the rear door, uninstall it.)
Dimensions without packaging (H x W x D) [mm(in.)]	703 mm x 442 mm x 874 mm (27.68 in. x 17.4 in. x 34.41 in.) (dimensions of the chassis body) 703 mm x 483 mm x 985 mm (27.68 in. x 19.02 in. x 38.78 in.) (including the chassis front and rear decorating parts and cable tray)
Dimensions with packaging (H x W x D) [mm(in.)]	990 mm x 770 mm x 1150 mm (38.98 in. x 30.31 in. x 45.28 in.)
Chassis height [U]	15.8 U
Weight with packaging [kg(lb)]	164.8 kg (363.32 lb)
Weight without packaging [kg(lb)]	USG12008-AC-B01 (02353ESC): 94 kg (207.23 lb) USG12008-AC-B03 (02354BVC): 95.8 kg (211.2 lb) USG12008-AC-B03 (02354BVC-001): 95.8 kg (211.2 lb) USG12008-AC-B05 (02354TFW): 95.8 kg (211.2 lb) USG12008-AC-B05 (02355FYT): 129.2 kg (284.83 lb) USG12008-DC-B01 (02353ESE): 100 kg (220.46 lb) USG12008-DC-B03 (02354BVJ): 101.8 kg (224.43 lb) USG12008-DC-B03 (02354BVJ-001): 101.8 kg (224.43 lb) USG12008-DC-B05 (02354TXD): 101.8 kg (224.43 lb) USG12008-DC-B05 (02355GBN): 134.4 kg (296.3 lb)
Weight with packaging (full configuration) [kg(lb)]	USG12008-AC-B01 (02353ESC): 255.6 kg (563.5 lb) USG12008-AC-B03 (02354BVC): 255.6 kg (563.5 lb) USG12008-AC-B03 (02354BVC-001): 255.6 kg (563.5 lb) USG12008-AC-B05 (02354TFW): 255.6 kg (563.5 lb) USG12008-AC-B05 (02355FYT): 255.6 kg (563.5 lb) USG12008-DC-B01 (02353ESE): 259.6 kg (572.31 lb) USG12008-DC-B03 (02354BVJ): 259.6 kg (572.31 lb) USG12008-DC-B03 (02354BVJ-001): 259.6 kg (572.31 lb) USG12008-DC-B05 (02354TXD): 259.6 kg (572.31 lb) USG12008-DC-B05 (02355GBN): 259.6 kg (572.31 lb)
Weight without packaging (full configuration) [kg(lb)]	USG12008-AC-B01 (02353ESC): 244.3 kg (538.58 lb) USG12008-AC-B03 (02354BVC): 244.3 kg (538.58 lb) USG12008-AC-B03 (02354BVC-001): 244.3 kg (538.58 lb) USG12008-AC-B05 (02354TFW): 244.3 kg (538.58 lb) USG12008-AC-B05 (02355FYT): 244.3 kg (538.58 lb) USG12008-DC-B01 (02353ESE): 248.3 kg (547.4 lb) USG12008-DC-B03 (02354BVJ): 248.3 kg (547.4 lb) USG12008-DC-B03 (02354BVJ-001): 248.3 kg (547.4 lb) USG12008-DC-B05 (02354TXD): 248.3 kg (547.4 lb) USG12008-DC-B05 (02355GBN): 248.3 kg (547.4 lb)
Typical power consumption [W]	4536 W (2 x MPUD + 4 x (SPUB + SPCB, 4 CPUs in total) + 4 x LPU (12 x 100G + 24 x 10G) + 4 x SFUA) NOTE: You can use Info-Finder's Hardware Configuration tool to determine the power consumption of a device according to its card configuration.
Typical heat dissipation [BTU/hour]	15477 BTU/hour (2 x MPUD + 4 x (SPUB + SPCB, 4 CPUs in total) + 4 x LPU (12 x 100G + 24 x 10G) + 4 x SFUA)
Maximum power consumption [W]	8836 W (2 x MPUD + 4 x (SPUB + SPCB, 4 CPUs in total) + 4 x LPU (12 x 100G + 24 x 10G) + 4 x SFUA) NOTE: You can use Info-Finder's Hardware Configuration tool to determine the power consumption of a device according to its card configuration.
Maximum heat dissipation [BTU/hour]	30148 BTU/hour (2 x MPUD + 4 x (SPUB + SPCB, 4 CPUs in total) + 4 x LPU (12 x 100G + 24 x 10G) + 4 x SFUA)
MTBF [years]	29.80 years
MTTR [hours]	1 hours
Availability	0.999996
Power supply mode	USG12008-AC-B01 (02353ESC): AC built-in HVDC built-in USG12008-AC-B03 (02354BVC): AC built-in HVDC built-in USG12008-AC-B03 (02354BVC-001): AC built-in HVDC built-in USG12008-AC-B05 (02354TFW): AC built-in HVDC built-in USG12008-AC-B05 (02355FYT): Built-in AC built-in HVDC USG12008-DC-B01 (02353ESE): DC built-in USG12008-DC-B03 (02354BVJ): DC built-in USG12008-DC-B03 (02354BVJ-001): DC built-in USG12008-DC-B05 (02354TXD): DC built-in USG12008-DC-B05 (02355GBN): Built-in DC PM
Number of power modules	2
Redundant power supply	N+1
Maximum number of power chassis inputs	10
Rated input voltage [V]	USG12008-AC-B01 (02353ESC): AC: 220 V, 50 Hz/60 Hz High-voltage DC: 240 V/380 V USG12008-AC-B03 (02354BVC): AC: 220 V, 50 Hz/60 Hz High-voltage DC: 240 V/380 V USG12008-AC-B03 (02354BVC-001): AC: 220 V, 50 Hz/60 Hz High-voltage DC: 240 V/380 V USG12008-AC-B05 (02354TFW): AC: 220 V; 50 Hz/60 Hz High-voltage DC (HVDC): 240 V/380 V USG12008-AC-B05 (02355FYT): AC: 220 V; 50 Hz/60 Hz High-voltage DC (HVDC): 240 V/380 V USG12008-DC-B01 (02353ESE): -48 V/-60 V USG12008-DC-B03 (02354BVJ): -48 V/-60 V USG12008-DC-B03 (02354BVJ-001): -48 V/-60 V USG12008-DC-B05 (02354TXD): -48 V/-60 V USG12008-DC-B05 (02355GBN): -48 V/-60 V
Input voltage range [V]	USG12008-AC-B01 (02353ESC): AC: 176–290 V; 45–65 Hz High-voltage DC (HVDC): 188 V to 288 V or 260 V to 400 V USG12008-AC-B03 (02354BVC): AC: 176–290 V; 45–65 Hz High-voltage DC (HVDC): 188 V to 288 V or 260 V to 400 V USG12008-AC-B03 (02354BVC-001): AC: 176–290 V; 45–65 Hz High-voltage DC (HVDC): 188 V to 288 V or 260 V to 400 V USG12008-AC-B05 (02354TFW): AC: 176–290 V; 45–65 Hz High-voltage DC (HVDC): 188 V to 288 V or 260 V to 400 V USG12008-AC-B05 (02355FYT): AC: 176–290 V; 45–65 Hz High-voltage DC (HVDC): 188 V to 288 V or 260 V to 400 V USG12008-DC-B01 (02353ESE): -40 V to -72 V USG12008-DC-B03 (02354BVJ): -40 V to -72 V USG12008-DC-B03 (02354BVJ-001): -40 V to -72 V USG12008-DC-B05 (02354TXD): -40 V to -72 V USG12008-DC-B05 (02355GBN): -40 V to -72 V
Maximum input current [A]	USG12008-AC-B01 (02353ESC): AC: 16 A/power module @ 200 V; 18.5 A/power module @ 176 V High-voltage DC (HVDC): 18 A/power module @ 188 V; 13 A/power module @ 260 V USG12008-AC-B03 (02354BVC): AC: 16 A/power module @ 200 V; 18.5 A/power module @ 176 V High-voltage DC (HVDC): 18 A/power module @ 188 V; 13 A/power module @ 260 V USG12008-AC-B03 (02354BVC-001): AC: 16 A/power module @ 200 V; 18.5 A/power module @ 176 V High-voltage DC (HVDC): 18 A/power module @ 188 V; 13 A/power module @ 260 V USG12008-AC-B05 (02354TFW): AC: 16 A/power module @ 200 V; 18.5 A/power module @ 176 V High-voltage DC (HVDC): 18 A/power module @ 188 V; 13 A/power module @ 260 V USG12008-AC-B05 (02355FYT): AC: 16 A/power module @ 200 V; 18.5 A/power module @ 176 V High-voltage DC (HVDC): 18 A/power module @ 188 V; 13 A/power module @ 260 V USG12008-DC-B01 (02353ESE): 58.5 A/power module @ -40 V USG12008-DC-B03 (02354BVJ): 58.5 A/power module @ -40 V USG12008-DC-B03 (02354BVJ-001): 58.5 A/power module @ -40 V USG12008-DC-B05 (02354TXD): 58.5 A/power module @ -40 V USG12008-DC-B05 (02355GBN): 58.5 A/power module @ -40 V
Types of fans	Pluggable
Number of fan modules	3
Heat dissipation mode	Absorbing cold air into the device
Airflow direction	Front-to-back
Number of slots	32
Number of main control board slots	2
Number of SFU slots	6
Number of LPU/SPU slots	8
LPU/SPU Slot direction	Horizontal
Redundant MPUs	1:1
Redundant Switch fabrics	3+1
Redundant fans	2+1
Long-term operating temperature [°C(°F)]	0°C to 40°C (32°F to 104°F)
Storage temperature [°C(°F)]	–40°C to +70°C (–40°F to +158°F)
Storage environment	ETSI EN 300 019-1-1 Class 1.2 NOTE: The product has a valid storage period of one year. The valid storage period refers to the period during which the product maintains the required quality when stored with packing materials in an environment that meets the preceding requirements.
Long-term operating relative humidity [RH]	5% RH to 85% RH, non-condensing
Storage relative humidity [RH]	5% RH to 85% RH, non-condensing
Long-term operating altitude [m(ft.)]	≤ 5000 m (16404 ft.)
Storage altitude [m(ft.)]	≤ 5000 m (16404 ft.)

USG12008 02353ESC Huawei Usg Firewall Hisecengine USG12000 Pluggable 2
