Cloudengine Huawei S7706 Enterprise Campus Switch 3.84Tbps 1152Mpps

Name: Cloudengine Huawei S7706 Enterprise Campus Switch 3.84Tbps 1152Mpps
Brand: Chongqing Yujia Technology Co., Ltd.
SKU: S7703
Price: 7,833.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CQC
Model Number:	S7703

Detail Information

Place of Origin:

China

Brand Name:

Huawei

Certification:

CQC

Model Number:

S7703

Product Name:

Enterprise Campus Switch

Maximum Number Of 100GE Ports:

Dimensions (W X D X H):

442×441×585 Mm

Feature:

VLAN,QoS,ACL、CAR、Remark

Forwarding Rate:

1152Mpps/2880Mpps

Switching Capacity:

3.84Tbps/5.12Tbps

Highlight:

High Light

Highlight:

Cloudengine Huawei S7706

S7706 Enterprise Campus Switch

Enterprise Campus Switch 3.84Tbps 1152Mpps

Trading Information

Minimum Order Quantity:

1 unit

Price:

6300-9366 USD

Packaging Details:

Original brand carton

Delivery Time:

7 work days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

1000 units

Product Description

Cloudengine S7706 02113305 Enterprise Campus Switch 3.84Tbps 1152Mpps

Description

Huawei S7706 is an enterprise-level intelligent routing switch launched by Huawei, positioned at the core layer or aggregation layer of enterprise networks, and belongs to the S7700 series of Layer 3 switches. This Enterprise Campus Switch adopts a modular hardware architecture, supports redundant power supply design, and is equipped with 6 service slots. It can flexibly expand ports and functional modules according to requirements, and is suitable for data scheduling and management in medium and large complex network environments.
The Enterprise Campus Switch supports Layer 3 routing function and IEEE 802.3 series network protocols, with transmission rates covering 10M/100M/1000Mbps, and adopts store-and-forward switching mode. The backplane bandwidth can reach up to 19.84Tbps, with a peak packet forwarding rate of 26,400 MPPS. It is equipped with intelligent network optimization functions such as QoS policies, MPLS VPN, and controllable multicast. Some versions support POE power supply with a maximum power of 8800W

Pictures

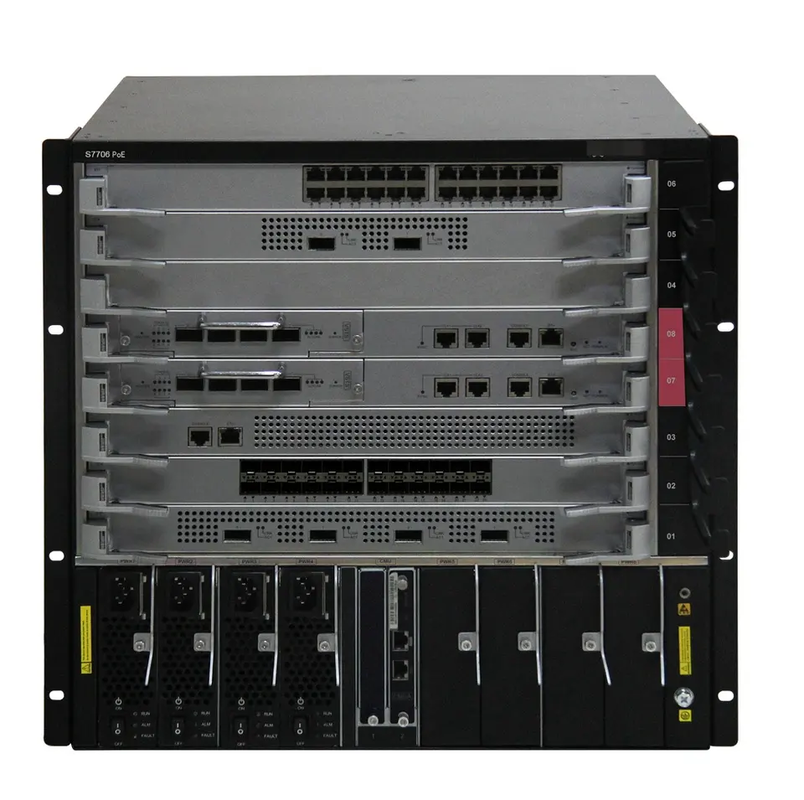

Cloudengine Huawei S7706 Enterprise Campus Switch 3.84Tbps 1152Mpps 0

Specification

Height[mm]	441.7 mm
Depth[mm]	585 mm
Wide[mm]	442 mm
Chassis height[U]	10
Weight without packaging[kg(lb)]	15 kg (33.07 lb)
Maximum power consumption[W]	2200
Heat dissipation mode	Absorb air
Maximum heat dissipation[BTU/hour]	7506.62
Input voltage range[V]	- DC input: 1600 W DC power module: -38.4 V DC to -72 V DC 2200 W DC power module: -40 V DC to -72 V DC - AC input: 90 V AC to 290 V AC, 47 Hz to 63 Hz (The maximum output power reduces by a half when the input voltage ranges from 90 V AC to 175 V AC.) - High-voltage DC input (3000 W AC power module): 190 V DC to 290 V DC
Rated input voltage[V]	- DC input: –48 V DC or –60 V DC - AC input: 110 V AC/220 V AC, 50/60 Hz - High-voltage DC input (3000 W AC power module): 240 V DC
Number of SFU slots	N/A
Number of MPU slots	2
Number of service board slots	6
Number of PoE power slots	4
Number of system power slots	4
Number of power slots	8
Redundant fans	2 fan trays
Redundant power supply	System power supply area: 4 (2:2) PoE power supply area: 4(M+N)/PoE switch 0/non-PoE switch
Redundant CMUs	Active-standby redundancy
Redundant MPUs	The control unit works in hot standby mode, and the switching unit works in 1 + 1 load sharing mode.
Redundant Switch fabrics	N/A
Automatic fan speed adjustment	Supported
Noise at normal temperature (acoustic power)[dB(A)]	≤ 72
Airflow direction	Left-to-back airflow
Storage temperature[°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Long-term operating temperature[°C(°F)]	0°C to +45°C (32°F to 113°F) at an altitude of -60 m to +1800 m (-197 ft. to 5906 ft.)
Restriction on the operating temperature variation rate[°C(°F)]	When the altitude is 1800-4000 m (5906-13123 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Long-term operating relative humidity[RH]	5% to 95%, noncondensing
Storage altitude[m(ft.)]	< 5000 m (16404 ft.)
Long-term operating altitude[m(ft.)]	-60 m to + 4000 m (-197 ft. to 13123 ft.)
MTBF[year]	24.2
MTTR[hour]	2
Availability	0.9999959
Maximum number of 100GE ports	36
Maximum number of 40GE ports	72
Maximum number of 25GE ports	0
Maximum number of 10GE ports	288
Maximum number of GE ports	288
Power supply surge protection	- 800 W AC power module, AC power port: ±4 kV in common mode and ±2 kV in differential mode - 2200 W AC power module, AC power port: ±4 kV in common mode and ±2 kV in differential mode - 3000 W AC power module, AC power port: ±6 kV in common mode and ±6 kV in differential mode - 2200 W DC power module, DC power port: ±4 kV in common mode and ±2 kV in differential mode - 1600 W DC power module, DC power port: ±2 kV in common mode and ±1 kV in differential mode
PoE	Supported
Relationship between PoE and system power modules	PoE power modules are independent from system power modules
Maximum PoE output power per slot	PoE chassis: Versions earlier than V200R013C00: 1440 W V200R013C00 and later versions: 1776 W Non-PoE chassis: 0 W
Maximum number of PoE ports per slot	48
Maximum PoE output power[W]	PoE switch: 9000 W Non-PoE switch: 0 W

Cloudengine Huawei S7706 Enterprise Campus Switch 3.84Tbps 1152Mpps 1
