CE8850-HAM 02354WBD 32*100GE QSFP28 Switch 8*400GE QSFPDD Huawei Switch

CE8850-HAM 02354WBD 32100GE QSFP28 Switch 8400GE QSFPDD Huawei Switch

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CQC
Model Number:	CE8850-HAM

Detail Information

Place of Origin:

China

Brand Name:

Huawei

Certification:

Model Number:

CE8850-HAM

Product Name:

Enterprise Data Center Switch

Part Number:

02354WBF 02354WBD 02354WBE

Switching Capacity:

19.2 Tbps

Downlink Service Interface:

32*100GE QSFP28, 8*400GE QSFPDD

Heat Dissipation Mode:

Air Cooling

Feature:

VXLAN BGP EVPN M-LAG 3.0

Highlight:

High Light

Highlight:

CE8850-HAM 02354WBD

32*100GE QSFP28 Switch

8*400GE QSFPDD Huawei Switch

Trading Information

Minimum Order Quantity:

1 unit

Price:

5600-7100 USD

Packaging Details:

Original brand carton

Delivery Time:

7 work days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

1000 units

Product Description

CE8850-HAM 02354WBD 32*100GE QSFP28 Enterprise Data Center Switch 8*400GE QSFPDD

Description

CE8850-HAM is one of the models of Huawei's CloudEngine 8800 series data center switches, belonging to the high-performance routing switch product line. It supports 100G/400G high-speed transmission and large-scale virtualization functions. This Data Center Switch is suitable for large-scale data centers, cloud computing and enterprise-level network scenarios, providing high-density ports and flexible virtualization capabilities. Youdaoplaceholder0 Integrate virtualization technologies (such as NSLB, DPFR) to simplify network management. The switching capacity of this Data Center Switch is 19.2 Tbps. The port configuration provides 32 downlink ports of 40G/100G or 200G, as well as 8 uplink ports of 400G. It supports advanced data center functions such as VXLAN, BGP EVPN, M-LAG 3.0, and Telemetry intelligent operation and maintenance

Pictures

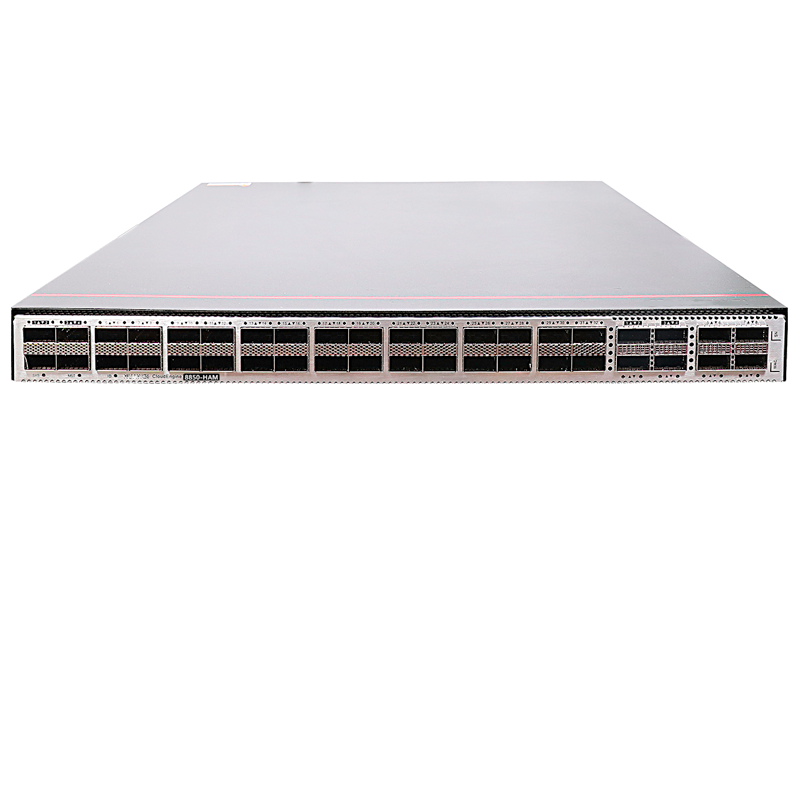

CE8850-HAM 02354WBD 32*100GE QSFP28 Switch 8*400GE QSFPDD Huawei Switch 0

Specification

Other part numbers	02354WBD (CE8850-HAM switch (32100GE QSFP28, 8400GE QSFPDD,without fan and power modules)(CM)) 02354WBE (CE8850-HAM switch (32100GE QSFP28, 8400GE QSFPDD, 2AC power modules, 6fan modules, port-side intake)(CM))
Installation Type	Cabinet installation
Depth[mm]	600 mm
Chassis height[U]	1
Wide[mm]	442 mm
Height[mm]	43.6 mm
Weight with packaging[kg(lb)]	13.4 kg (29.54 lb)
Weight without packaging[kg(lb)]	9.1 kg (excluding optical modules, power modules, and fan modules)
Maximum power consumption[W]	- 32 x 200G + 8 x 400G: 1152 W (100% traffic load, 6.5 W 200G optical modules on all downlink ports, 12 W 400G optical modules on all uplink ports, high temperature of 40°C, dual power modules) - 32 x 100G + 8 x 400G: 973 W (100% traffic load, 5 W 100G optical modules on all downlink ports, 12 W 400G optical modules on all uplink ports, high temperature of 40°C, dual power modules)
Typical power consumption[W]	- 32 x 200G + 8 x 400G: 590 W (50% throughput, copper cables on all ports, normal temperature, dual power modules) - 32 x 100G + 8 x 400G: 560 W (50% throughput, copper cables on all ports, normal temperature, dual power modules), 693 W (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules)
Static power consumption[W]	455 W
Heat dissipation mode	Air cooling
Maximum heat dissipation[BTU/hour]	- 32 x 200G + 8 x 400G: 3927 BTU/hour (100% traffic load, all downlink ports with 6.5 W 200G optical modules, all uplink ports with 12 W 400G optical modules, 40°C, dual power modules) - 32 x 100G + 8 x 400G: 3323 BTU/hour (100% traffic load, all downlink ports with 5 W 100G optical modules, all uplink ports with 12 W 400G optical modules, 40°C, dual power modules)
Typical heat dissipation[BTU/hour]	- 32 x 200G + 8 x 400G: 2013 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules) - 32 x 100G + 8 x 400G: 1912 BTU/hour (50% throughput, copper cables on all ports, normal temperature, dual power modules); 2363 BTU/hour (50% throughput, short-distance optical modules on all ports, normal temperature, dual power modules)
Static heat dissipation[BTU/hour]	1757 BTU/hour
Power supply mode	AC pluggable,DC pluggable,HVDC pluggable
Rated input voltage[V]	- 1200 W AC or 240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC - 1200 W DC power module: –48 V DC: –48 V DC to –60 V DC; +48 V DC: +48 V DC
Input voltage range[V]	- 1200 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC - 1200 W DC power module: -48 V DC: -38.4 V DC to -72 V DC; +48 V DC: +38.4 V DC to +60 V DC
Maximum input current[A]	1200 W AC&240 V DC power modules: - 10 A (100 V AC to 130 V AC) - 8 A (200 V AC to 240 V AC) - 8 A (240 V DC) 1200 W DC power module: 38 A
Rated output power[W]	- 1200 W AC&240 V DC power module: 1200 W - 1200 W DC power module: 1200 W
Memory	DRAM: 8 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	The USB port can connect to a USB flash drive for deployment, log backup, configuration file transfer, and file upgrade. The USB port can only connect to a USB flash drive that complies with USB 2.0. Note: This port is available in V300R025C00 and later versions. USB flash drives from different vendors differ in compatibility and drivers. If a USB flash drive cannot be used, replace it with another one from a mainstream vendor.
Console port	RJ45
Downlink Service interface	32 x 100GE QSFP28/32 x 200GE QSFP56
Uplink Service interface	8 x 400GE QSFP-DD
Service port supporting the stack function	Reserved function. This function is not enabled.
RTC	Supported
Switching capacity[bps,bit/s]	For more details, see the datasheet/brochure or contact product sales personnel. You can obtain the datasheet/brochure from the following link: https://e.huawei.com/en/products/switches/data-center-switches
Redundant fans	The device supports 5+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Redundant power supply	1+1 backup
Number of power modules	2
Power supply surge protection	AC power supply protection: 6 kV in common mode and 6 kV in differential mode 240 V HVDC power supply protection: 4 kV in common mode and 2 kV in differential mode –48 V DC power supply protection: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fan modules	6
Airflow direction	Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
Storage temperature[°C(°F)]	-40ºC to +70ºC (-40°F to +158°F)
Long-term operating temperature[°C(°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage relative humidity[RH]	5% RH to 95% RH, non-condensing
Long-term operating relative humidity[RH]	5% RH to 95% RH, non-condensing
Storage altitude[m(ft.)]	≤ 5000 m (16404 ft.)
Long-term operating altitude[m(ft.)]	≤ 5000 m (16404 ft.)
MTBF[year]	21.59 years
MTTR[hour]	1.5 hours
Noise at high temperature (40°C, sound pressure)	- Front-to-back airflow: 71.8 dB(A) on average (maximum: 78.3 dB(A)) - Back-to-front airflow: 74.5 dB(A) on average (maximum: 78.9 dB(A))
Noise at normal temperature (27°C, sound pressure)	- Front-to-back airflow: 56.5 dB(A) on average (maximum: 61.7 dB(A)) - Back-to-front airflow: 58.7 dB(A) on average (maximum: 62.9 dB(A))
Availability	0.9999920679

CE8850-HAM 02354WBD 32*100GE QSFP28 Switch 8*400GE QSFPDD Huawei Switch 1
