| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |

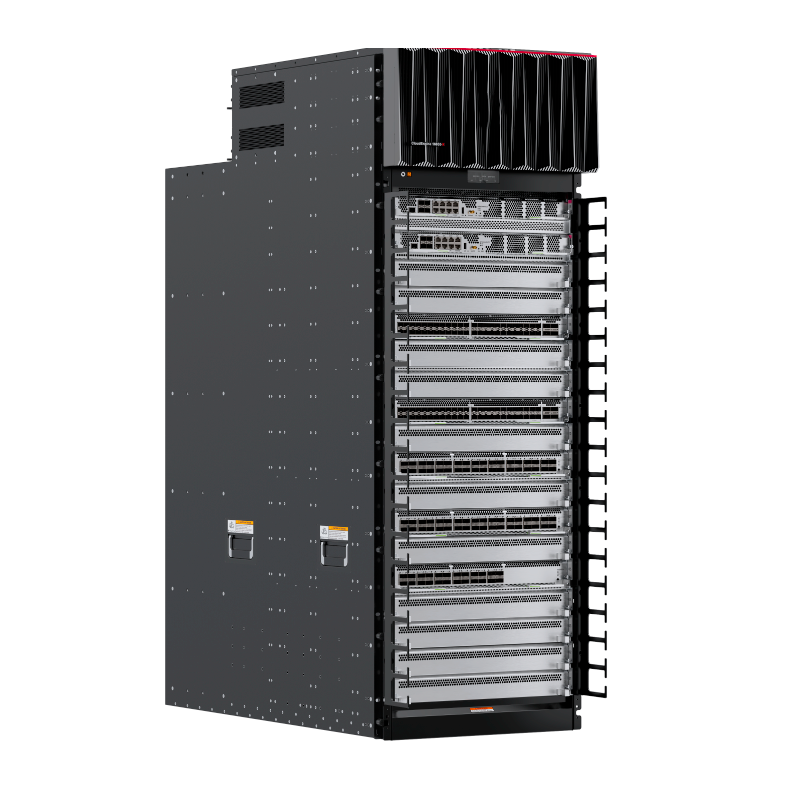

| Model Number: | NetEngine 8000 X16 |
Description
Huawei NetEngine 8000 series enterprise service router provide an all-service, intelligent router platform designed for the cloud era.
Using ultra-broadband pipes to construct simplified networks, and Segment Routing (SR) and Segment Routing over IPv6 (SRv6) protocols to establish intelligent connections, NetEngine 8000 combines with Huawei's next generation Network Cloud Engine (NCE) to implement full-lifecycle automation and proactive Operations and Maintenance (O&M). An intent-driven approach frees customers from unnecessary constraints, unleashing network potential.
Available in a range of form factors and applicable to core, aggregation, and access networks, the award-winning NetEngine 8000 enterprise service router offers high performance and reliability, with low power consumption and full evolution capabilities. Applications include functioning as a core node for an enterprise Wide Area Network (WAN), as an access node on a large enterprise network, as a Data Center Interconnect (DCI) node, or as a campus or Internet Data Center (IDC) network egress.
Pictures
Specification
| Item | Specification |
|---|---|
| Cabinet installation standards |
|
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 1695 mm x 770 mm x 1350 mm (66.73 in. x 30.31 in. x 53.15 in.) |
| Chassis height [U] | 32.3U |
| Weight without packaging [kg(lb)] | 204.1 kg (449.96 lb) |
| Weight with packaging [kg(lb)] | 326.6 kg (720.02 lb) |
| Weight without packaging (full configuration) [kg(lb)] |
[LPUI-4T boards are fully configured]: 681.1kg (1501.6 lb) [LPUI-14.4T boards are fully configured]: 727.7 kg (1604.3 lb) NOTE:
The weight of a device can be estimated based on the board configuration using Info-Finder Hardware Configuration. |
| Typical power consumption (with configuration) [W] |
24015 W (LPUI-4T boards are fully configured) 35965 W (LPUI-14.4T boards are fully configured) NOTE:
The power consumption of a device can be estimated based on the board configuration using Info-Finder Hardware Configuration. |
| Typical heat dissipation (with configuration) [BTU/hour] |
[estimated value when LPUI-4T boards are fully configured]: 77913 BTU/hour [estimated value when LPUI-14.4T boards are fully configured]: 116684 BTU/hour NOTE:
The heat dissipation of a device can be estimated based on the board configuration using Info-Finder Hardware Configuration. |
| MTBF [year] | 18.53 year |
| MTTR [hour] | 0.5 hour |
| Availability | 0.99999 |
| Power supply mode | DC |
| Maximum number of power chassis inputs | (40 channels/PEM) x 1 PEM = (2 channels/PM) x 20 PMs = 40 channels |
| Rated input voltage [V] | –48/–60 V |
| Input voltage range [V] | –40 V to –72 V |
| Maximum input current [A] |
2200 W DC PM: 58.5 A/PM 3000 W DC PM: 82 A/PM 4000 W DC PM: 113 A/PM |
| Maximum input cable size [mm²] | 35 mm² |
| Front-end circuit breaker/fuse [A] |
2200 W DC PM: 2 x 63 A per PM, 20 PMs, up to 40 x 63 A for the entire chassis 3000 W DC PM: 2 x 100 A per PM, 20 PMs, up to 40 x 100 A for the entire chassis 4000 W DC PM: 2 x 125 A per module, 20 PMs, up to 40 x 125 A for the entire chassis |
| Heat dissipation mode | air cooling |
| Airflow direction | Front-to-back airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | < 78 dB(A) @ 27°C |
| Number of slots | 26 |
| Number of service board slots | 16 |
| Switching capacity |
43.29 Tbit/s (1T bundle) 86.57 Tbit/s (2T bundle) 346.30 Tbit/s (9.6T bundle) 692.60 Tbit/s (14.4T bundle) |
| Redundant MPUs | 1:1 |
| Redundant Switch fabrics | 7+1 |
| Redundant power supply | 19+1 |
| Redundant fans | Supports redundancy backup of a single fan. |
| Long-term operating temperature [°C(°F)] | 0°C to 40°C (32°F to 104°F) |
| Short-term operating temperature [°C(°F)] | –5°C to +50°C (23°F to 122°F) |
| Restriction on the operating temperature variation rate [°C(°F)] | ≤ 0.5°C/min (32.9°F/min), non-condensing |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Storage environment |
ETSI EN 300 019-1-1 Class 1.2 NOTE:
|
| Long-term operating relative humidity [RH] | 5% RH to 85% RH, non-condensing |
| Short-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Storage relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | ≤ 4000 m (13123.36 ft.) (From 1800 m to 4000 m [5905.51 ft. to 13123.36 ft.], the operating temperature of the device decreases by 1°C [1.8°F] for every 220 m [721.78 ft.] increase in altitude.) |
| Storage altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
