CE8850-SAN 02354FPS Enterprise Data Center Switch 32*100GE QSFP28 Switch

Name: CE8850-SAN 02354FPS Enterprise Data Center Switch 32*100GE QSFP28 Switch
Brand: Chongqing Yujia Technology Co., Ltd.
SKU: CE8850-SAN
Price: 5,550.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CQC
Model Number:	CE8850-SAN

Detail Information

Place of Origin:

China

Brand Name:

Huawei

Certification:

CQC

Model Number:

CE8850-SAN

Product Name:

Enterprise Data Center Switch

Part Number:

02354FPS 02354FPS 02354FPT

Weight:

9.1 Kg

Downlink Service Interface:

32*100GE QSFP28

Heat Dissipation Mode:

Air Cooling

Memory:

DRAM: 8 GB

Highlight:

High Light

Highlight:

02354FPS Enterprise Data Center Switch

CE8850-SAN Enterprise Data Center Switch

32*100GE QSFP28 Switch

Trading Information

Minimum Order Quantity:

1 unit

Price:

5000-6100 USD

Packaging Details:

Original brand carton

Delivery Time:

7 work days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

1000 units

Product Description

CE8850-SAN 02354FPS Enterprise Data Center Switch 32*100GE QSFP28

Description

CE8850-SAN is a high-performance switch designed by Huawei for all-flash storage networks in data centers. Its core is to provide high-bandwidth and low-latency data exchange between storage system controllers, and it is specifically used to build stable and efficient storage networks.

This Data Center Switch is positioned as a data center storage network (SAN) switch, specifically optimized for all-flash environments, with a switching capacity of 19.2 Tbps. Packet forwarding rate: 7200 Mpps, port configuration for downlink: 32 100GE/200GE interfaces; Uplink: 8 400GE interfaces, supporting iLossless intelligent lossless algorithm, NOF+ technology, and M-LAG high-reliability architecture, used to achieve internal interconnection and data exchange between controllers of storage devices (such as multi-control storage systems)

Pictures

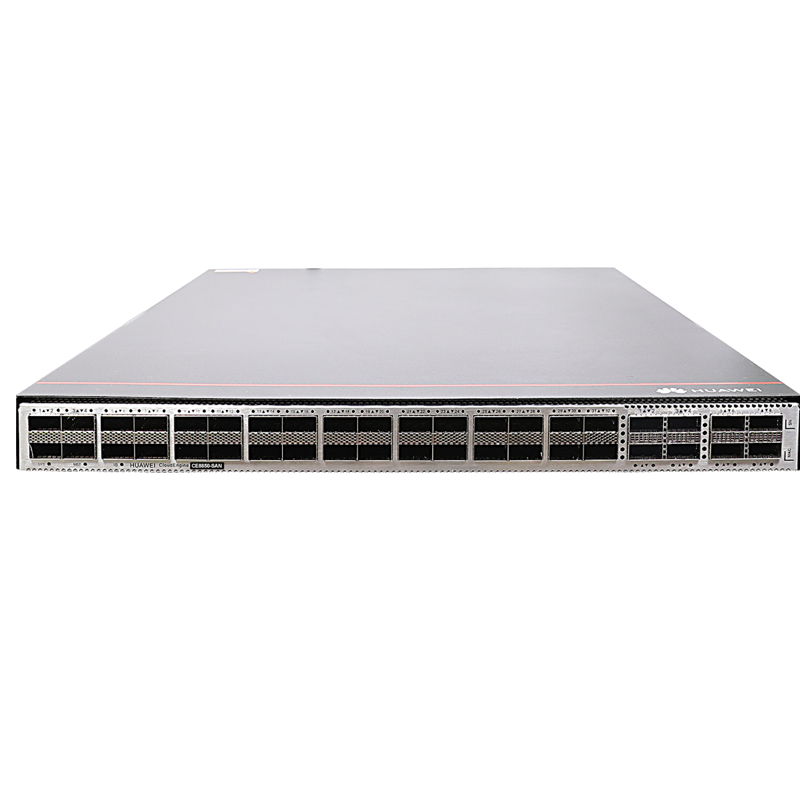

CE8850-SAN 02354FPS Enterprise Data Center Switch 32*100GE QSFP28 Switch 0

Specification

Other part numbers	02354FPS (CE8850-SAN switch (32100GE QSFP28, 2AC power modules, 6fan modules, port-side intake)) 02354FPT (CE8850-SAN switch (32100GE QSFP28, 2AC power modules, 6fan modules, port-side exhaust))
Installation Type	Cabinet Installation
Depth[mm]	600 mm
Chassis height[U]	1
Wide[mm]	442 mm
Height[mm]	43.6 mm
Weight with packaging[kg(lb)]	13.4 kg (29.54 lb)
Weight without packaging[kg(lb)]	9.1 kg (excluding optical modules, power modules, and fan modules)
Maximum power consumption[W]	- 32 x 200G + 8 x 400G: 1152 W (100% traffic load, 6.5 W 200G optical modules on all downlink ports, 12 W 400G optical modules on all uplink ports, high temperature of 40°C, dual power modules) - 32 x 100G + 8 x 400G: 973 W (100% traffic load, 5 W 100G optical modules on all downlink ports, 12 W 400G optical modules on all uplink ports, high temperature of 40°C, dual power modules)
Typical power consumption[W]	- 32x200G+8x400G: 590 W (50% traffic load, copper cables on all ports, normal temperature, dual power modules) - 32x100G+8x400G: 560 W (50% traffic load, copper cables on all ports, normal temperature, dual power modules); 693 W (50% traffic load, short-distance optical modules on all ports, normal temperature, dual power modules)
Static power consumption[W]	455 W
Heat dissipation mode	Air cooling
Maximum heat dissipation[BTU/hour]	- 32 x 200G + 8 x 400G: 3927 BTU/hour (100% traffic load, 6.5 W 200G optical modules on all downlink ports, 12 W 400G optical modules on all uplink ports, high temperature of 40°C, dual power modules) - 32 x 100G + 8 x 400G: 3323 BTU/hour (100% traffic load, 5 W 100G optical modules on all downlink ports, 12 W 400G optical modules on all uplink ports, high temperature of 40°C, dual power modules)
Typical heat dissipation[BTU/hour]	- 32 x 200G + 8 x 400G: 2013 BTU/hour (50% traffic load, copper cables on all ports, normal temperature, dual power modules) - 32 x 100G + 8 x 400G: 1912 BTU/hour (50% traffic load, copper cables on all ports, normal temperature, dual power modules), 2363 BTU/hour (50% traffic load, short-distance optical modules on all ports, normal temperature, dual power modules)
Static heat dissipation[BTU/hour]	1757 BTU/hour
Power supply mode	AC pluggable,DC pluggable,HVDC pluggable
Rated input voltage[V]	- 1200 W AC or 240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC - 1200 W DC power module: –48 V DC: –48 V DC to –60 V DC; +48 V DC: +48 V DC
Input voltage range[V]	- 1200 W AC&240 V DC power module: AC: 90 V AC to 290 V AC, 45 Hz to 65 Hz; DC: 190 V DC to 290 V DC - 1200 W DC power module: -48 V DC: -38.4 V DC to -72 V DC; +48 V DC: +38.4 V DC to +60 V DC
Maximum input current[A]	1200 W AC&240 V DC power modules: - 10 A (100 V AC to 130 V AC) - 8 A (200 V AC to 240 V AC) - 8 A (240 V DC) 1200 W DC power module: 38 A
Rated output power[W]	- 1200 W AC&240 V DC power module: 1200 W - 1200 W DC power module: 1200 W
Memory	DRAM: 8 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	The USB port can connect to a USB flash drive for deployment, log backup, configuration file transfer, and file upgrade. The USB port can only connect to a USB flash drive that complies with USB 2.0. Note: This port is available in V300R025C00 and later versions. USB flash drives from different vendors differ in compatibility and drivers. If a USB flash drive cannot be used, replace it with another one from a mainstream vendor.
Console port	RJ45
Downlink Service interface	32 x 100GE QSFP28/32 x 200GE QSFP56
Uplink Service interface	8 x 400GE QSFP-DD
Service port supporting the stack function	Reserved function. This function is not enabled.
RTC	Supported
Switching capacity[bps,bit/s]	For more details, see the datasheet/brochure or contact product sales personnel. You can obtain the datasheet/brochure from the following link: https://e.huawei.com/en/products/switches/data-center-switches
Redundant fans	The device supports 5+1 backup of fan modules that work in hot standby mode. The system can operate normally for a short time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Redundant power supply	1+1 backup
Number of power modules	2
Power supply surge protection	AC power protection: 6 kV in common mode and 6 kV in differential mode 240 V HVDC power protection: 4 kV in common mode and 2 kV in differential mode –48 V DC power supply protection: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fan modules	6
Airflow direction	Port-side air intake or port-side air exhaust, depending on the fan modules and power modules that are used. The fan modules and power modules must have the same airflow direction.
Storage temperature[°C(°F)]	-40ºC to +70ºC (-40°F to +158°F)
Long-term operating temperature[°C(°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage relative humidity[RH]	5% RH to 95% RH, non-condensing
Long-term operating relative humidity[RH]	5% RH to 95% RH, non-condensing
Storage altitude[m(ft.)]	≤ 5000 m (16404 ft.)
Long-term operating altitude[m(ft.)]	≤ 5000 m (16404 ft.)
MTBF[year]	21.59 years
MTTR[hour]	1.5 hours
Noise at high temperature (40°C, sound pressure)	- Front-to-back airflow: 71.8 dB(A) on average (maximum: 78.3 dB(A)) - Back-to-front airflow: 74.5 dB(A) on average (maximum: 78.9 dB(A))
Noise at normal temperature (27°C, sound pressure)	- Front-to-back airflow: 56.5 dB(A) on average (maximum: 61.7 dB(A)) - Back-to-front airflow: 58.7 dB(A) on average (maximum: 62.9 dB(A))
Availability	0.9999920679
