CE6820-48S6CQ-A 02356BBX Enterprise Data Center Switch 48*10G SFP+ Switch

Name: CE6820-48S6CQ-A 02356BBX Enterprise Data Center Switch 48*10G SFP+ Switch
Brand: Chongqing Yujia Technology Co., Ltd.
SKU: CE6820-48S6CQ-A
Price: 1,545.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CQC
Model Number:	CE6820-48S6CQ-A

Detail Information

Place of Origin:

China

Brand Name:

Huawei

Certification:

CQC

Model Number:

CE6820-48S6CQ-A

Product Name:

Enterprise Data Center Switch

Description:

48*10G SFP+, 6*100G QSFP28

Power Consumption:

282W

Switching Capacity:

2.56Tbps/40.96Tbps

Feature:

M-LAG ECN

Part Number:

02356BBX 02356BBV 02356BBY

Highlight:

High Light

Highlight:

CE6820-48S6CQ-A

02356BBX Enterprise Data Center Switch

48*10G SFP+ Switch

Trading Information

Minimum Order Quantity:

1 unit

Price:

1425-1665 USD

Packaging Details:

Original brand carton

Delivery Time:

7 work days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

1000 units

Product Description

CE6820-48S6CQ-A 02356BBX Enterprise Data Center Switch 48*10G SFP+, 6*100G QSFP28

Description

The CloudEngine 6820-A series is a new generation of high-performance and high-density 10GE access Enterprise Data Center Switch launched by Huawei for data centers. The CloudEngine 6820-A series adopts an advanced hardware structure design, providing industry-leading high-density 10GE port access, supporting 40GE/100GE uplink ports, and featuring a rich array of data center characteristics. The air duct direction can be flexibly selected. The CloudEngine 6820-A series Enterprise Data Center Switch can be used in conjunction with Huawei's core data center switch CloudEngine 16800 to build an elastic, virtual and high-quality 40GE/100GE fully connected network for cloud-era data centers, meeting the network requirements of cloud-era data centers. The CloudEngine 6820-A series Enterprise Data Center Switch are positioned for high-density 10GE access in data centers, helping enterprises and operators build data center network platforms for the cloud computing era. They can also be used as the core or aggregation of campus networks.

Pictures

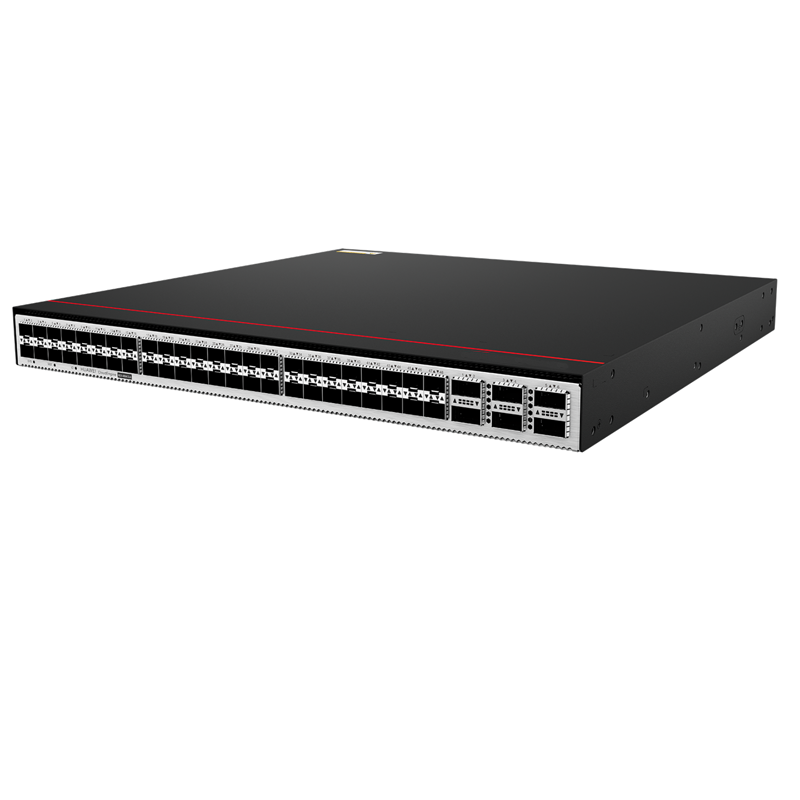

CE6820-48S6CQ-A 02356BBX Enterprise Data Center Switch 48*10G SFP+ Switch 0

Specification

Other part numbers	02356BBV (CE6820-48S6CQ-A switch, 4810G SFP+, 6100G QSFP28, without fan and power modules) 02356BBY (CE6820-48S6CQ-A switch, 4810G SFP+, 6100GE QSFP28, 2AC power modules, 4fan modules, port-side exhaust)
Installation Type	Cabinet installation
Depth[mm]	420.0 mm
Chassis height[U]	1
Wide[mm]	442.0 mm
Height[mm]	43.6 mm
Weight with packaging[kg(lb)]	9 kg (19.84 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging[kg(lb)]	5.6 kg (12.3 lb) (excluding optical modules, power modules, and fan modules)
Maximum power consumption[W]	282 W
Typical power consumption[W]	- 162 W (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) - 196 W (100% throughput, short-distance optical modules on all ports, dual power modules)
Static power consumption[W]	102 W
Heat dissipation mode	Air cooling
Maximum heat dissipation[BTU/hour]	962 BTU/hour
Typical heat dissipation[BTU/hour]	- 553 BTU/hour (100% throughput, SFP+ high-speed cables on 48 ports and QSFP28 high-speed cables on 6 ports, dual power modules) - 669 BTU/hour (100% throughput, short-distance optical modules on all ports, dual power modules)
Static heat dissipation[BTU/hour]	348 BTU/hour
Power supply mode	DC pluggable,AC pluggable,HVDC pluggable
Rated input voltage[V]	- 600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC - 1000 W DC power module: –48 V DC to –60 V DC - 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range[V]	- 600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC - 1000 W DC power module: –38.4 V DC to –72 V DC - 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current[A]	- 600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) - 1000 W DC power module: 30 A (–48 V DC to –60 V DC) - 1200 W high-voltage DC power module: 8 A
Rated output power[W]	- 600 W AC&240 V DC power module: 600 W - 1000 W DC power module: 1000 W - 1200 W high-voltage DC power module: 1200 W
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	2 GB
USB	Supported
Console port	RJ45
Downlink Service interface	48*10GE SFP+ (Note: 1. 10GE interfaces are compatible with GE; 2. The interfaces do not support 10GE LRM/80KM linear optical modules)
Uplink Service interface	6 x 100GE QSFP28 Note: 1. Each 100GE QSFP28 port can be configured to work at 40 Gbit/s. 2. A 100GE QSFP28 port cannot be split into 4 x 25GE or 4 x 10GE ports. 3. 100GE 1 m copper cables and 40GE 1/3/5 m copper cables are supported. Auto-negotiation of copper cables is not supported. 100GE and 40GE copper cables can only be used on M-LAG peer-link ports.
Service port supporting the stack function	10GE and 100GE optical ports
Switching capacity[bps,bit/s]	For more details, see the datasheet/brochure or contact product sales personnel. You can obtain the datasheet/brochure from the following link: https://e.huawei.com/en/products/switches/data-center-switches
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Redundant power supply	1+1 backup
Number of power modules	2
Power supply surge protection	- AC: 6 kV in common mode and 6 kV in differential mode - DC: 4 kV in common mode and 2 kV in differential mode - HVDC: 4 kV in common mode and 2 kV in differential mode
Number of fan modules	4
Airflow direction	Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules
Storage temperature[°C(°F)]	-40ºC to +70ºC (-40°F to +158°F)
Long-term operating temperature[°C(°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) Note: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Long-term operating relative humidity[RH]	5% RH to 95% RH, non-condensing
Storage altitude[m(ft.)]	≤ 5000 m (16404 ft.)
Long-term operating altitude[m(ft.)]	≤ 5000 m (16404 ft.)
MTBF[year]	45.48 years
MTTR[hour]	1.52 hours
Noise at high temperature (40°C, sound pressure)	- Front-to-back airflow: < 71 dB(A) - Back-to-front airflow: < 72 dB(A)
Noise at normal temperature (27°C, sound pressure)	- Front-to-back airflow: < 55 dB(A) - Back-to-front airflow: < 56 dB(A)
Availability	0.99999618

CE6820-48S6CQ-A 02356BBX Enterprise Data Center Switch 48*10G SFP+ Switch 1
