CE6881-48T6CQ-B 02353GLD 100ge Enterprise Network Switch 48X10 GE Base-T

Name: CE6881-48T6CQ-B 02353GLD 100ge Enterprise Network Switch 48X10 GE Base-T
Brand: Chongqing Yujia Technology Co., Ltd.
SKU: CE6881-48T6CQ-B
Price: 1,650.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CQC
Model Number:	CE6881-48T6CQ-B

Detail Information

Place of Origin:

China

Brand Name:

Huawei

Certification:

CQC

Model Number:

CE6881-48T6CQ-B

Product Name:

Network Enterprise Switch

Description:

48*10GE RJ45, 6*100GE QSFP28, 2*AC Power Modules, 4*fan Modules

Switching Capacity:

4.8Tbps/96Tbps

Packet Forwarding Rate:

2000Mpps

Feature:

VXLAN Routing, Bridging BGP-EVPN M-LAG PFC,ECN

Part Number:

02353GLD 02353GLC 02353GLB

Highlight:

High Light

Highlight:

CE6881-48T6CQ-B

100ge Enterprise Network Switch

02353GLD Enterprise Network Switch

Trading Information

Minimum Order Quantity:

1 unit

Price:

1500-1800 USD

Packaging Details:

Original brand carton

Delivery Time:

7 work days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

1000 units

Product Description

CE6881-48T6CQ-B 02353GLD 100ge Network Enterprise Switch 48 x 10 GE Base-T

Description

The CloudEngine 6881 series is a new generation of high-performance and high-density 10GE access Network Enterprise Switch launched by Huawei for data centers. The CloudEngine 6881 series adopts an advanced hardware structure design, providing high-density 10GE port access, supporting 40GE/100GE uplink ports, and featuring a rich array of data center characteristics. The air duct direction can be flexibly selected. The CloudEngine 6881 series Network Enterprise Switch can be used in conjunction with Huawei's core data center switches, CloudEngine 16800 or CloudEngine 12800, to build elastic virtual and high-quality 40GE/100GE fully connected networks for cloud-era data centers. Meet the network demands of data centers in the cloud era.
The CloudEngine 6881 series Network Enterprise Switch are positioned for high-density 10GE access in data centers, helping enterprises and operators build data center network platforms for the cloud computing era. They can also be used as the core or aggregation of campus networks.

Pictures

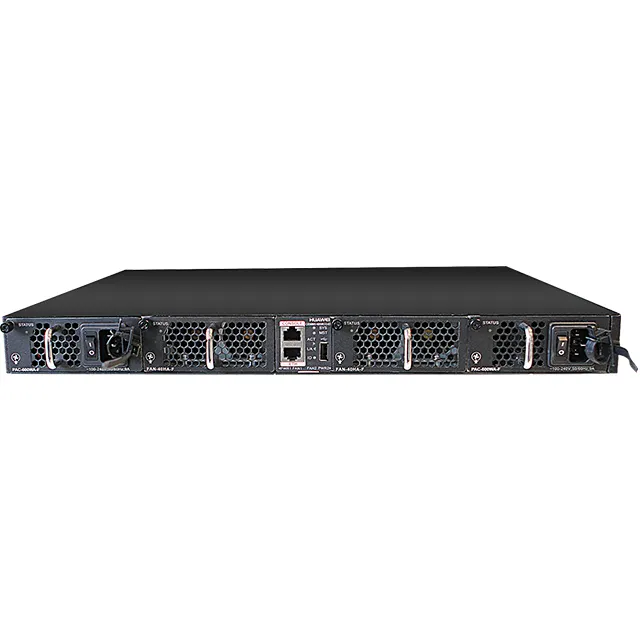

CE6881-48T6CQ-B 02353GLD 100ge Enterprise Network Switch 48X10 GE Base-T 0

Specification

Item	Specification
Dimensions with packaging (H x W x D) [mm (in.)]	175 mm x 650 mm x 550 mm (6.89 in. x 25.59 in. x 21.65 in.)
Dimensions without packaging (H x W x D) [mm (in.)]	Basic dimensions (the depth excludes the parts protruding from the body): 43.6 mm x 442.0 mm x 420.0 mm (1.72 in. x 17.40 in. x 16.54 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 446.1 mm (1.72 in. x 17.40 in. x 17.56 in.)
Weight without packaging [kg (lb)]	6.6 kg (14.55 lb) (excluding optical modules, power modules, and fan modules)
Weight without packaging (full configuration) [kg (lb)]	8.9 kg (19.62 lb) (including AC power modules and fan modules, but not including optical modules. If the device supports multiple models of modules, the heaviest modules are used for the measurement.)
Weight with packaging [kg (lb)]	10.4 kg (22.93 lb)
Weight with packaging (full configuration) [kg (lb)]	12.3 kg (27.12 lb)
Chassis height [U]	1 U
Installation Type	Cabinet installation
Switching capacity	For more details, see the datasheet/brochure or contact product sales personnel. You can obtain the datasheet/brochure from the following link: https://e.huawei.com/en/products/switches/data-center-switches
CPU	4-core, 1.4 GHz
Memory	DRAM: 4 GB
NOR Flash	64 MB
NAND Flash	4 GB
USB	Supported
Power supply mode	DC pluggable AC pluggable HVDC pluggable
Console port	RJ45
Downlink Service interface	48*10GE RJ45 (supporting only full-duplex)
Service port supporting the stack function	10G electrical port and 100G optical port
RTC	Supported
Typical power consumption [W]	347 W (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, dual power modules) 362 W (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, dual power modules)
Typical heat dissipation [BTU/hour]	1184 BTU/hour (50% throughput, 3 m Ethernet cables on 48 ports and QSFP28 high-speed cables on 6 ports, normal temperature, dual power modules) 1235 BTU/hour (50% throughput, 3 m Ethernet cables on 48 ports and short-distance optical modules on 6 ports, normal temperature, dual power modules)
Static power consumption [W]	235 W
Static heat dissipation [BTU/hour]	801 BTU/hour
Maximum power consumption [W]	452 W
Maximum heat dissipation [BTU/hour]	1542 BTU/hour
Number of power modules	2
Redundant power supply	1+1 backup
Rated input voltage [V]	600 W AC&240 V DC power module: 100 V AC to 240 V AC, 50/60 Hz; 240 V DC 1000 W DC power module: –48 V DC to –60 V DC 1200 W high-voltage DC power module: 240 V DC to 380 V DC
Input voltage range [V]	600 W AC&240 V DC power module: 90 V AC to 290 V AC, 45 Hz to 65 Hz; 190 V DC to 290 V DC 1000 W DC power module: –38.4 V DC to –72 V DC 1200 W high-voltage DC power module: 190 V DC to 400 V DC
Maximum input current [A]	600 W AC&240 V DC power module: 8 A (100 V AC to 240 V AC); 4 A (240 V DC) 1000 W DC power module: 30 A (–48 V DC to –60 V DC) 1200 W high-voltage DC power module: 8 A
Rated output power [W]	600 W AC&240 V DC power module: 600 W 1000 W DC power module: 1000 W 1200 W high-voltage DC power module: 1200 W
Certification	Compliance with safety standards Compliance with EMC standards Compliance with environment and environmental protection standards
Power supply surge protection [kV]	AC: 6 kV in common mode and 6 kV in differential mode DC: 4 kV in common mode and 2 kV in differential mode HVDC: 4 kV in common mode and 2 kV in differential mode
Types of fans	Pluggable
Number of fan modules	4
Redundant fans	The device supports 3+1 backup of fan modules that work in hot standby mode. The system can operate properly for a short period of time after a single fan module fails. You are advised to replace the faulty fan module immediately.
Heat dissipation mode	Air cooling
Airflow direction	Front-to-back or back-to-front airflow, depending on the selected fan modules and power modules
Availability	0.9999953209
MTBF [year]	48.16 years
Noise at normal temperature (27°C, sound pressure) [dB(A)]	Front-to-back airflow: 49 dB(A) on average; maximum: 52 dB(A) Back-to-front airflow: 50 dB(A) on average; maximum: 52 dB(A)
Noise at high temperature (40°C, sound pressure) [dB(A)]	Front-to-back airflow: 69 dB(A) on average; maximum: 74 dB(A) Back-to-front airflow: 67 dB(A) on average; maximum: 73 dB(A)
Long-term operating altitude [m (ft.)]	≤ 5000 m (16404 ft.)
Long-term operating relative humidity [RH]	5% RH to 95% RH, non-condensing
Long-term operating temperature [°C (°F)]	0°C to 40°C (32°F to 104°F) at an altitude of 0–1800 m (0–5906 ft.) NOTE: When the altitude is 1800–5000 m (5096–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).
Storage altitude [m (ft.)]	< 5000 m (16404 ft.)
Storage relative humidity [RH]	5% RH to 95% RH, non-condensing
Storage temperature [°C (°F)]	-40ºC to +70ºC (-40°F to +158°F)

CE6881-48T6CQ-B 02353GLD 100ge Enterprise Network Switch 48X10 GE Base-T 1
