S1730S-S24P4S-A1 24 Port POE Switch 98011323 4*GE SFP Switch

Name: S1730S-S24P4S-A1 24 Port POE Switch 98011323 4*GE SFP Switch
Brand: Chongqing Yujia Technology Co., Ltd.
SKU: S1730S-S24P4S-A1
Price: 176.00 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	Huawei
Certification:	CQC
Model Number:	S1730S-S24P4S-A1

Detail Information

Place of Origin:

China

Brand Name:

Huawei

Certification:

CQC

Model Number:

S1730S-S24P4S-A1

Product Name:

Ethernet 10G Switch

Port Detail:

24*10/100/1000BASE-T Ports 4*GE SFP Ports

Dimensions (W X D X H):

442×420×43.6mm

Number Of Ports:

Forwarding Rate:

42Mpps

Switching Capacity:

336Gbps

Highlight:

High Light

Highlight:

S1730S-S24P4S-A1 24 Port

24 Port POE Switch 98011323

4*GE SFP Switch

Trading Information

Minimum Order Quantity:

1 unit

Price:

165-187 USD

Packaging Details:

Original brand carton

Delivery Time:

7 work days

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability:

1000 units

Product Description

S1730S-S24P4S-A1 98011323 24*10/100/1000BASE-T ports Ethernet POE Switch 4*GE SFP ports

Description

The S1730S-S24P4S-A is an enterprise level Layer 2 Gigabit Ethernet switch launched by Huawei, which adopts a store and forward switching method and is suitable for small and medium-sized enterprise network environments. This switch provides 24 10/100/1000BASE-T Ethernet ports and 4 Gigabit SFP ports, supporting 10M/100M/1000Mbps transmission rates, with a backplane bandwidth of 336Gbps and a packet forwarding rate of 42Mpps. The device supports 4K VLAN partitioning, QoS traffic monitoring, MAC address learning and aging, and other functions

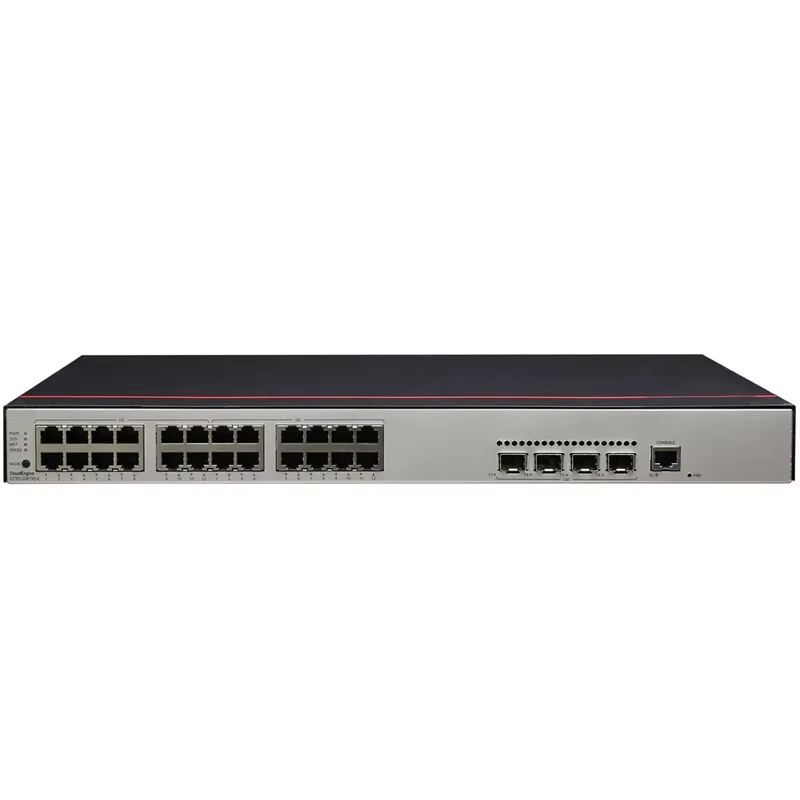

Pictures

S1730S-S24P4S-A1 24 Port POE Switch 98011323 4*GE SFP Switch 0

Specification

Wide [mm]	442.0 mm
Depth [mm]	220.0 mm
Height [mm]	43.6 mm
Chassis height [U]	1
Weight with packaging [kg(lb)]	3.91 kg (8.62 lb)
Weight without packaging [kg(lb)]	2.94 kg (6.48 lb)
Typical power consumption [W]	41.7
Maximum power consumption [W]	- Not providing the PoE function: 53.2 W - 100% PoE loads: 433.2 W (PoE: 380 W)
Typical heat dissipation [BTU/hour]	142.29
Maximum heat dissipation [BTU/hour]	- Not providing the PoE function: 181.52 - 100% PoE loads: 1478.12
Heat dissipation mode	Heat dissipation with fan, intelligent fan speed adjustment
Power supply mode	AC built-in
Rated input voltage [V]	- AC input: 100 V AC to 240 V AC, 50/60 Hz - High-Voltage DC input: 240 V DC
Input voltage range [V]	- AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz - High-Voltage DC input: 190 V DC to 290 V DC
Maximum input current [A]	6 A
Number of card slots	0
Number of power slots	0
Memory	512 MB
Flash memory	512 MB
Redundant power supply	Not supported
Types of fans	Built-in
Noise at normal temperature (acoustic pressure) [dB(A)]	38.2
Noise at normal temperature (acoustic power) [dB(A)]	50
Airflow direction	Air intake from left and front, air exhaustion from right
Long-term operating temperature [°C(°F)]	-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.)
Short-term operating temperature [°C(°F)]	-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.)
Storage temperature [°C(°F)]	-40°C to +70°C (-40°F to +158°F)
Restriction on the operating temperature variation rate	When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). The equipment can operate beyond the normal operating temperature range for a short-term period, but the following conditions must be met: - The equipment operates at a temperature of over 50°C (122°F) consecutively for at most 96 hours in one year. - The equipment operates at a temperature of over 50°C (122°F) for a total of no more than 360 hours in one year. - The equipment operates at a temperature of over 50°C (122°F) for no more in 15 times in one year. The equipment may be damaged or experience unexpected exceptions if any of the preceding limits is exceeded. The equipment cannot start when the temperature is lower than 0°C (32°F). The maximum distance of optical modules used in these conditions cannot exceed 10 km.
Long-term operating relative humidity [RH]	5% to 95%, noncondensing
Long-term operating altitude [m(ft.)]	0-5000 m (0-16404 ft.)
Storage altitude [m(ft.)]	0-5000 m (0-16404 ft.)
MTBF [year]	55.72
MTTR [hour]	2
Availability	>0.99999
Maximum number of physical ports on the entire device	28
Maximum number of 100GE ports	0
Maximum number of 40GE ports	0
Maximum number of 25GE ports	0
Maximum number of 10GE ports	0
Maximum number of GE ports	28
Maximum number of FE ports	28
1000M electrical interface	24
1000M optical interface	4
USB	Not supported
Console port	RJ45
Eth Management port	Not supported
Service port surge protection	Common mode: ±7 kV
Power supply surge protection	±6 kV in differential mode, ±6 kV in common mode
RPS input	Not supported
PoE	Supported
PoE power supply	Supported

S1730S-S24P4S-A1 24 Port POE Switch 98011323 4*GE SFP Switch 1
