| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | AC6800V |
AC6800V 02312DUF (6*GE RJ45,6*10GE SFP+) WLAN Access Controllers
Description
Huawei AC6800V is an X86-based access controller (AC) that stands out with its large capacity and high performance. It can manage up to 10,240 access points (APs). This AC is highly reliable and easy to install and maintain. It also supports flexible networking and energy conservation.
The AC6800V has the following features:
| Item | Details |
|---|---|
| Description | Hardware Host for the AC6800V (6*GE RJ45,6*10GE SFP+,Dual Slots of power,With Power Module) |
| Part Number | 02312DUF |
| Model | AC6800V |
| First supported version | V200R010C00 |

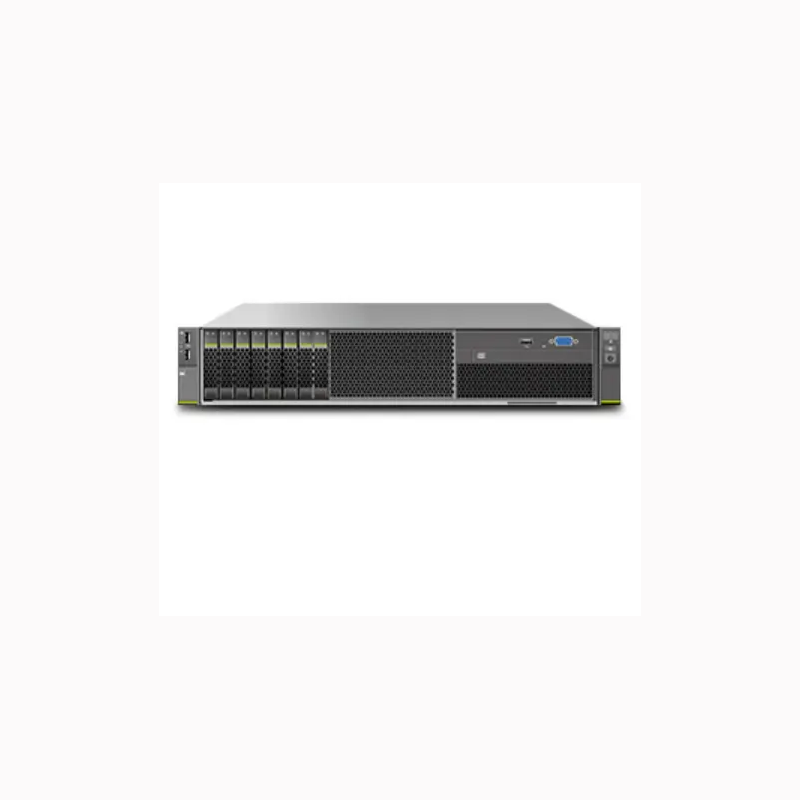

Pictures
Specification
| Item | Specification |
|---|---|
| Installation Type | Rack |
| Dimensions without packaging (H x W x D) [mm(in.)] | 86.1 mm x 447 mm x 708 mm (3.39 in. x 17.60 in. x 27.87 in.) |
| Weight without packaging [kg(lb)] | 21 kg (46.30 lb) |
| Storage | SSD 150 GB x 2 ; RAID x 1 |
| Console port | RJ45 |
| Maximum power consumption [W] | 350 W |
| Maximum heat dissipation [BTU/hour] | 1194.1 BTU/hour |
| Power supply mode | Pluggable power supply |
| Input voltage range [V] | 90 V to 264 V |
| Service port surge protection | 2 kV in common mode |
| Types of fans | Built-in |
| Maximum number of physical ports on the entire device | 6 x 10GE (SFP+) + 6 x GE |
| Long-term operating temperature [°C(°F)] | 0°C to 45°C (32°F to 113°F) (From 1800 m to 3048 m [5905.51 ft. to 10000.00 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 220 m [721.78 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 8% RH to 90% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | –60 m to +3048 m (–196.85 ft to +10000.00 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Noise at normal temperature (acoustic power) [dB(A)] | ≤ 55 dBA |
| Ground | Grounding |
| USB | Not supported |
| MTBF [year] | 26.3 year |
| MTTR [hour] | 2 hour |
