| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | AC6003 |

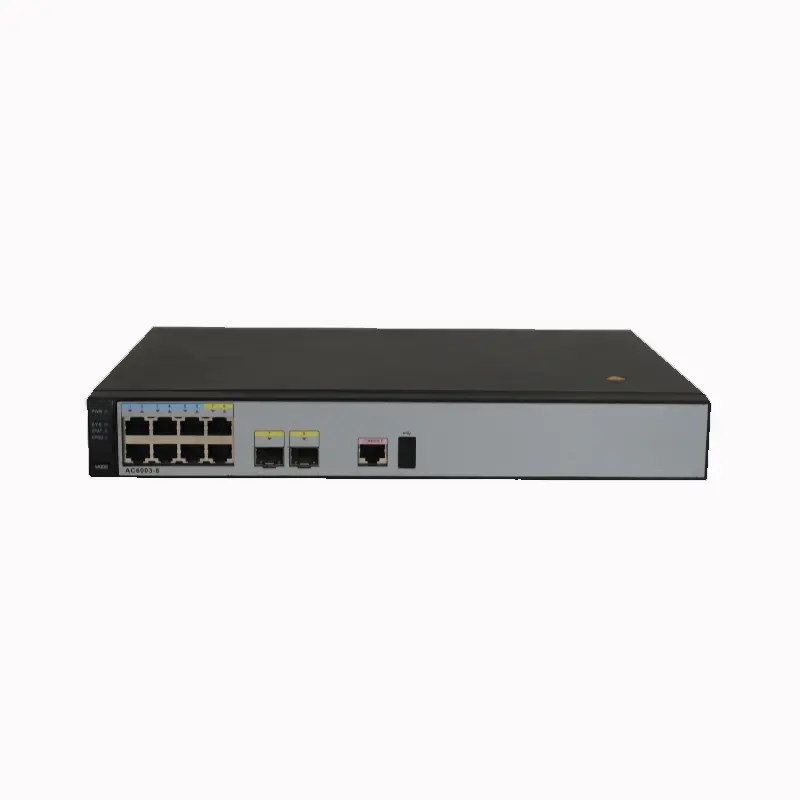

AC6003 02350HND 6 X 10/100/1000BASE-T Ethernet Wireless Access Controller
Description
Wireless workplaces have greatly improved communication and collaboration efficiency for enterprises. Furthermore, the latest Wi-Fi 6 and Wi-Fi 7 standards deliver record-high speeds to wireless networks, supporting 4K conferencing and cloud-device synergy in high-concurrency access scenarios. Wireless production environments can improve the operational efficiency of warehousing and manufacturing production lines. Wi-Fi 6 and Wi-Fi 7 networks have offered stable experience to emerging applications such as automated guided vehicles (AGVs), industrial visual quality inspection, and HD wireless backhaul of industrial cameras.
The AC6805 is a high-end wireless Access Controller (AC) for large enterprise campuses, enterprise branches, and school campuses. AC6805 provides management of up to 10240 Access Points (APs) with 120 Gbit/s direct forwarding, offering a high level of scalability to give users flexibility when configuring the number of managed APs
Huawei AirEngine Wi-Fi series products are next-generation wireless network products designed for enterprises' workplaces and production spaces based on Wi-Fi 6 (802.11ax) and Wi-Fi 7 (802.11be). Huawei AirEngine series stands out with a brand-new industrial design and adopts a wide array of innovative technologies. This way, indoor and outdoor wireless networks built using Huawei AirEngine can fully meet requirements of customers across industries, and adapt to ever-changing terminal and application demands in the digital space.
| Item | Details |
|---|---|
| Description | AC6003-8 Bundle(Including AC6003-8,Resource License 8AP,AC power support) |
| Part Number | 02350HND |
| Model | AC6003 |
| First supported version | V200R006C10 |
Pictures
Specification
| Item | Specification |
|---|---|
| Installation Type |
|
| Dimensions without packaging (H x W x D) [mm(in.)] | 43.6 mm x 320 mm x 233.6 mm (1.72 in. x 12.60 in. x 9.20 in.) |
| Weight without packaging [kg(lb)] | 2.9 kg (6.39 lb) |
| Storage | NOR flash 16 MB; SD card 2 GB |
| Console port | RJ45 |
| Maximum power consumption [W] | 25.6 W |
| Maximum heat dissipation [BTU/hour] | 87.3 BTU/hour |
| Power supply mode | AC built-in |
| Input voltage range [V] | 90 V to 264 V |
| Service port surge protection | 6 kV in common mode |
| Types of fans | Built-in |
| Maximum number of physical ports on the entire device | 6 x GE electrical + 2 x GE combo |
| Long-term operating temperature [°C(°F)] | –5°C to +50°C (23°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum ambient temperature decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.) |
| Storage temperature [°C(°F)] | –40°C to +70°C (–40°F to +158°F) |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH |
| Long-term operating altitude [m(ft.)] | –60 m to +5000 m (–196.85 ft to +16404.20 ft) |
| Atmospheric pressure [kPa] | 53kPa - 106kPa ETSI 300 019-2-3 |
| Noise at normal temperature (acoustic power) [dB(A)] | ≤ 55 dBA |
| Ground | Grounding |
| USB | Not supported |
| MTBF [year] | 68 year |
| MTTR [hour] | 2 hour |
