| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | AR6121E-S |
Description
The AR600 series Enterprise routers deliver unmatched openness, on-demand service provisioning, and easy deployment, and offer cost-effective and easy-to-maintain networks with flexible services, making them ideal for small branches. The AR6100&AR6200&AR6300 series Enterprise routers provide a broad range of options for customers of all sizes across industries to best suit their extensive application scenarios. Featured products include the NetEngine AR6200 and AR6300 series built for headquarters and large branches and the NetEngine AR6100 series ideal for midsize branches.
| Item | Details |
|---|---|
| Description | AR6121EC-S, 2*GE combo WAN, 1*GE(SFP) WAN, 8*GE LAN, 1*GE combo LAN, 2*USB, 2*SIC |
| Part Number | 02354GYU |
| Model | AR6121EC-S |
| First supported version | V300R021C00 |
| Remarks | When configuring cards, ensure that the total power of the configured cards does not exceed 37 W or contact technical support engineers to obtain more suggestions. |

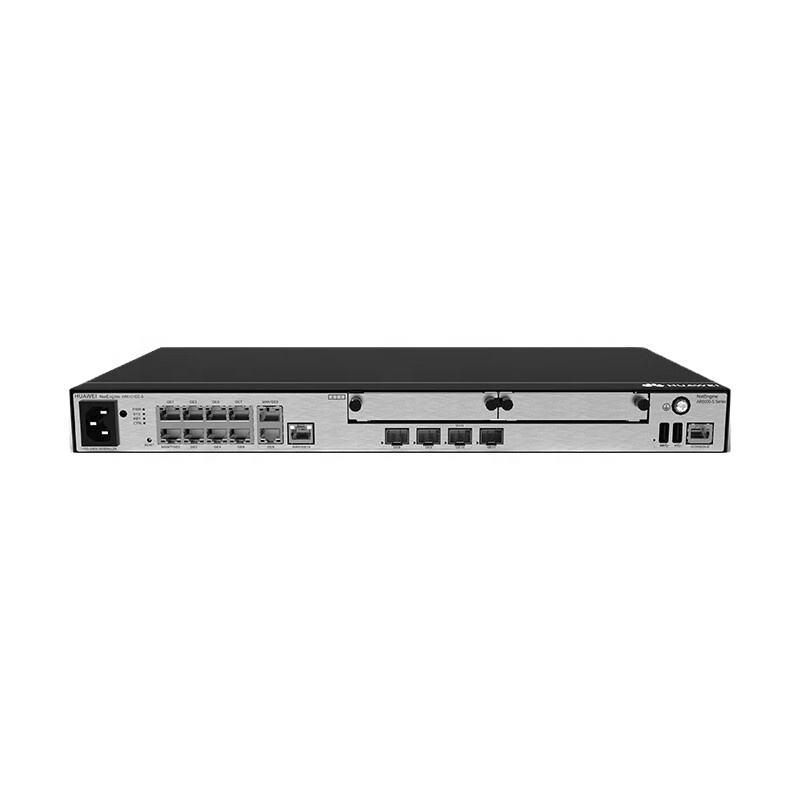

Pictures
Specification
| Item | Specification |
|---|---|
| Installation type |
|
| Chassis height [U] | 1 U |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 90 mm x 570 mm x 390 mm (3.54 in. x 22.44 in. x 15.35 in.) |
| Weight with packaging [kg(lb)] | 4.6 kg (10.12 lb) |
| Weight without packaging [kg(lb)] | 3.2 kg (7.04 lb) |
| CPU | 1.4 GHz, 4 Cores |
| Memory | 4 GB |
| NAND Flash | 1 GB |
| Console port | RJ45 |
| RTC | Supported |
| LAN ports | 8 x GE electrical, 1 x GE combo |
| WAN ports | 1 x GE SFP, 2 x GE combo |
| Number of service board slots | 2 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 2/2 |
| WSIC slots (default/maximum) | 0/1 |
| XSIC slots (default/maximum) | 0/0 |
| Redundant MPUs | Not supported |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 30.05 years |
| MTTR [hours] | 2 hours |
| Availability | 0.9999924012 |
| Typical power consumption [W] | 28 W |
| Maximum power consumption [W] | 33 W |
| Power supply mode | AC built-in |
| Number of power modules | 1 |
| Rated input voltage [V] | 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 2 A |
| Maximum output power [W] | 70 W |
| Redundant power supply | Not supported |
| Types of fans | Built-in |
| Number of fan modules | 1 |
| Heat dissipation mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | 52.3 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
