| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | Netengine AR6300-S |
Description
The AR600 series routers deliver unmatched openness, on-demand service provisioning, and easy deployment, and offer cost-effective and easy-to-maintain networks with flexible services, making them ideal for small branches. The AR6100&AR6200&AR6300 series Enterprise routers provide a broad range of options for customers of all sizes across industries to best suit their extensive application scenarios. Featured products include the NetEngine AR6200 and AR6300 series built for headquarters and large branches and the NetEngine AR6100 series ideal for midsize branches.
| Item | Details |
|---|---|
| Description | Assembling Components,AR6300-S,AR6300-S,AR6300-S,Service and Router Unit 400H,4*SIC,2*WSIC,4*XSIC,350W AC Power |
| Part Number | 02352VEL |
| Model | AR6300-S |
| First supported version | V300R019C00 |
| Remarks |
If an AR6300-S is equipped with the 350 W AC power module, ensure that the total power of cards configured on the AR6300-S does not exceed 102 W or contact technical support personnel for more suggestions. All the indicators seen on the AR6300-S front panel are module indicators. For details about these indicators, see indicator description of the specific module. The AR6300-S system specifications depend on the SRU that is used. |

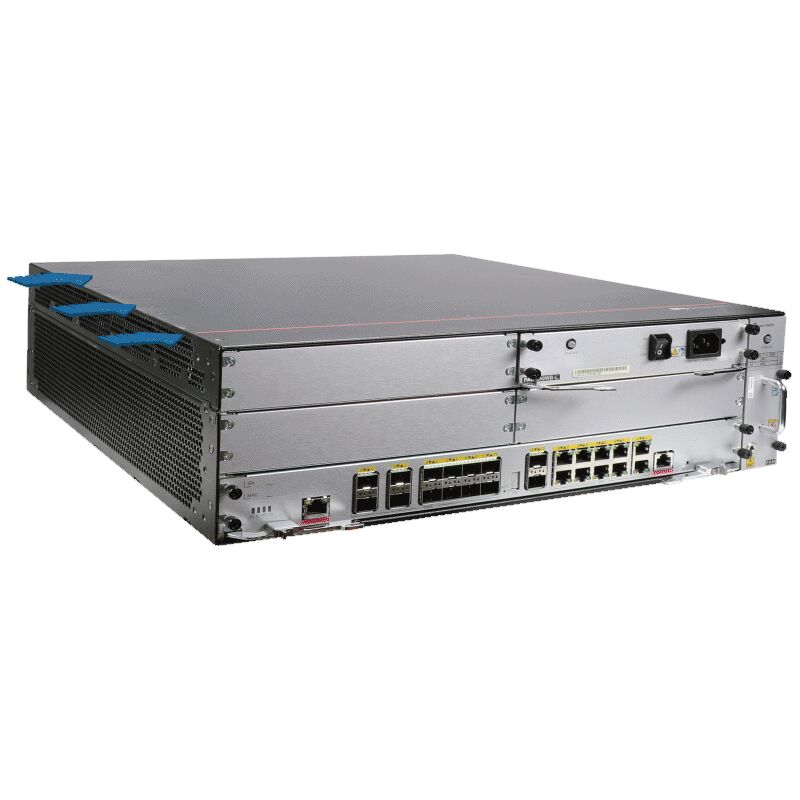

Pictures
Specification
| Item | Specification |
|---|---|
| Installation type | Rack |
| Chassis height [U] | 3 U |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 230 mm x 590 mm x 655 mm (9.06 in. x 23.23 in. x 25.79 in.) |
| Weight with packaging [kg(lb)] | 15.77 kg (34.69 lb) |
| Weight without packaging [kg(lb)] | 12.5 kg (27.56 lb) |
| CPU | 2.2 GHz, 16 cores |
| Memory | 8 GB |
| NAND Flash | 2 GB |
| Console port | RJ45 |
| WAN ports | 14 x 10GE (SFP+), 8 x GE copper |
| Number of service board slots | 10 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 4/4 |
| WSIC slots (default/maximum) | 2/8 |
| XSIC slots (default/maximum) | 4/4 |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 42.61 years |
| MTTR [hours] | 2 hours |
| Availability | 0.9999962934 |
| Typical power consumption [W] | 126W |
| Maximum power consumption [W] | 164W |
| Power supply mode | Pluggable AC/HVDC and pluggable DC |
| Number of power modules | 2 |
| Rated input voltage [V] | AC rated input voltage range: 100 V to 240 V, 50 Hz/60 Hz |
| Input voltage range [V] | AC maximum input voltage range: 90 V to 264 V, 47 Hz to 63 Hz |
| Maximum input current [A] | 5 A |
| Maximum output power [W] | 350 W |
| Redundant power supply |
|
| Types of fans | Pluggable |
| Number of fan modules | 1 |
| Heat dissipation mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | 66.1 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
