| Place of Origin: | China |
| Brand Name: | Huawei |
| Certification: | CQC |
| Model Number: | NetEngine AR6300K |
Description
The AR600 series routers deliver unmatched openness, on-demand service provisioning, and easy deployment, and offer cost-effective and easy-to-maintain networks with flexible services, making them ideal for small branches. The AR6100&AR6200&AR6300 series Enterprise routers provide a broad range of options for customers of all sizes across industries to best suit their extensive application scenarios. Featured products include the NetEngine AR6200 and AR6300 series built for headquarters and large branches and the NetEngine AR6100 series ideal for midsize branches.
| Item | Details |
|---|---|
| Description | AR6300K integrated chassis, 2*SRU slot, 4*SIC slot, 2*WSIC slot, 4*XSIC slot, 2*power slot |
| Part Number | 02116206 |
| Model | AR6300K |
| First supported version | V300R019C11 |
| Remarks |
If an AR6300K is equipped with the 350 W AC power module or 350 W DC power module, ensure that the total power of cards configured on the AR6300K does not exceed 102 W or contact technical support personnel for more suggestions. All the indicators seen on the AR6300K front panel are module indicators. For details about these indicators, see indicator description of the specific module. The AR6300K system specifications depend on the SRU that is used. |

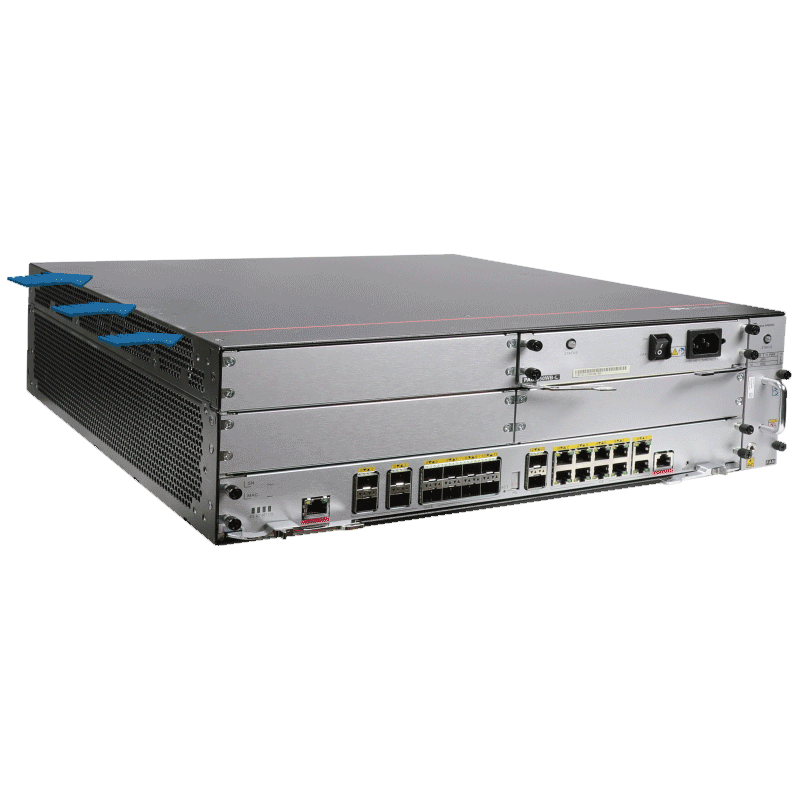

Pictures
Specification
| Item | Specification |
|---|---|
| Installation type | Rack |
| Chassis height [U] | 3 U |
| Dimensions without packaging (H x W x D) [mm(in.)] |
|
| Dimensions with packaging (H x W x D) [mm(in.)] | 230 mm x 590 mm x 655 mm (9.06 in. x 23.23 in. x 25.79 in.) |
| Weight with packaging [kg(lb)] | 14.27 kg (31.45 lb) |
| Weight without packaging [kg(lb)] | 11 kg (24.25 lb) |
| Number of service board slots | 10 |
| MIC slots (default/maximum) | 0/0 |
| SIC slots (default/maximum) | 4/4 |
| WSIC slots (default/maximum) | 2/8 |
| XSIC slots (default/maximum) | 4/4 |
| Redundant MPUs | 1:1 |
| RPS input | Not supported |
| PoE | Not supported |
| IP rating | IP20 |
| MTBF [years] | 42.61 years |
| MTTR [hours] | 2 hours |
| Availability | 0.9999962934 |
| Power supply mode | Pluggable AC/HVDC and pluggable DC |
| Number of power modules | 2 |
| Rated input voltage [V] |
|
| Input voltage range [V] |
|
| Maximum input current [A] | Depending on the power modules that is used |
| Maximum output power [W] | Depending on the power modules that is used |
| Redundant power supply |
|
| Types of fans | Pluggable |
| Number of fan modules | 1 |
| Heat dissipation mode | Air cooling |
| Airflow | Left-to-right airflow |
| Noise at normal temperature (acoustic power) [dB(A)] | 66.1 dB(A) |
| Long-term operating temperature [°C(°F)] |
0°C to 45°C (32°F to 113°F) NOTE:
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). |
| Long-term operating relative humidity [RH] | 5% RH to 95% RH, non-condensing |
| Long-term operating altitude [m(ft.)] | < 5000 m (16404.2 ft.) |
| Storage temperature [°C(°F)] | -40°C to +70°C (-40°F to +158°F) |
| Overtemperature alarm | Supported |
