480Mpps S6720-32X-SI-32S-AC 98010695 32*10GE SFP+ Huawei Enterprise Switch

480Mpps S6720-32X-SI-32S-AC 98010695 32*10GE SFP+ Huawei Enterprise Switch

Product Details:
Place of Origin: China
Brand Name: Huawei
Certification: CQC
Model Number: S6720-32X-SI-32S-AC
Detail Information
Place of Origin:
China
Brand Name:
Huawei
Certification:
CQC
Model Number:
S6720-32X-SI-32S-AC
Product Name:
Huawei Enterprise Switch
Part Number:
98010695
Description:
32*10GE SFP+ Ports
PoE:
Not Supported
Packet Forwarding Rate:
480Mpps
Backplane Bandwidth:
2.56Tbps/23.04Tbps
Highlight:

High Light

Highlight:

480Mpps S6720-32X-SI-32S-AC

,

SFP+ Huawei Enterprise Switch

,

32*10GE Huawei Enterprise Switch

Trading Information
Minimum Order Quantity:
1 unit
Price:
1300-1502 USD
Packaging Details:
Original brand carton
Delivery Time:
7 work days
Payment Terms:
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:
1000 units
Product Description

S6720-32X-SI-32S-AC 98010695 32*10GE SFP+ ports Huawei Enterprise Switch



Description


S6720-32X-SI-32S-AC is Huawei Enterprise Switch , belonging to the S6720 series. It is mainly targeted at enterprise campus network and data center access scenarios and adopts an AC power supply mode.
This switch is equipped with 32 10G SFP+ optical interfaces, supporting adaptive rates from gigabit to 10G, with a backplane bandwidth of 2.56Tbps/23.04Tbps and a packet forwarding rate of 480Mpps. The hardware adopts a non-modular design, supports intelligent stacking (iStack) technology to expand port capacity, integrates intelligent operation and maintenance functions such as SNMP and WEB network management, and can perform fault diagnosis and traffic analysis



Pictures

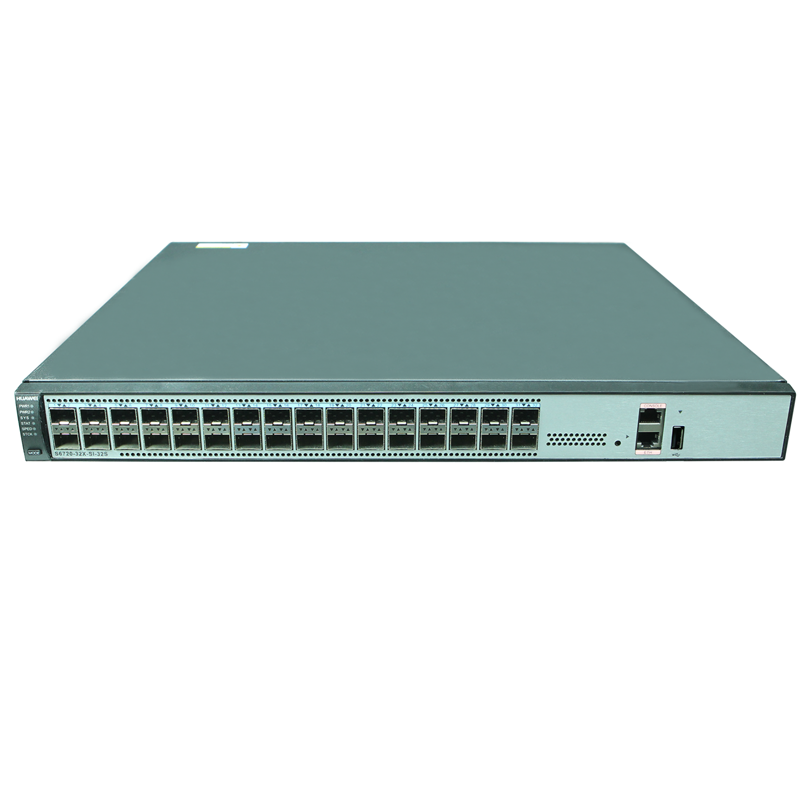

480Mpps S6720-32X-SI-32S-AC 98010695 32*10GE SFP+ Huawei Enterprise Switch 0



Specification




Item

Description

Memory (RAM)

1 GB

Flash

512 MB in total. To view the available flash memory size, run the display version command.

Mean time between failures (MTBF)

46.7 years

Mean time to repair (MTTR)

2 hours

Availability

> 0.99999

Service port surge protection

NA

Power supply surge protection

  • Using AC power modules: ±6 kV in differential mode, ±6 kV in common mode
  • Using DC power modules: ±1 kV in differential mode, ±2 kV in common mode

Dimensions (H x W x D)

  • Basic dimensions (excluding the parts protruding from the body): 44.4 mm x 442.0 mm x 425.0 mm (1.75 in. x 17.4 in. x 16.73 in.)
  • Maximum dimensions (the depth is the distance from ports on the front panel to the handle on the rear panel): 44.4 mm x 442.0 mm x 451.3 mm (1.75 in. x 17.4 in. x 17.77 in.)

Weight (including package)

8.9 kg (19.62 lb)

Stack ports

Any 10GE SFP+ ports (a maximum of 16 physical ports)

RTC

Supported

RPS

Not supported

PoE

Not supported

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

-48 V DC to -60 V DC

Maximum voltage range

90 V AC to 264 V AC, 47 Hz to 63 Hz

-36 V DC to -72 V DC

Maximum power consumption (100% throughput, full speed of fans)

104.6 W

Typical power consumption (30% of traffic load, tested according to ATIS standard)

72.6 W

Operating temperature

0°C to 45°C (32°F to 113°F) at an altitude of 0-1800 m (0-5906 ft.)

NOTE:

When the altitude is 1800-5000 m (5906-16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.).

Storage temperature

-40°C to +70°C (-40°F to +158°F)

Noise under normal temperature (27°C, sound power)

< 60.5 dB(A)

Relative humidity

5% to 95%, noncondensing

Operating altitude

  • AC power modules configured: 0-5000 m (0-16404 ft.)
  • DC power modules configured: 0-2000 m (0-6562 ft.)

Certification

  • EMC certification
  • Safety certification
  • Manufacturing certification

Part number

98010695
